2014 hot sell Plastic and Granules vertical plastic Mixer/plastic granulate mixer

Specifications

Supply upright plastic mixer; High-speed plastic mixer; Horizontal color mixer; Rotary mixer.

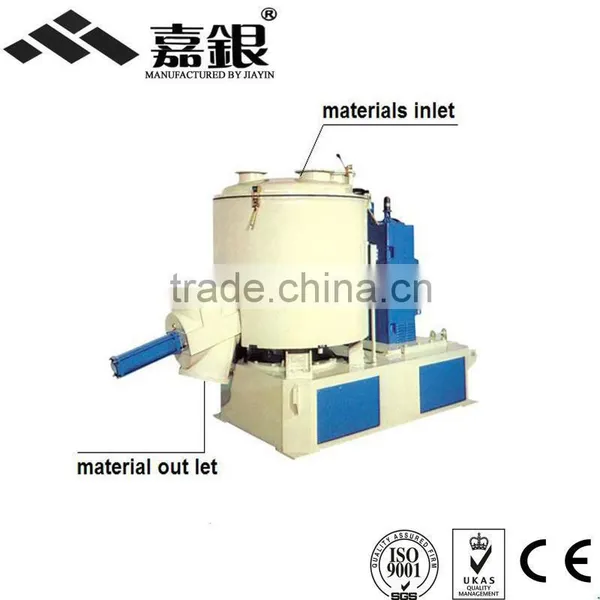

High-Speed Mixer:

Features:

SHR series mixers are mainly applied in mixing PVC and all kinds of plastic materialsmixing, colouring, drying and etc., in the plastics, rubber, Food-stuff and daily chemical industry and so on.



Specifications:



Data Modle	Capacity (L)	Effective Capacity(L)	Motor (KW)	Main shaft speed(rpm)	Heating Method	Discharge Method
SHR-5A	5	3	2.2	600-3000	Self-friction	Hand work
SHR-10A	10	7	3	600-3000
SHR-50A	50	35	7	750/1500	Electricity	Air-operated
SHR-100A	100	75	7/11	650/1300
SHR-200A	200	150	14/22	475/950
SHR-300A	300	225	30/42	475/950
SHR-500A	500	375	47/67	430/860
SHR-800A	800	600	60/90	370/740
SHR-1000A	1000	750	110/160	325/650















 Other type Color Mixer

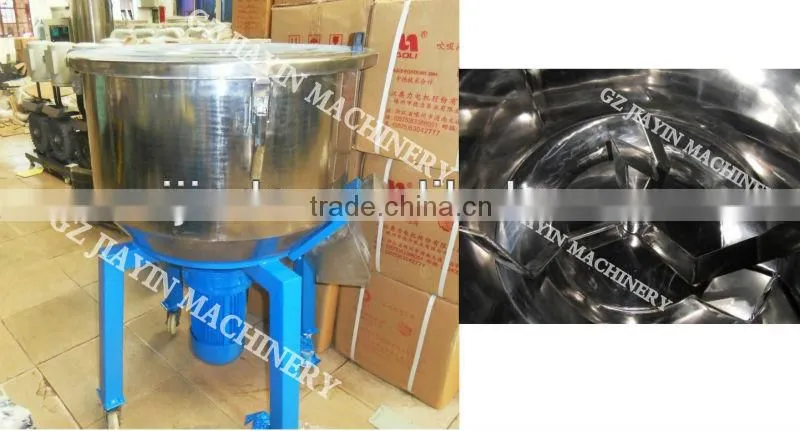

Vertical  Color Mixer



Features:

1,Mixing blades and the tank are made of stainless steel;

2,blades may be disassembled for maintenance;

3,Enclosed-type mixing,featuring large capacity,

easy operation and high safety;

4,Directly driven by motor,not easy to slide,fast

mixing speed and high efficiency;



Technical Data:



Model	Motor Power(HP)	Mixing Capacity(kgs)	Tank Diameter(mm)	Dimensions (mm)	Gross Weight(kg)
MM-50VM	2	50	630	760×760×1090	130
MM-100VM	5	100	810	830×830×1220	180
MM-150VM	7.5	150	900	1090×1150×1340	280
MM-200VM	7.5	200	900	1090×1150×1390	320









Rotary Color Mixer

Features:
         Applicable to mixing and coloring plastic particles, power material and color power as well as new and used materials;
         Stainless steel mixing tank with smooth surface, no reretention of color power, easy to clean and change color;
         Provided with safety installation to ensure operator's safety;
         Provided with0~30 minutes automatic-off unit.



    Specifications:



Model	Power (HP)	Mixing Capacity(kg)	Speed(r/min)	Overall Dimensions(mm)	Weight (kg)
MM-50TM	0.55	50	40	890× 900× 1540	60
MM-100TM	0.75	100	40	1100× 900× 1560	80
MM-150TM	2.2	200	40	1980× 1200× 2080	170
MM-200TM	3	300	40	1980× 1200× 2280	350

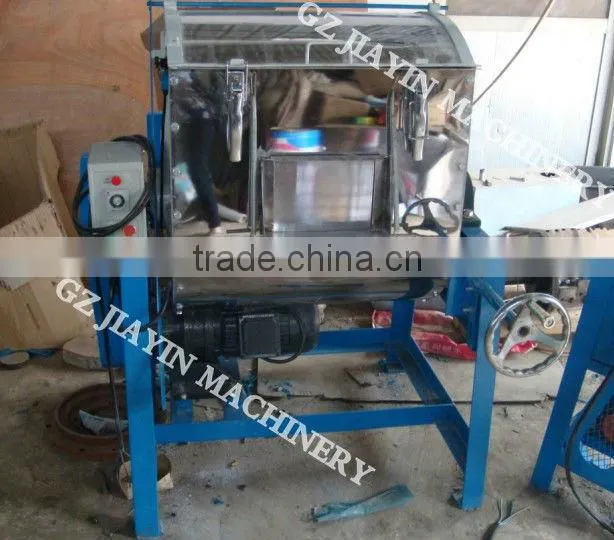

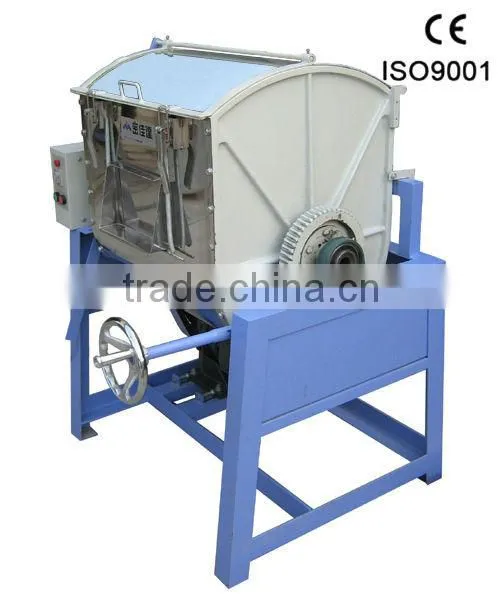

Horizontal Color Mixer





 Features:

               Mixing blades and the tank are made of stainless steel; Easy to clean;
           Provided with door safety switch to ensure operatinal safety;
           Strong agitating force realizing uniform mixing in 3~5 minutes;
           Mixing tank subject to 0~100° Inclination, convenient for discharging;
           Provided with 0~30 minutes automatic-off unit.



    Specifications:



Model	MM-100HM	MM-150HM	MM-200HM
Power(HP)	3	4	5
Capacity(kg)	100	150	200
Revolution(r/mm)	65	65	65
Dimensions(mm)	1100× 850× 1300	1400× 850× 1300	1580× 1000× 1400
Gross Weight(kg)	285	358	530









small type







big type
