Specifications
Supply upright plastic mixer;High-speed plastic mixer;
Horizontal color mixer;
Rotary mixer.

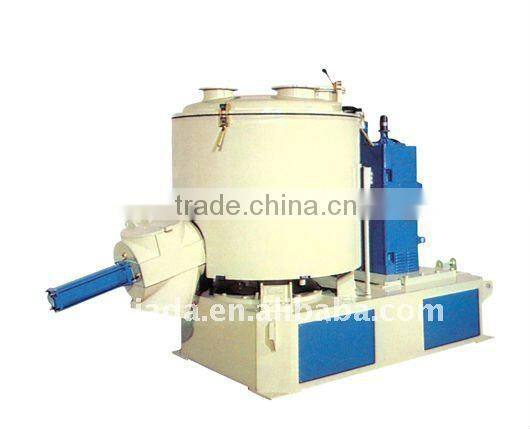

High-Speed Mixer:
Features:
SHR series mixers are mainly applied in mixing PVC and all kinds of plastic materialsmixing, colouring, drying and etc., in the plastics, rubber, Food-stuff and daily chemical industry and so on.
Specifications:
Data |
Capacity |
Effective Capacity(L) |
Motor |
Main shaft speed(rpm) |
Heating Method |
Discharge Method |
|
SHR-5A |
5 |
3 |
2.2 |
600-3000 |
Self-friction |
Hand work |
|
SHR-10A |
10 |
7 |
3 |
600-3000 |
|
|
|
SHR-50A |
50 |
35 |
7 |
750/1500 |
Electricity |
Air-operated |
|
SHR-100A |
100 |
75 |
7/11 |
650/1300 |
|
|
|
SHR-200A |
200 |
150 |
14/22 |
475/950 |
|
|
|
SHR-300A |
300 |
225 |
30/42 |
475/950 |
|
|
|
SHR-500A |
500 |
375 |
47/67 |
430/860 |
|
|
|
SHR-800A |
800 |
600 |
60/90 |
370/740 |
|
|
|
SHR-1000A |
1000 |
750 |
110/160 |
325/650 |
|
|
|
Other type Color Mixer
Vertical Color Mixer
Features:
1,Mixing blades and the tank are made of stainless steel;
2,blades may be disassembled for maintenance;
3,Enclosed-type mixing,featuring large capacity,
easy operation and high safety;
4,Directly driven by motor,not easy to slide,fast
mixing speed and high efficiency;
Technical Data:
Model |
Motor Power(HP) |
Mixing Capacity(kgs) |
Tank Diameter(mm) |
Dimensions (mm) |
Gross Weight(kg) |
MM-50VM |
2 |
50 |
630 |
760×760×1090 |
130 |
MM-100VM |
5 |
100 |
810 |
830×830×1220 |
180 |
MM-150VM |
7.5 |
150 |
900 |
1090×1150×1340 |
280 |
MM-200VM |
7.5 |
200 |
900 |
1090×1150×1390 |
320 |
Rotary Color Mixer
Features:
Applicable to mixing and coloring plastic particles, power material and color power as well as new and used materials;
Stainless steel mixing tank with smooth surface, no reretention of color power, easy to clean and change color;
Provided with safety installation to ensure operator's safety;
Provided with0~30 minutes automatic-off unit.
Specifications:
Model |
Power (HP) |
Mixing Capacity(kg) |
Speed(r/min) |
Overall Dimensions(mm) |
Weight (kg) |
MM-50TM |
0.55 |
50 |
40 |
890× 900× 1540 |
60 |
MM-100TM |
0.75 |
100 |
40 |
1100× 900× 1560 |
80 |
MM-150TM |
2.2 |
200 |
40 |
1980× 1200× 2080 |
170 |
MM-200TM |
3 |
300 |
40 |
1980× 1200× 2280 |
350 |

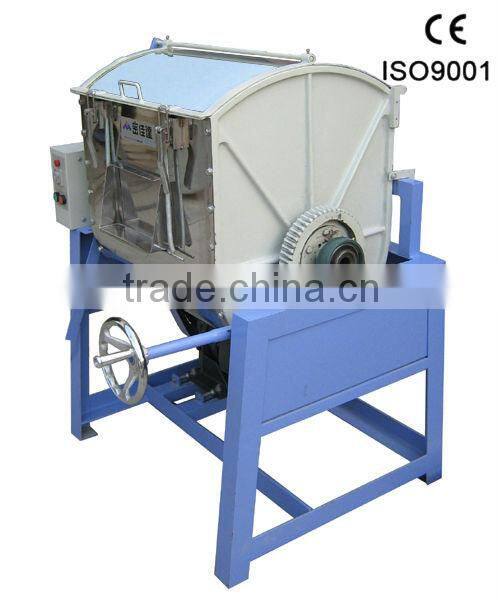

Horizontal Color Mixer
Features:
Mixing blades and the tank are made of stainless steel; Easy to clean;
Provided with door safety switch to ensure operatinal safety;
Strong agitating force realizing uniform mixing in 3~5 minutes;
Mixing tank subject to 0~100° Inclination, convenient for discharging;
Provided with 0~30 minutes automatic-off unit.
Specifications:
Model |
MM-100HM |
MM-150HM |
MM-200HM |
Power(HP) |
3 |
4 |
5 |
Capacity(kg) |
100 |
150 |
200 |
Revolution(r/mm) |
65 |
65 |
65 |
Dimensions(mm) |
1100× 850× 1300 |
1400× 850× 1300 |
1580× 1000× 1400 |
Gross Weight(kg) |
285 |
358 |
530 |
small type
big type
1.Outside package: Standard export wooden cases
2 .Inner package:Stretch film
GuangzhouJiayin Machinery Pte.,Ltd.(Primitive name:Guangzhou Mikasa Machinery Pte., Ltd) is one of the pioneers in auxiliary plastic forming equipment industry in China,specializing in research,design,manufacture and distribution of and service for such equipment with the technology andexperience accumulated about 30 years.
Our products include crushers,grinders,rubber cutters,dryers,dehumidifiers,suction machines,color mixers,mould temperature controllers,water chillers,color master batch propor.wire recycling machine..more
How about the quality of your product?
- Our products manufactured strictly according to national and international standard.
- We take a test on every product before delivery.
How about price of this product?
- We can give the lowest price than market one.
- We do quotation as soon as possible for any customer.
- Discount can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is available to service machinery overseas.
•The guarantee period of our product is one year.(except damageable and artificial).
