Help CenterHorizontal Plastic Mixer/ Drying Color Mixer/ Horizontal Batch Mixer
Related Products
-
Horizontal Drying Mixer for Plastic/ Horizontal Mixer for BatchNegotiableMOQ: 1 Set -
Horizontal Plastic Granules Mixer/ Plastic Powder Mixer MachineNegotiableMOQ: 1 Set
-
Plastic Granules Horizontal Mixer Machine/ Plastic Powder Mixing MachineNegotiableMOQ: 1 Set
-
Automatic Vertical Plastic Mixer/Plastic Color Mixer Machine Quality ChoiceUS$ 580.00 - 850.00MOQ: 1 Set
-
Automatic Plastic Rotary Mixer/Color Mixer Machine/Plastic Powder MixerUS$ 650.00 - 910.00MOQ: 1 Set
Specifications
Horizontal Plastic Mixer/ Drying Color Mixer/ Horizontal Batch Mixer:1.stainless steel;
2.big capacity for granules & powder.

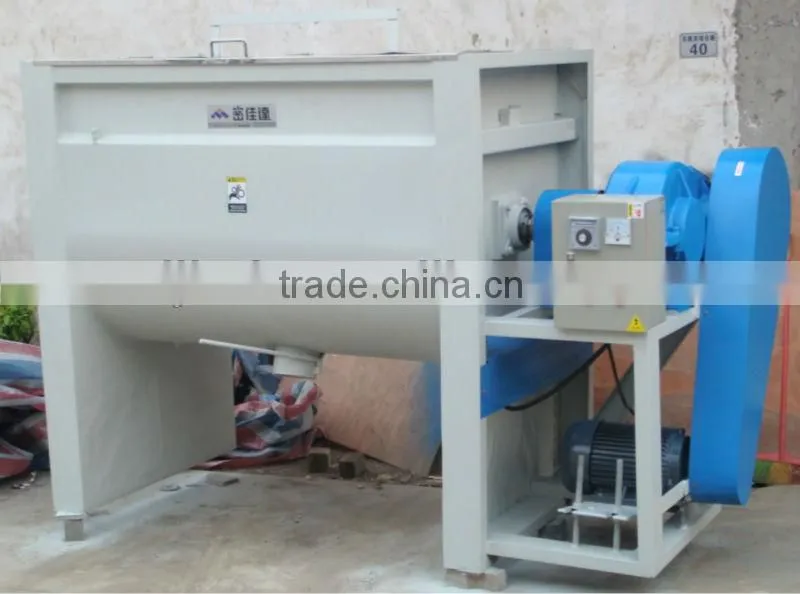

Horizontal Plastic Mixer/ Drying Color Mixer/ Horizontal Batch Mixer:
Horizontal Mixer / Horizontal Drying Mixer:
Features:
1. stainless hopper and blade, preventing erosion, easy clean.
2. oblique tooth reducer, large torque, long life.
3. special designed protective door, easy maintenance.
4. double-way S-style screw blade
5. timer(0-30 minute) can be fixed at ramdom.
6.Custom-made dryer mixer(heat oil)
specifications:
model |
motor power |
mixing capacity |
rotating speed(r/min) |
electric heater |
Dimensions (mm) |
HYP-200 |
3KW |
200KG |
23 |
6.5KW |
1900×880×1500 |
HYP-300 |
3KW |
200KG |
23 |
6.5KW |
2000×1050×1690 |
HYP-400 |
4KW |
400KG |
23 |
7.1KW |
2100×1165×1800 |
HYP-500 |
4KW |
500KG |
23 |
17KW |
2460×1100×1800 |
HYP-600 |
5.5KW |
600KG |
23 |
17KW |
2450×1165×1900 |
HYP-1000 |
11KW |
1000KG |
15 |
20KW |
2900×1360×2100 |
HYP-2000 |
15KW |
2000KG |
15 |
31.5KW |
3300×1660×2850 |
HYP-3000 |
22KW |
3000KG |
15 |
42KW |
3780×1910×2700 |
All specifications above are for reference only due to constant research and improvement,welcome the provision of drawing or samples
Plastic Vertical Mixer
Features:
1. Material tank and propeller blades are made of stainless steel,eliminating rust corrosion and easy to wash;
2. The frame is of framework design,solid and durable;
3. Propeller is wholly processed after welding,with high concentricity and steedy operation;
4. The standing operation allows little space;
5. Mixing in a sealed manner,uniform mixing and no leakage definitely;
6. Small horse-power,large mixing capacity and fast speed to realize a uniform mixing in 3~5 minutes;
7. Oil filler and material discharging device are designed at frame bottom,with durable bearings.
Specifications of vertical mixer:
Model |
MS500 |
MS1000 |
MS2000 |
MS3000 |
MS4000 |
Capacity(L) |
1000 |
2000 |
3000 |
5000 |
6000L |
Motor power |
4HP |
5HP |
7.5HP |
10HP |
10HP |
Overall Dimension |
1200×1540×2540 |
1500×2000×2560 |
1700×2200×3000 |
1900×2400×3050 |
2050x2550x3350 |
Weight(kg) |
300 |
600 |
1000 |
1300 |
1400 |
All specifications above are for reference only due to constant research and improvement,welcome the provision of drawing or samples.

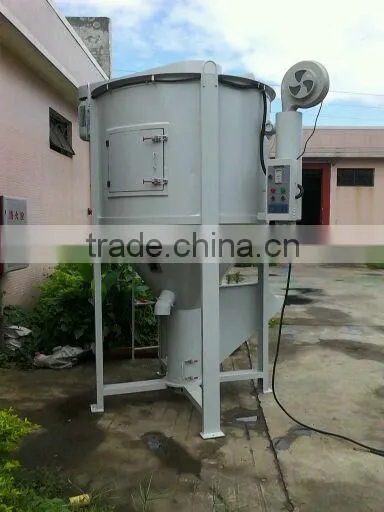

Vertical Drying Mixer
Features:
1. Material tank and propeller blades are made of stainless steel,eliminating rust corrosion and easy to wash;
2. The frame is of framework design,solid and durable;
3. Propeller is wholly processed after welding,with high concentricity and steedy operation;
4. The standing operation allows little space;
5. Mixing in a sealed manner,uniform mixing and no leakage definitely;
6. Small horse-power,large mixing capacity and fast speed to realize a uniform mixing in 3~5 minutes;
7. Oil filler and material discharging device are designed at frame bottom,with durable bearings.
8. Custom-made mixer with drying.
Specifications of vertical mixer:
Model |
MS500 |
MS1000 |
MS2000 |
MS3000 |
MS4000 |
Capacity(L) |
1000 |
2000 |
3000 |
5000 |
6000L |
Motor power |
4HP |
5HP |
7.5HP |
10HP |
10HP |
Electric Heater |
12kw |
12 kw |
12kw |
12 kw |
12kw |
Overall Dimension |
1200×1540×2540 |
1500×2000×2560 |
1700×2200×3000 |
1900×2400×3050 |
2050x2550x3350 |
Weight (kg) |
300 |
600 |
1000 |
1300 |
1400 |
Vertical Color Mixer for granules (Capacity from 50kgs to 300kgs)

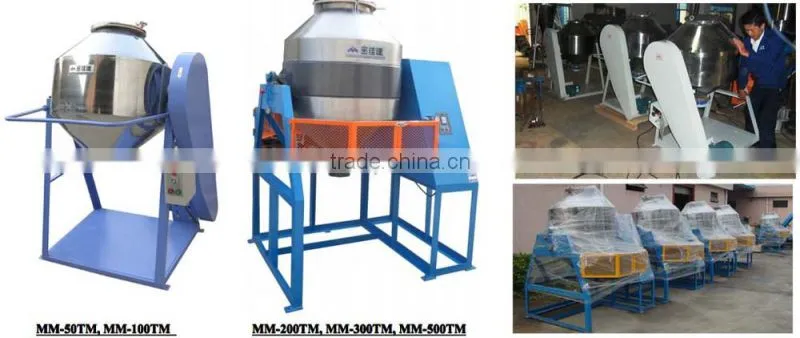

Granules & Powder Rotary Color Mixer (Capacity from 50kgs to 500kgs)

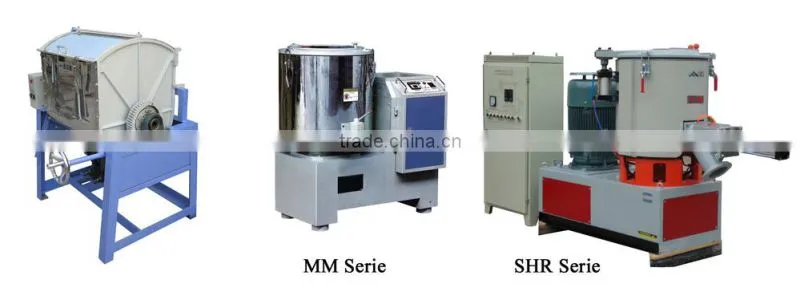

Horizontal Color Mixer (powder & granules) High-speed Mixer (powder & granules)
Granules Vertical Mixer (500kg~5000kg) Granules&Powder Horizontal Color Mixer (200kg~3000kgs)
Guarantee: 1 Year in common using condition (except damageable and aitificial)
Repair: 1) We provide technical guidance all life.
2) Within the guarantee period, we will offer customers spare parts free of charge if spare part is broken and the problems caused by our quality. (The freight is for buyer's account)
Installation:
We provide technical guidance, and also we can offer our technical engineer to buyer's factory for installation If buyers require. Ticket, board and lodging and some related local expenses in Buyer's country for buyer's account.
