WELCOME TO GUANGDONG MAOXIN ELECTRICAL MACHINERY CO., LTD

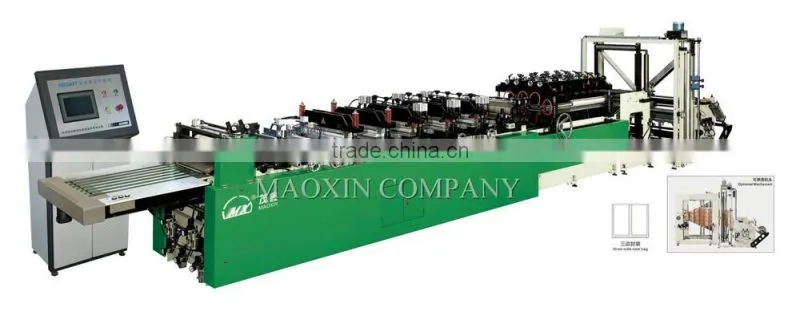

Import Copper knives Three side Seal Bag Making Machine(for food bag)
* Adopts tri-servo motor location system controlled by computer, main motor frequency converter speed control, double photocell eyes automatic correction in material feeding device. * Automatic back feeding by frequency conversion.
* Vertical type folding device , it can automatic feeding the material.
* Equipped with splitting device for multi-row & double -side bags, material –winding conveying device.
* Automatically count the batch and amount, eliminate static and dispose the material edge.
* Multiple conveying, high-position stop, misplacement trailing stop and alarm stop for out of material.
* It features in high precision, fast speed, regular and beautiful bag making, so it is the ideal equipment for manufacture of laminated plastic bag.
Main Technical Parameters:
Model |
MXZD-SB-400 |
MXZD-SB -500 |
MXZD-SB -600 |
Material |
All Kinds Of Laminated Plastic Film |
||
Material size (max) |
840xφ600min |
1040xφ600min |
1240xφ600min |
Film Thickness |
0.04-0.18mm |
0.04-0.18mm |
0.04-0.18mm |
Speed Of Sealing & cutting |
40-180pcs/min |
40-180pcs/min |
40-180pcs/min |
|
Rows Of Bag Making |
1-2 Row |
1-3 Row |
1-4 Row |
Maximum Linear Speed |
40m/min |
40 m/min |
40m/min |
Multiple Conveying |
Over 380mm |
Over 380mm |
Over 380mm |
|
Multiple Conveying |
About28kw |
About36kw |
About45kw |
|
Control System |
PLC Control System OrIndustry Control System |
||
Material Driving Mechanism |
Tri-servomotor Driving System |
||
Material–feeding System |
Automatic feeding the material device ,Kshape rack |
||
Brake Device |
Constant tension encoder,Magnetic-power control system |
||
Temperature Control System |
PID Internal Structure PID OR External Structure PID |
||
