WELCOME TO GUANGDONG MAOXIN ELECTRICAL MACHINERY CO., LTD

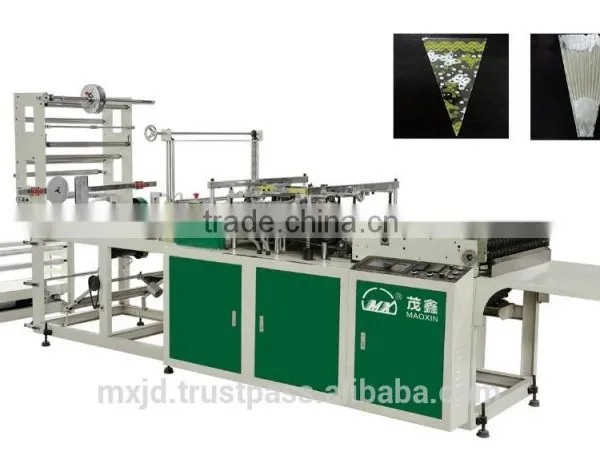

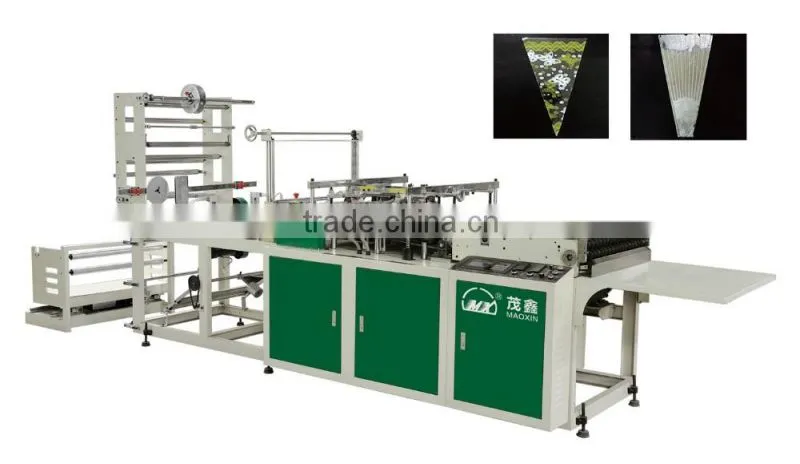

Flower Bag Making Machine
* The machine is suitable for BOPP, OPP, CPP, PE, PP and other thermoplastic film profiled automatic continuous processing eagerly bag,
suitable for the production of garment bags, stationery bags, flower bags, triangular bags and so on.
* Adopts Japanese servo motor control. Taiwan frequency converter speed control. Italian double photocells tracking.
Conveying device use high quality conveyer belt & Taiwan frequency converter speed control.
* It Has automatic control for unwinding, magnetic brake tension control.
* Automatic temperature control with high precision temperature control device, so that the different thickness of the film can ensure a solid seal line appearance.
* Heat sealing knife use high quality thermotolerant steel. Heat resisting and not easy deformed. Sealing bar made of heat resisting silica gel.
* Computer control system with automatic counting, the cumulative number of advance warning, stopage and other functions, automatic control switch.
* Irregular shape blade mold can be replaced according to different sample bags.
Main Technical Parameters:
Model |
MXXH -800 |
Width of bag |
700mm |
Length of bag |
60-700mm |
Machine speed |
30-200pcs/min |
Thickness of film |
0.012-0.20mm |
Tolerance |
±1mm |
Power required |
3.2kw |
Machine weight |
1050kg |
Machine size |
3200x1450x1500 |
