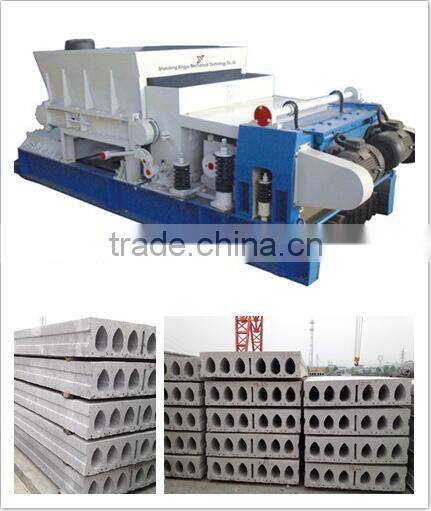

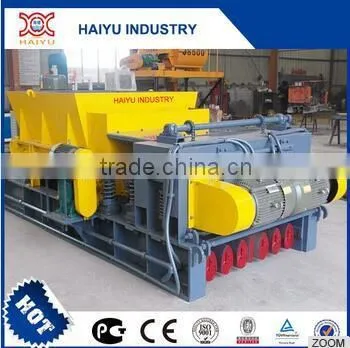

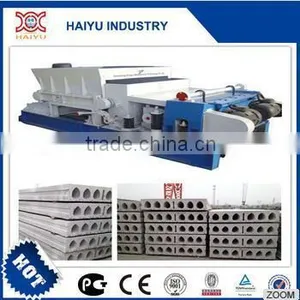

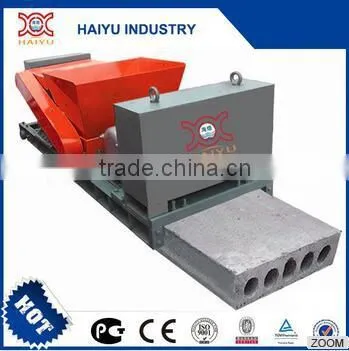

Concrete hollow core slab making machine
Product Description:
Concrete slab making machine works on the long-line table, using the high-strength low- relaxation steel strand as the guide, using the pushing work method to firm the concrete hollow core slab. The slab have the advantages o smooth surface, high-density structure, capable of making construction slabs of 4.2m to 18m. The GLY serious concrete hollow core slab mainly used on the larger bay workshop, school, hospital shopping mall, office building, bulk storage plant etc.
Technical Parameters
| Model | Aperture & diameter | Qty and Diameter of Steel wire | Max span | Total power | Productivity(m/min) | MaxLoad(kn/m2) | Overall dimension(mm) | Weight (kg) |
| GLY180-1200 | 11/ peach | 12/9.5or12.7 | 9 | 18.5 | 1.1-1.3 | 16.16 | 2900X1500x1200 | 3300 |
| GLY200-1200 | 8 /peach | 10/9.5or12.7 | 10 | 22 | 1.1-1.3 | 13.22 | 3700X1550X1550 | 5300 |
| GLY250-1200 | 8/ peach | 10/12.7 | 12.6 | 33 | 1.1-1.3 | 11.1 | 3700X1550X1500 | 6200 |
| GLY300-1200 | 6/peach | 8/12.7 | 15 | 40 | 1.1-1.3 | 10.83 | 3700X1550X1500 | 6900 |
| GLY380-1200 | 8 /rhomb | 8/12.7 | 18 | 39.2 | 0.8-1.0 | 12.27 | 4600X1850X1600 | 7500 |
Features:
1.The concrete product produced by HQJ machine can also be used as roof of houses with the materials of cement, sand and aggregate.
2.HQJ panel machine is a movable producing panel machine which need platform to move during production.
3.Thin steel wire will be placed into panel in advance before production. And this process is easy, not using tensile machine.
4.The machine is applied to the high tech. Extrusion technique can make the panels
more density and surface much smoother.

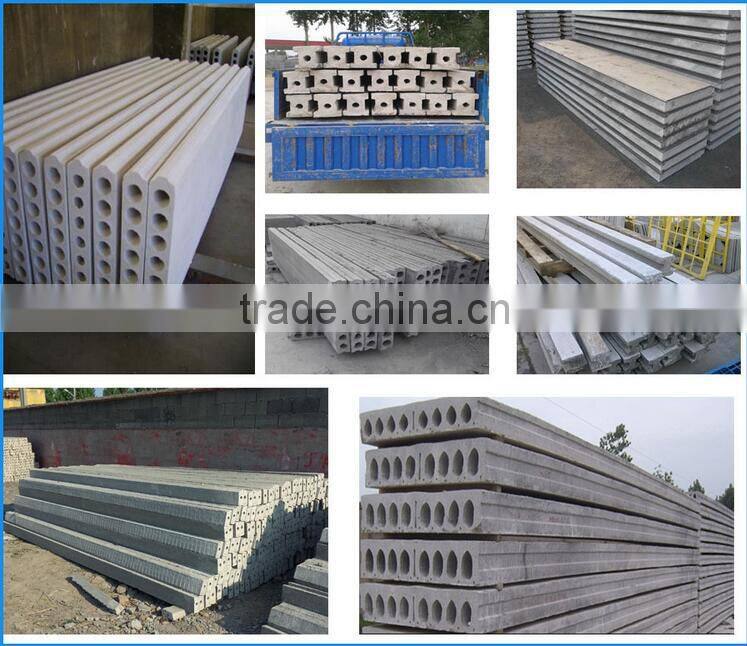

Finished Product:
Company Information:
Qingzhou Haiyu Industry Co., Ltd. is a Chinese supplier and manufacturer producing concrete pole machines/concrete pipe machines/concrete slab machine. The equipment and moulds meet national standards and can be customized according to the standards of the world. We have been in this line for more than 20 years. Our products spread all over Africa, Middle Asia and Southeast Asia and so on.
|
||
Certificate:
Our services:
1.Complete production line supporting machines and all necessary accessories with high performance and good quality;
2. Free Service of plant structure design and layout plan drawings and other necessary construction drawings and guidance of construction work,office, warehouse etc and related drawings according to customers’ requirements.
3.Installation and commissioning of all production machines as well as the workers training.
Payment:
Payment Terms : T/T 30% in advance, 70% before the shippment . L/C100% at sight.
Delivery Time: 35 days after receipt of deposit.
Shipping Methods: ocean freight or air transportation.
Warmly Welcome To Visit Our Factory
