Help CenterPrestressed Concrete Floor Slab Forming Machine for Houses
Related Products
-
Precast Hollow Slab Machine for HousesUS$ 3500.00 - 3500.00MOQ: 1 Set -
Precast Concrete Wall Panel Molding Machine for HousesUS$ 3500.00 - 3500.00MOQ: 1 Set
-
Building Precast Concrete Hollow Core Slab Molding MachineUS$ 3500.00 - 3500.00MOQ: 1 Set
-
Precast Concrete Roof Slab Extrusion Forming MachineUS$ 3500.00 - 3500.00MOQ: 1 Set
-
Precast Concrete Hollow Core Slab Extrusion Forming MachineUS$ 3500.00 - 3500.00MOQ: 1 Set

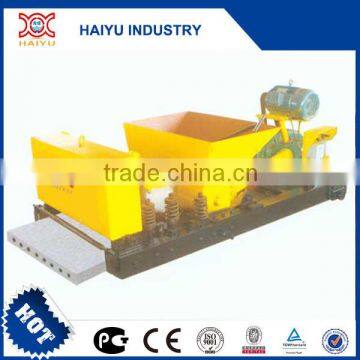

1. Overview
Concrete hollow slab machine works on the long-line table, using the high-strength low- relaxation steel strand as the guide, using the pushing work method to firm the concrete hollow core slab. The slab have the advantages o smooth surface, high-density structure, capable of making construction slabs of 4.2m to 18m. HAIYU serious concrete hollow core slab mainly used on the larger bay workshop, school, hospital shopping mall, office building, bulk storage plant etc.
Features of the precast prestressed concrete slabs
1.Advanced and mature technology of precast pre-stressed concrete slab production line
2.Fast molding speed of the precast pre-stressed concrete slab machine:1.2-1.4m/min
3.Low labor strength and high efficiency of the precast prestressed concrete slab production line
4.Long service life for the precast prestressed concrete slab machines
5.Strong bearing of the precast prestressed concrete slabs
6.Only 3~4 workers needed for the precast prestressed concrete slab production
Available Models of the Precast Prestressed Concrete Slabs Machine
| Model | Power | Dimension | Holes | Voltage | Strand with maximum load | Speed | Weight |
| (kw) | (m) | (v) | (m/h) | (t) | |||
| 200*600 | 10.5 | 2.3*1* 0.9 | 4 | 380 | 12.7mm*5 | 65~70m/h | 2.3 |
| 200*900 | 15 | 2.7*1.15*1 | 5 | 380 | 12.7mm*7 | 60~65m/h | 4 |
| 250*900 | 18.5 | 3.8*1.15*1 | 5 | 380 | 12.7mm*7 | 60~65m/h | 4.5 |
| 150*900 | 15 | 2.6*1.6*1 | 9 | 380 | 12.7mm*12 | 65~70m/h | 3.8 |
| 300*900 | 22 | 3.36*1.15*1.2 | 5 | 380 | 12.7mm*6 | 60~65m/h | 5.5 |
| 300*1200 | 36 | 3.5*1.85*1.2 | 6 | 380 | 12.7mm*12 | 60~65m/h | 6 |
| 150*1200 | 18.5 | 2.9*1.5*1 | 13 | 380 | 9.5mm*14 | 65~70m/h | 3.3 |
| 180*1200 | 18.5 | 2.9*1.5*1.2 | 11 | 380 | 12.7mm*12 | 60~70m/h | 3.3 |
| 200*1200 | 22 | 3.7*1.5*1.5 | 10 | 380 | 12.7mm*10 | 65~70m/h | 5.3 |
| 250*1200 | 33 | 3.7*1.7*1.5 | 8 | 380 | 12.7mm*10 | 60~65m/h | 6.2 |
Production Flow
1. Raw Materials

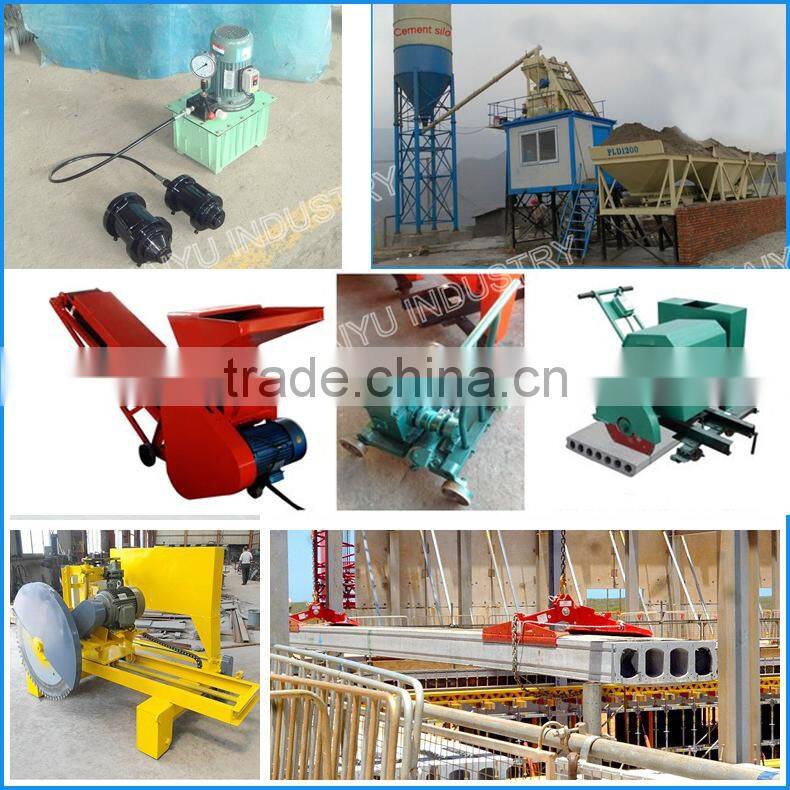

Auxiliary machine

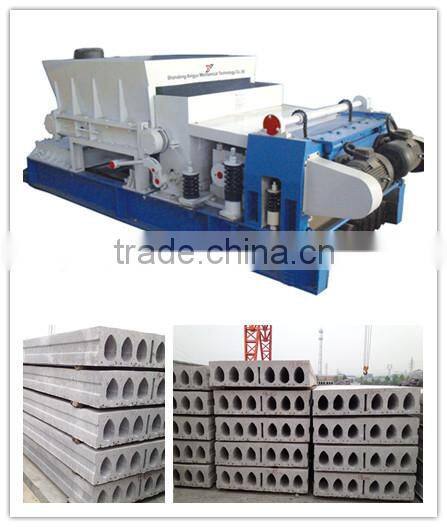

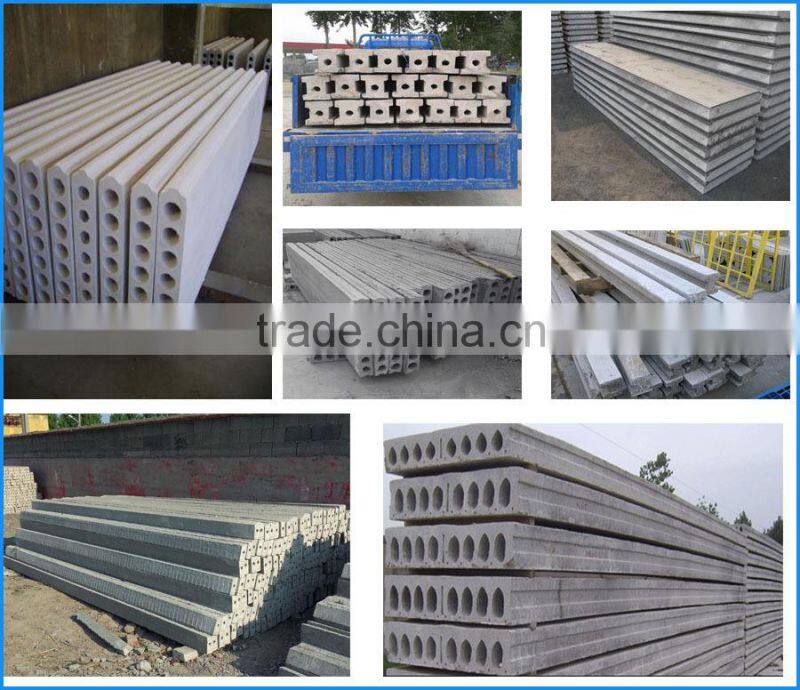

Finished Products

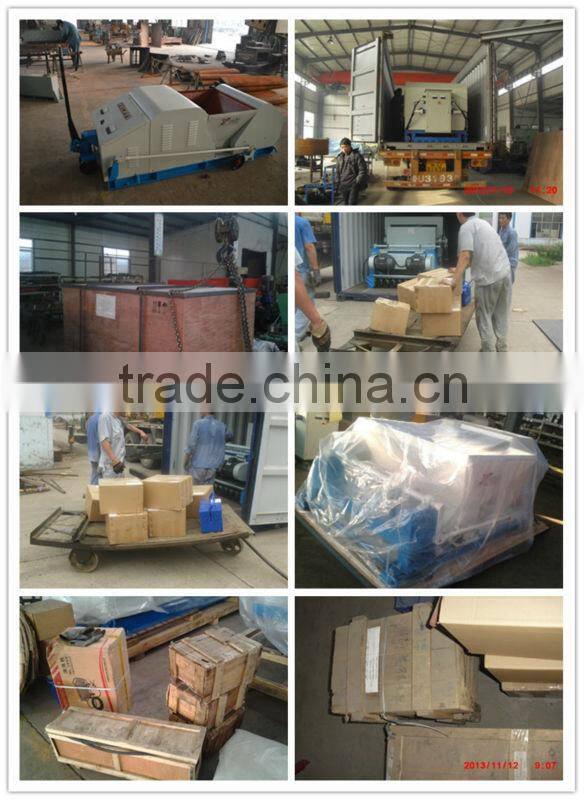

Packaging & Shipping
1.Wire cables are used for fastening the machine on the trailer or inside the container.
2..Machine covered with plastic film.

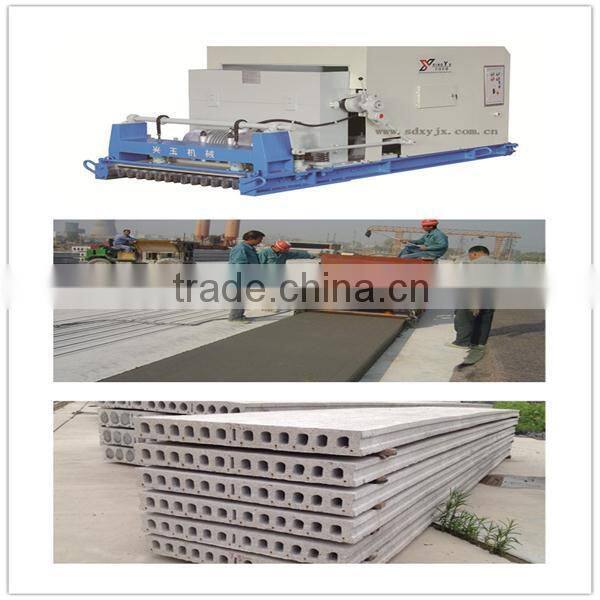

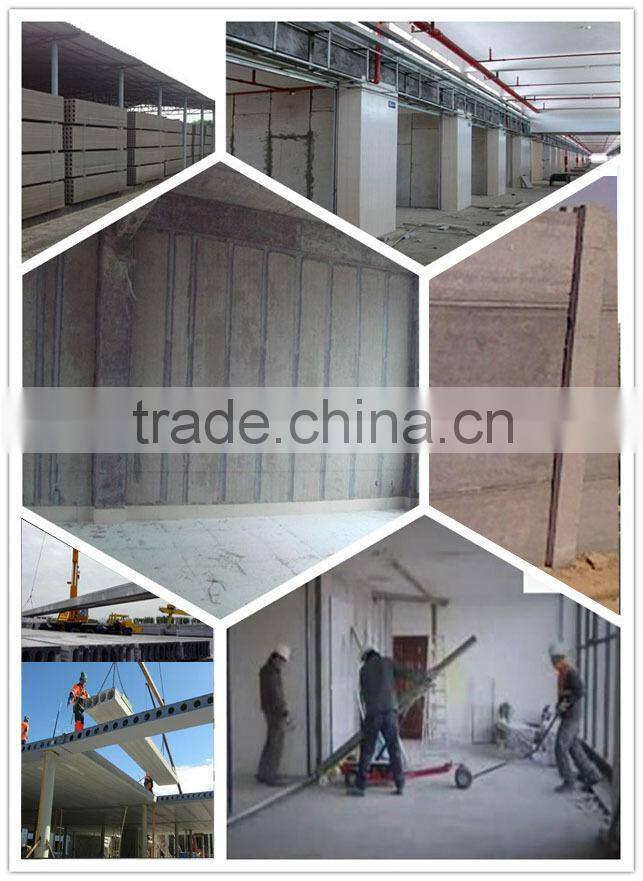

Application
Certification
