Vbrating spiral conveyor
Introduction
Vibrating spiral conveyor can convey all granular,block and powder etc. solid materials(low viscosity).
So it is widely used in military , machinery, chemical industry, metallurgy, mining, rubber,
plastics, light industry, pharmaceuticals, food processing, grain,agriculture and animal etc.
industries as a bulk material lifting equipment.
vibrating spiral conveyor features design simple structure, easy to install and maintenance,
low power consumption, small occupation , saving investment.
Vibrating spiral conveyor conveys material by down-up and up-down two ways. It can be made into
an open or closed structure according to different production processing requirements.
Closed conveyor can effectively prevent harmful gases and dust from spilling. According
to users’ needs, changing the structure, you can transport material at the same time to
accomplish cooling, drying, screening and other processes.

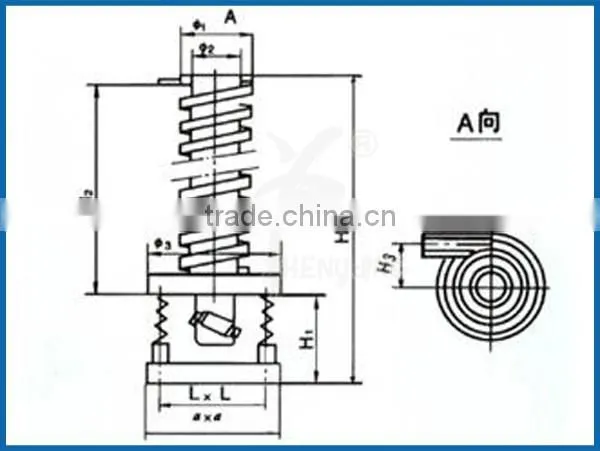

Structure
Detail pictures

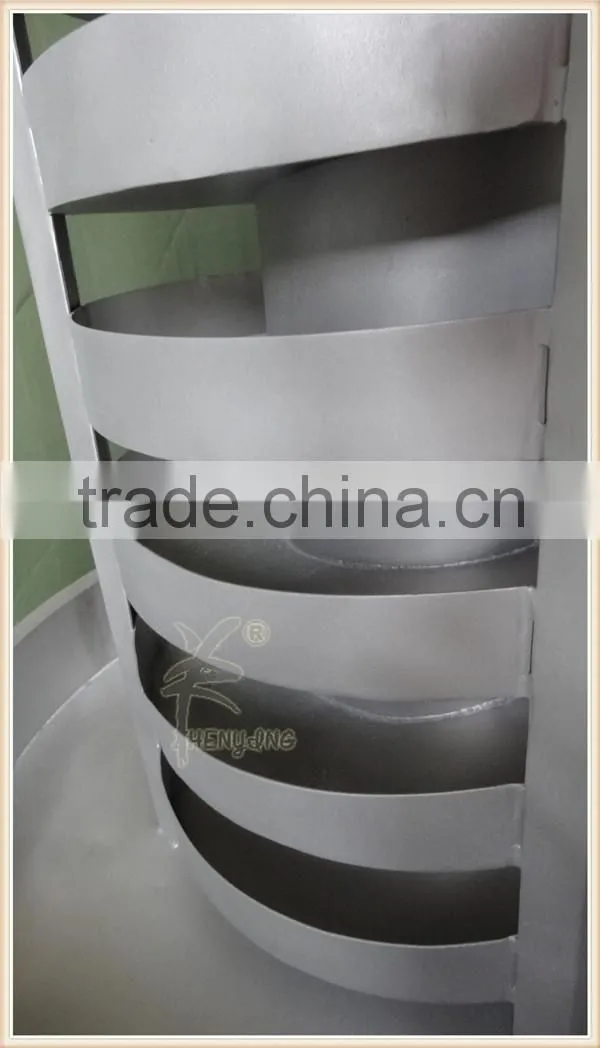

High quality screw

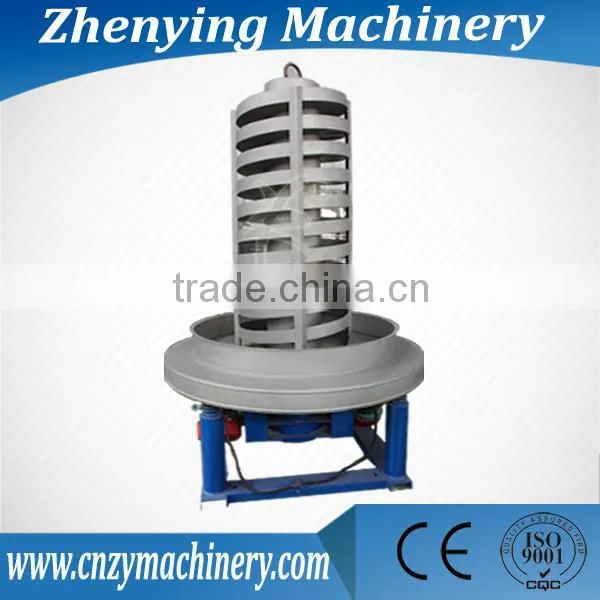

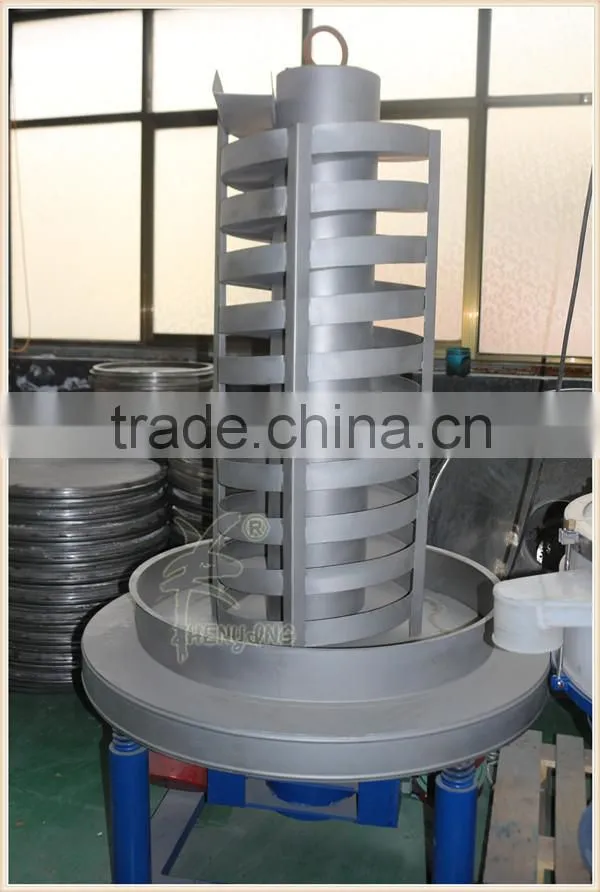

Hot sale vertical spiral conveyor
Vertical spiral conveyor in the productive process
Technical Parameter
|
CS-1250 |
CS-2000 |
CS-3500 |
CS-4500 |
CS-6000 |
Troughtput(t/h) |
0.3 |
0.6 |
3 |
4 |
2 |
Conveyor Height(mm) |
1250 |
2000 |
3500 |
4500 |
6000 |
Diameter of spiral groove (mm) |
220 |
321 |
631 |
631 |
503 |
Working Frequency (times/min) |
1500 |
1500 |
1000 |
1000 |
1000 |
Power(kw) |
2 ×0.1 |
2×0.2 |
2×0.75 |
2×1.5 |
2×1.5 |
Supply Voltage(V) |
380 |
380 |
380 |
380 |
380 |
Rated Current(A) |
2×0.4 |
2×0.8 |
2×2.2 |
2×4.1 |
2×4.1 |
Synthetic Amplitude(mm) |
-4 |
-4 |
-4 |
-4 |
-4 |
FAQ
Please provide the following information to help us recommend a right machine for you:
1.material to be processed?
2.using purposes:to grade or to remove dusts?
3.granule size of material? Or mesh number?
4.moisture content if any?
5.granule size proportion if possible to get?
6.capacity(tons or kg or litter per hour or day)?
local power supply(voltage and frequency)?
Packing and shipping
First, vibrating spiral conveyor empty running 48 hours before packing,then to observe
whether the motor heating, the machine whether there is noise and so on; finally,to pack
and shipment when fully meet requirements.
Xinxiang Zhenying Mechanical Equipment CO., Ltd is the professional machinery manufacturer
specialized in sieving,conveying,crushing and feeding equipment.
High quality product and service,hard-woking and cooperative spirits accelerate the growth of Zhenying company.
With ISO9001:2008,CE Certificate,AAA credit company and many government credits,
our products are your best choice.
Zhenying means flying eagle in Chinese,hope we can fly far away in the sky of world machinery.
Our Advantages:
1. Our machine idle running for 48 hours before shipment.
2. 13 months guarantee for the machine,except wearing parts.
3. We have export experience more than 5 years, and passed the CE and ISO Certificate,
more than 30 patents.
4. We have a professional team of engineers, support engineer on site installation and maintenance.
5. Provide the professional video and a warm, efficient, professional service.
6.The order service: during the production, all tracked by pictures.
1.After sale:
1.Installation,Debugging.
Provide installation files, technical data and related soft copies or videos etc to ensure
customer could install and debug by themselves.
2.warranty
The provider guarantee the vibrating screen could meet production technical standard
and performance requirements indicated in the contract, 24 months for the machine after
delivery ,12 months for the motor after delivery.
3.Technical Support
Our company will make occasional call to find problems and solve them in time.Provide
technical support timely.
4.Response Time(24 hours)
Contact us through Telephone or Email, we will respond within 24 hours.
