Vacuum conveyor/feeder for fine powder
Introduction
Vacuum conveyor/feeder consist of vacuum pump(no oil and water), stainless steel
suction tube, flexible hose, PE filter or SUS316 filter, compressed air cleaning
device,pneumatic discharging device, vacuum hopper and automatic level control device.
It is specially used in the food industry and pharmaceutical industry.
Application
Vacuum conveyor/feeder is the most advanced, perfect vacuum conveying
equipment of powder material, granular material, powder granular mixture.
It can automatically transport a variety of materials to mixing machine, packing machine,
injection molding machine, grinder etc. With the advantage of cost reducing and no
powder pollution.
Detail:

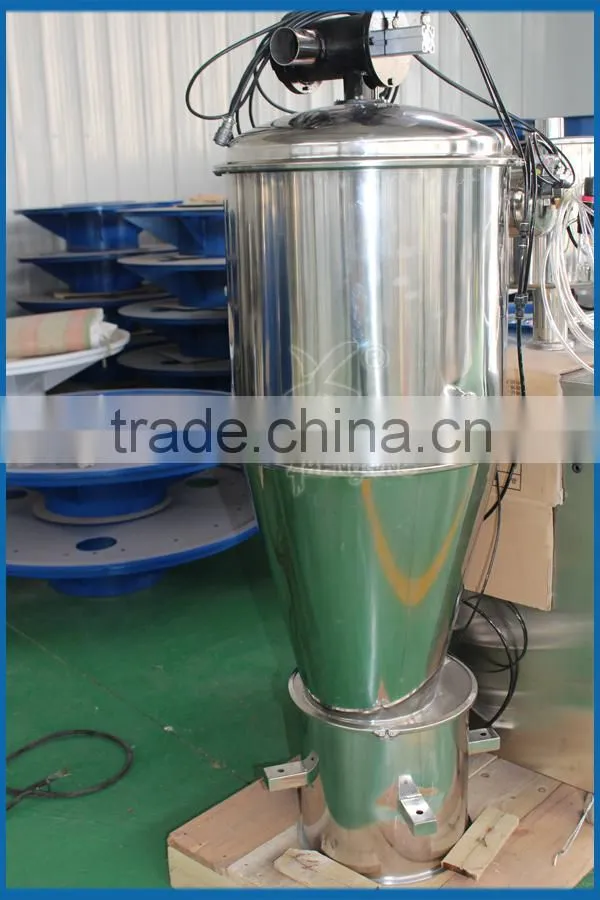

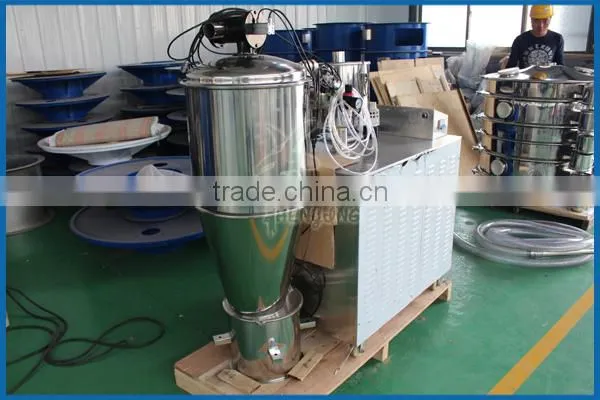

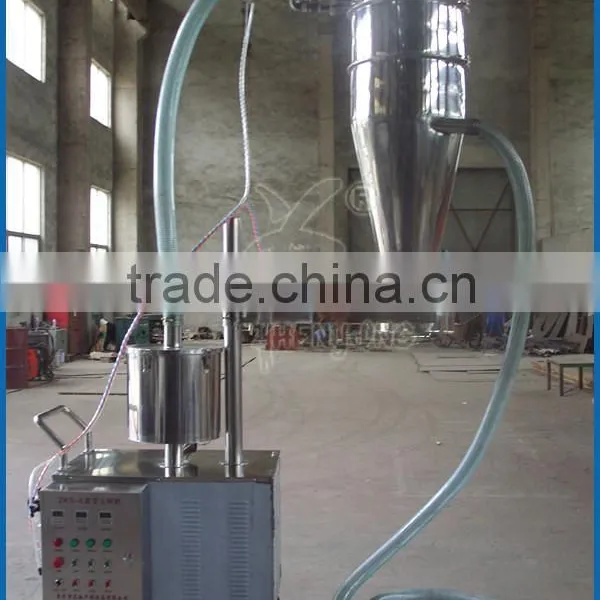

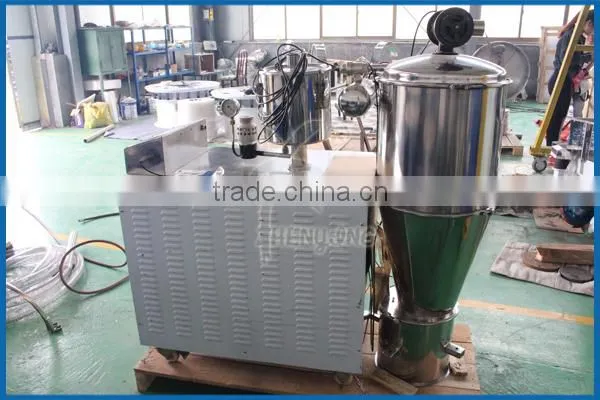

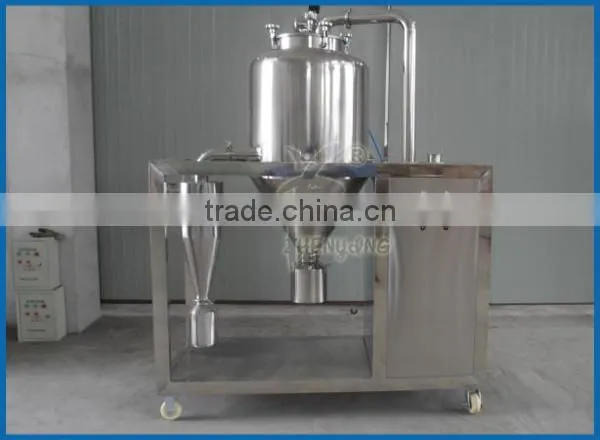

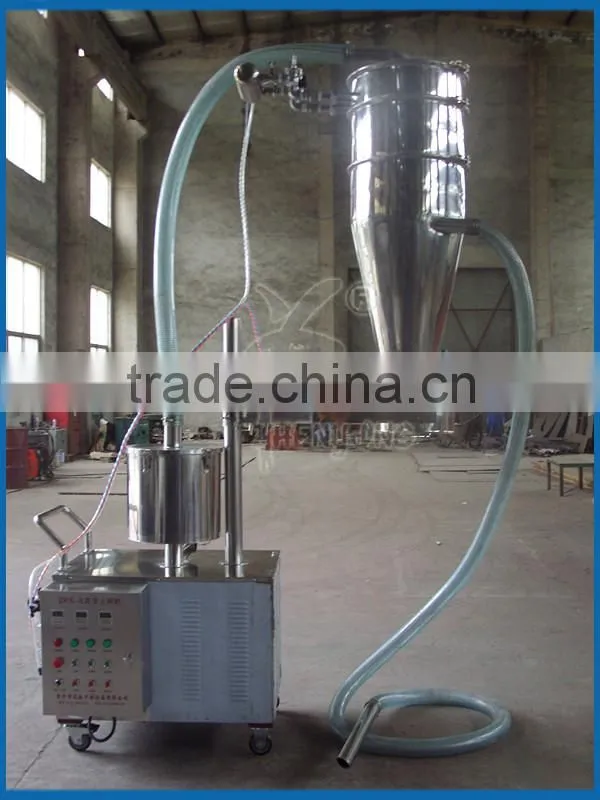

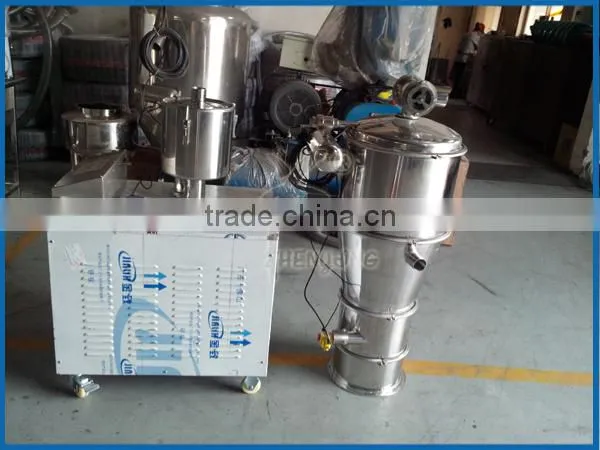

vacuum conveyor/feeder in our factory

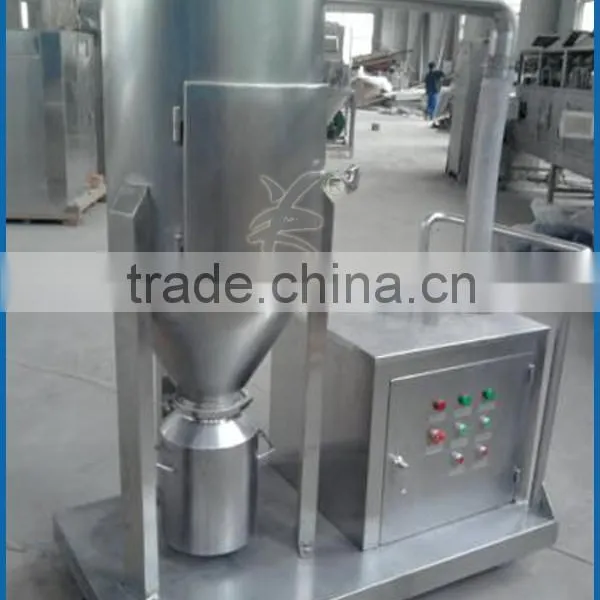

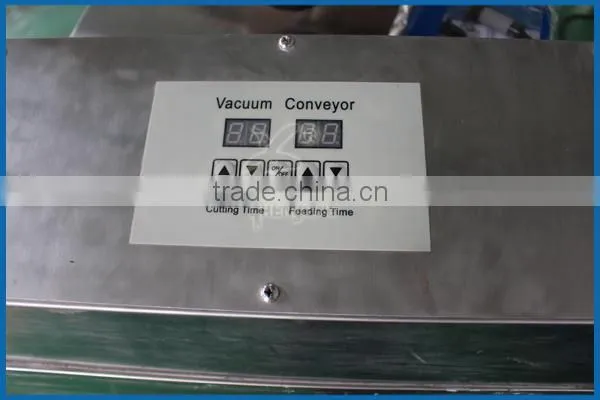

Controlling plate

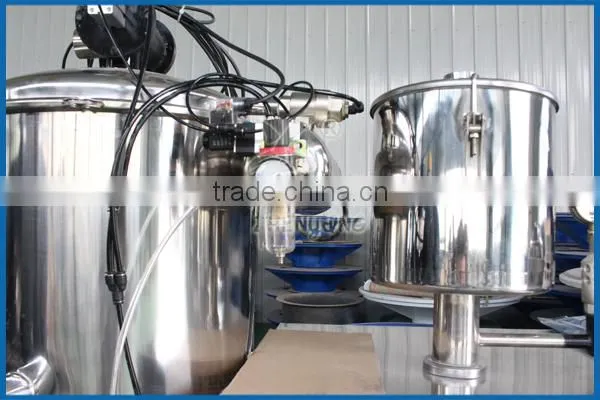

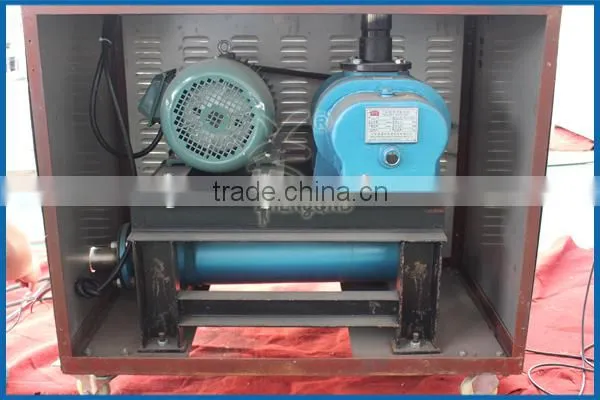

Inner structure
Working Principle
when compressed air enter into the vanuum pump, simultaneously under the push of
air cylinder, the empty door of hopper will be closed and the vacuum will be formed in the
hopper. The vacuum conveyor/feeder forms air stream under vacuum state. Under the
action of this air steam the material which is conveyed will be transported to vacuum hopper, through hose. Certain time later (feeding time, adjustable), the compressed air is closed,
the pneumatic vacuum pump is unable to produce vacuum, simultaneously under the
push of air cylinder the emptying door of hopper will be opened and the cacuum will be
disappeared in the vacuum feeder. The material will be fed into receiving equipment
from the emptying door (for example tablet press,packing machine and so on),
simultaneously, compressed air that stores up in air packet's blowbacks the filter,
and the filter cleans by itself. Certain time late (discharging time, adjustable),
the compressed air starts again. Move in cycles, the material is fed into the equipment
continuously.
Feature:
--Using compressed air as primary energy sources
---Solving the stratification of powder and granules
---The filters made of Ti will never be jammed and be abraded
---Eliminate the static electricity
---Made of nontoxic and corrosion resistant materials
---Leakage free capsule, to prevent cross contamination
---Intelligent control and high automation
---Materials are not adhering to the inner surface of the conveyor
---Modular structure, easy to clean and dismantle
---Small and light ,easy to install
---Low noise and free from vibration
---Energy saving and low running cost.
Parameter
Model |
Capacity (kg/h) |
Motor powe (KW) |
Air supply (L/MINS) |
Pressure (Mpa) |
Hopper Diameter (MM) |
Tube Diameter (MM) |
ZYV-1 |
400 |
1.5 |
8 |
0.4-0.6 |
213 |
38 |
ZYV2 |
600 |
2.2 |
8 |
0.4-0.6 |
213 |
38 |
ZYV-3 |
1200 |
3 |
8 |
0.4-0.6 |
290 |
51 |
ZYV-4 |
2000 |
5.5 |
8 |
0.4-0.6 |
420 |
51 |
ZYV5 |
3000 |
4 |
10 |
0.4-0.6 |
420 |
51 |
ZYV6 |
4000 |
5.5 |
10 |
0.4-0.6 |
420 |
63 |
ZYV-7 |
6000 |
7.5 |
10 |
0.4-0.6 |
420 |
63 |
ZYV-10 |
4000 |
11 |
10 |
0.4-0.6 |
600 |
89 |
ZYV-20 |
4000 |
18.5 |
10 |
0.4-0.6 |
600 |
89
|
About us:
Zhenying machine is the professional machinery manufacturer specialized in sieving,
conveying,crushing and feeding equipment.
High quality product and service,hard-woking and cooperative spirits accelerate the growth of Zhenying.
With ISO9001:2008,CE Certificate,AAA credit company and many government
credits, our products are your best choice.Zhenying means flying eagle in Chinese,
hope we can fly far away in the sky of world machinery.
Our Advantages:
1. Our machine idle running for 48 hours before shipment.
2. 13 months guarantee for the machine,except wearing parts.
3. We have export experience more than 5 years, and passed the CE and ISO
Certificate,more than 30 patents.
4. We have a professional team of engineers, support engineer on site installation
and maintenance.
5. Provide the professional video and a warm, efficient, professional service.
6.The order service: during the production, all tracked by pictures.
