GL Automatic Feeders for Chickens

GL Automatic Feeders for Chickens thumbnail-1
GL Automatic Feeders for Chickens photo-1
US$ 1,200 - 2,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Linear automatic feeders for chickens, mining ,coal etc for Linear Vibrating Feeder
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Xinxiang Zhenying Mechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Linear automatic feeders for chickens, mining ,coal etc for Linear Vibrating Feeder
Power Type Electric
Capacity(t/h) 200
Place of Origin Henan, China
Brand Name Zhenying automatic feeders for chickens
Model Number GL automatic feeders for chickens
Power(W) 1.6kw for Linear Vibrating Feeder
Dimension(L*W*H) different size ,different model
Weight 500-1500kg
Certification ISO9001:2008, CE, ISO 9001:2008 for automatic feeders for chickens
Warranty 1 year for Linear Vibrating Feeder, 1 year for shrimp/Prawn small Vibrating Feeder
After-sales Service Provided Engineers available to service machinery overseas



GL automatic feeders for chickens



GL automatic feeders for chickens





Introduction:

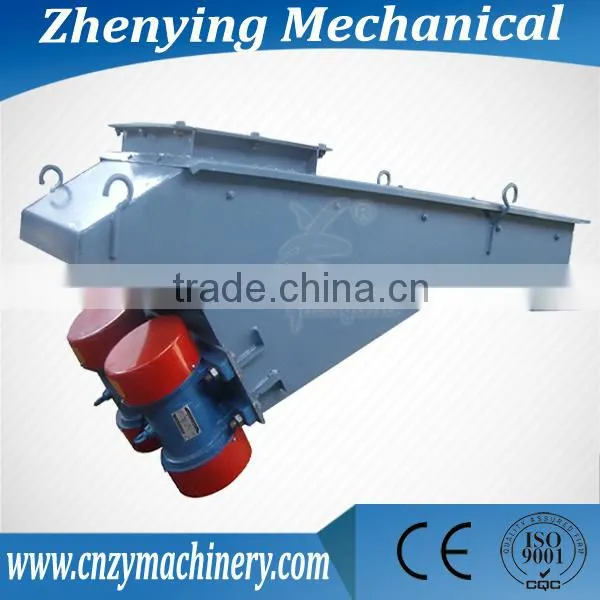

ZGL Linear Vibrating Feeder is widely used in mining, metallurgy, coal, building materials,

light industry, electric power, chemicals, grain and other departments, which is be used to

convey the massive, granule and powder materials from the warehouse or hopper into the

accepting device evenly and continuously or quantificationally.

It consists of five parts:trough

1,Vibrating body2,Vibrating motor3,damping device4,antifriction liner plate



GL automatic feeders for chickens



Feature:

1.Small size, light weight, simple structure, easy installation, low maintenance and low cost.

2.Universal type is open type, if no special requirements as a feeder to use.

3. Sealed-type is applied to feeding under the situation of larger dust.

4. Tube-type is applied for the fragile particles, more pollution and fragile materials.
upside vibration-type is applied in auto- batching cases.



Technical Parameters



Model

Feeding granularity
(mm)

Quantity
of output
(t/h)

Motor
type

Voltage
 (V)

Power
(Kw)

Vibration
frequency
(Hz)

Double-amplitude
(mm)

Exciting
force (Kz)

Weight
(KG)

GL-25

<50

25

YZO-5-4

380

0.4×2

25

2mm-3mm

5×2

174

GL-60

<70

60

YZO-8-4

380

0.75×2

25

2mm-4mm

8×2

242

GL-80

<80

80

YZO-8-4

380

0.75×2

25

2mm-4mm

8×2

256

GL-100

<100

100

YZO-10-4

380

1.0×2

16

2mm-5mm

10×2

321

GL-200

<150

200

YZO-17-4

380

0.75×2

25

2mm-5mm

16×2

372

GL-300

<150

300

YZO-17-4

380

0.75×2

25

3mm-6mm

16×2

556

GL-400

<180

400

YZO-20-6

380

2.0×2

16

3mm-5mm

20×2

606

GL-500

<500

500

YZO-30-4

380

2.5×2

25

3mm-5mm

30×2

886



The controller for the automatic feeders for chickens .



 GL automatic feeders for chickens



Two motors on the Linear Vibrating Feeder .



GL automatic feeders for chickens



The air spring for the automatic feeders for chickens .



GL automatic feeders for chickens

 Another special design for the  automatic feeders for chickens .



GL automatic feeders for chickens



Linear Vibrating Feeder 's installationGL automatic feeders for chickens



Linear Vibrating Feeder's round inlet (can be designed).

GL automatic feeders for chickens



Company Information



GL automatic feeders for chickensGL automatic feeders for chickens

Our Services



Service

1. Our engineer can customize the free drawings for you.

2. The machine make the idle running for 48 hours before shipment. Quality is first.
3.The warranty is 13 months after delivery (except for the quick wear spares, eg: spring)
4. We will send you the production picture before shipment.
