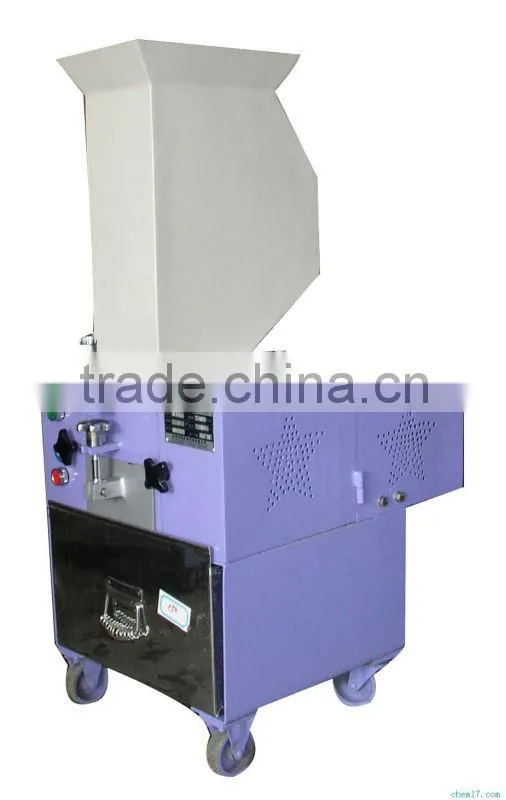

Zhenying 2012 Find Crusher Machine

Specifications

1.ISO 9001:2008 Certificate.
2.Crush stone once to available size.
3.Lifelong time service.
4.High speed rotors.

Introduction

 crusher machine is suitable for mid-hard and light erosive materials, whose  pressure resistance strength is no more than 100Mpa and humidity lower than 15%, such as coal, salt, chalk, gypsum, blocks, limestone, etc.



Working principle

crusher machine mainly consists of frame, rotor, trapezoidal iron plate, bar grate, etc. And the frame consists of the upper part and the lower part, which are made of welded cut armor plate, while other parts are connected into one by bolts. High manganese steel liners are mounted in the frame and can be replaced after wearing out.

There are several sets of hammers equipped on the main shaft of the hammer crusher in regular distribution. They constitute the rotor with dial and hammer shaft. Driven by the motor and V-belt, the main shaft rotate with rotors. And the rotors spread to the surrounding extensions under the centrifugal force brought from rotating. So when big materials fall into the crushing cavity of hammer crusher, they will be broken into pieces by high speed rotors. The qualified materials after crushing will be discharged from the gap of grate at the bottom, while those unqualified ones will still stay in the crushing part and then discharged when they reach the acceptable size after repeated actions of hammers and trapezoidal iron plates.



Features

1. crusher machine has compact structure and reasonable layout.
2. It is convenient to install, and easy to operate and maintain.
3. It can crush large, medium and small sized stones, and has high reduction ratio.
4. It suitable for use in cement plants.

Technical Parameter

Mode	Rotor diameter(mm)	Specification Width*length(mm)	Feeding particle diameter(mm)	Output Capacity (t/h)	Power kw	Weight (t)	Dimension (mm)
PC-0706	700750	618*510	≤400	50-70	75	3.2	1950*1340*1480
PC-0808	800*750	780*610	≤500	80-100	132	5.3	2280*1790*1670
PC-0910	900*1000	1070*750	≤600	150-200	110*2	9.8	2600*2200*1940
PC-1012	1000*1180	1255*810	≤650	250-300	132*2	13.2	2800*2310*2210
PC-1213	1200*1280	1350*900	≤750	300-350	160*2	17.1	2970*2580*2510
