Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > Xinxiang High Quality Hammer Crusher Machine Manufacture

Xinxiang High Quality Hammer Crusher Machine Manufacture

Name: Xinxiang High Quality Hammer Crusher Machine Manufacture
Brand: Zhengying
SKU: 106996059
Availability: InStock

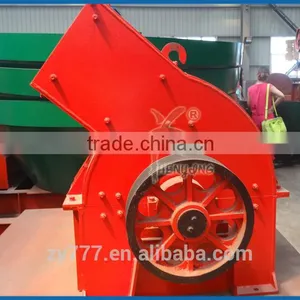

Xinxiang High Quality Hammer Crusher Machine Manufacture thumbnail-1

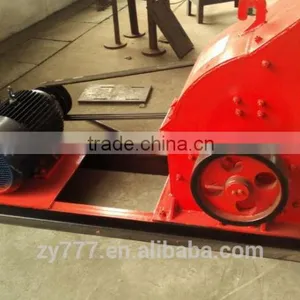

Xinxiang High Quality Hammer Crusher Machine Manufacture thumbnail-2

Xinxiang High Quality Hammer Crusher Machine Manufacture photo-1

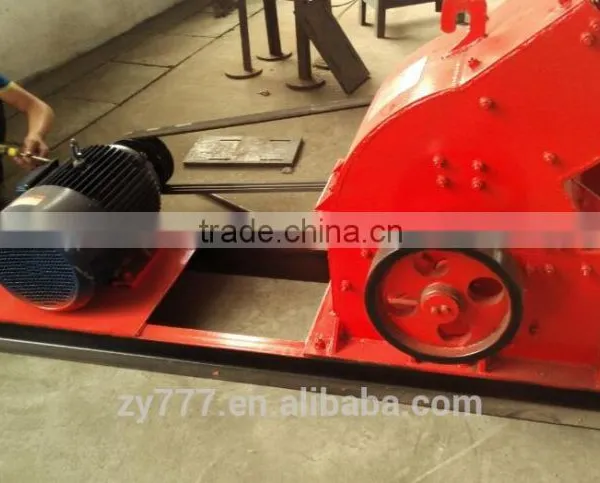

Xinxiang High Quality Hammer Crusher Machine Manufacture photo-2

US$ 14,770 - 24,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Hammer Crusher

Application:

break stone

Contact Supplier Request Quote Chat Now

Xinxiang Zhenying Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Qingdao/Shanghai port of China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Hammer Crusher

Application break stone

Motor Type Stepper Motor

Power(W) 30kw

Capacity(t/h) 100 Set/Sets per Month

Place of Origin Henan, China

Brand Name Zhengying

Model Number YK hammer crusher manufacture

Dimension(L*W*H) 1150x1275x1240mm

Weight 2.8t

Certification CE&ISO

Warranty 13 Months

After-sales Service Provided Engineers available to service machinery overseas

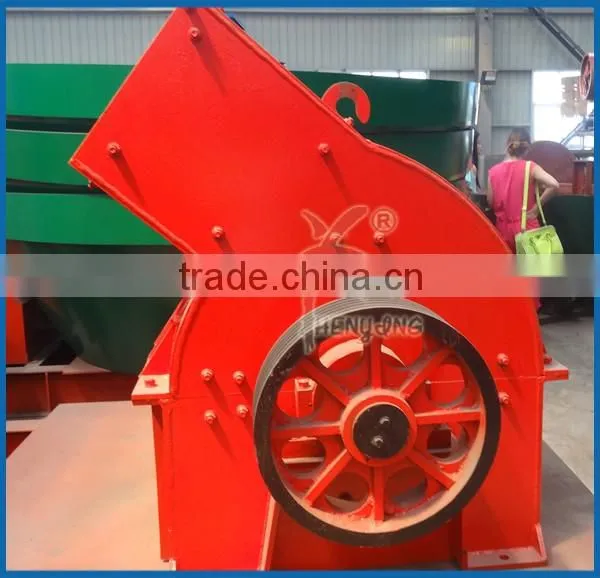

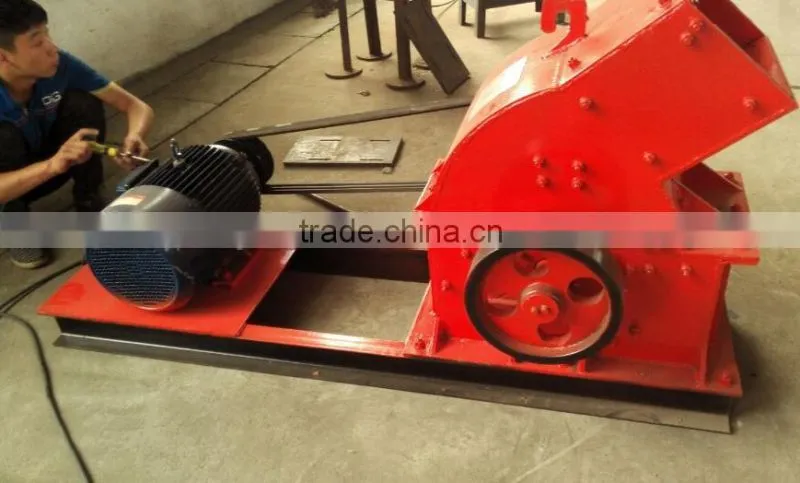

Xinxiang high quality hammer crusher machine manufacture

Hammer crusher is suitable for mid-hard and light erosive materials, whose pressure resistance strength is no more than 100Mpa and humidity lower than 15%, such as coal, salt, chalk, gypsum, blocks, limestone, etc.

Working principle

Hammer crusher mainly consists of frame, rotor, trapezoidal iron plate, bar grate, etc. And the frame consists of the upper part and the lower part, which are made of welded cut armor plate, while other parts are connected into one by bolts.

High manganese steel liners are mounted in the frame and can be replaced after wearing out.

There are several sets of hammers equipped on the main shaft of the hammer crusher in regular distribution. They constitute the rotor with dial and hammer shaft.

Driven by the motor and V-belt, the main shaft rotate with rotors. And the rotors spread to the surrounding extensions under the centrifugal force brought from rotating.

So when big materials fall into the crushing cavity of hammer crusher, they will be broken into pieces by high speed rotors.

The qualified materials after crushing will be discharged from the gap of grate at the bottom, while those unqualified ones will still stay in the crushing part and then discharged when they reach the acceptable size after repeated actions of hammers and trapezoidal iron plates.

Tech Data

Model	Rotor speed (r/min)	Input opening size(mm)	Max. feed size (mm)	Discharged size (mm)	Capacity (t/h)	Power(kw)	Weight(t)	Overall Dimension (L×W×H)(mm)
Φ400×400	1500	145×450	100	0-30	5-8	7.5	0.9	844×942×878
Φ600×400	1000	295×450	100	0-35	10-12	18.5	1.03	1054×972×111
Φ600×600	1000	295×570	100	0-35	12-18	45	2.14	1315×840×150
Φ800×600	1000	350×570	120	0-45	20-25	55	2.45	1515×2586×10
Φ800×800	1000	350×850	120	0-45	35-45	55	3.05	1515×2831×10
Φ1000×800	1000	580×850	200	0-45	25-40	110	6.5	3206×2210×15
Φ1000×100	1000	580×1060	200	0-45	40-80	132	7.6	3514×2230×15
Φ1250×800	750	650×850	200	0-45	20-50	132	11.7	2630×1780×20
Φ1250×125	750	650×1330	200	0-45	90-110	185	13.2	2630×2180×20
Φ1400×140	750	1050×154	250	0-45	120-170	280	17.2	2790×2800×23
Φ1600×160	600	1500×178	350	0-60	220-280	450	22.8	3350×3120×26

Note: Any change of technical data shall not be advised additionally.

Features

1. Easy installation and maintenance.

2. Developed structure and long service life.

3. Difficult deformation with high strength.

4. Unblocked material flow and large production capacity.

5. Smooth and reliable performance.

6. Low consumption of spare parts and low maintenance costs.

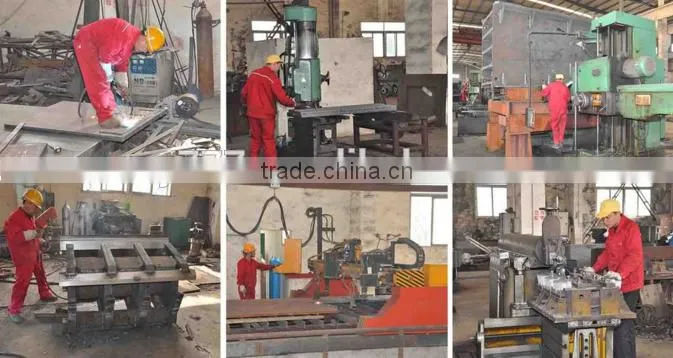

Producing shop

Company Information

Mainly manufacture vibrating screen(linear/round rotary sieve shaker,vibrator

screen with ultrasonic, tumbler rotary sieve,flow through filter sieve machine etc),

feeder,conveyor, crusher and related products(magnetic separator) etc.1.Past through the CE&ISO9001:2008

2.One of 10 Henan E-businessmen.

3.Excellent Equipment Manufacturer of China.

Q: How about the quality of your products?
FAQ
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Alibaba can get a discount.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q: Do you provide beneficiation flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
