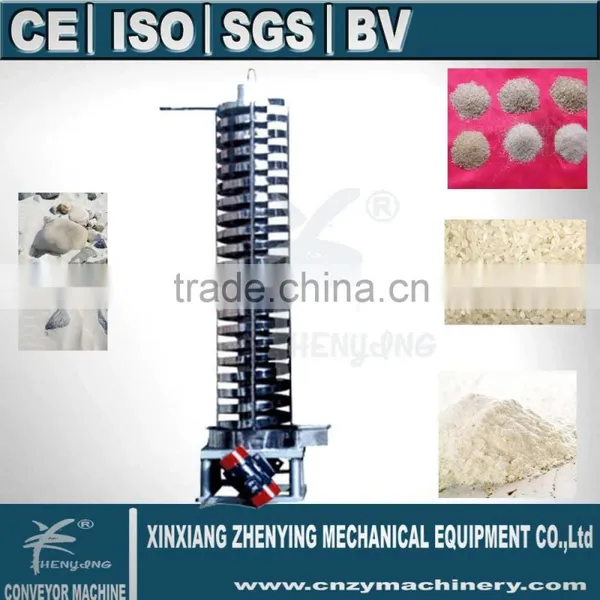

Hi,welcome to visit our CS vertical screw elevator . This is Alma from Xinxiang
Zhenying Mechanical Equipment Co.,Ltd,a professional manufacturer for conveyor,
vibrating screen, filter machine and the related machinery.
Welcome to visit our factory at any time.
Address:No.1018,South of Xinfei Road,Xinxiang City,Henan Province-453000,China
Brief Introduction
CS series vertical conveyor can be designed to classify the granules as well as conveying, and deal with flammable and explosive materials according to different process requirements.
Features
Reasonable and simple structure, easy maintenance, low power consumption, low noise. This equipment occupies very little room, and the totally sealed structure can effectively avoid the dust and the harmful gas pollution.
Application
CS series vertical conveyor is applicable to materials of powder, block and short fibre, and widely used in chemical industry, rubber, plastic, medicine, light industry, metallurgy, building material, machinery, mine, food and other industries. The materials not only can be lifted, but also can be dried and cooled during the process of lifting.

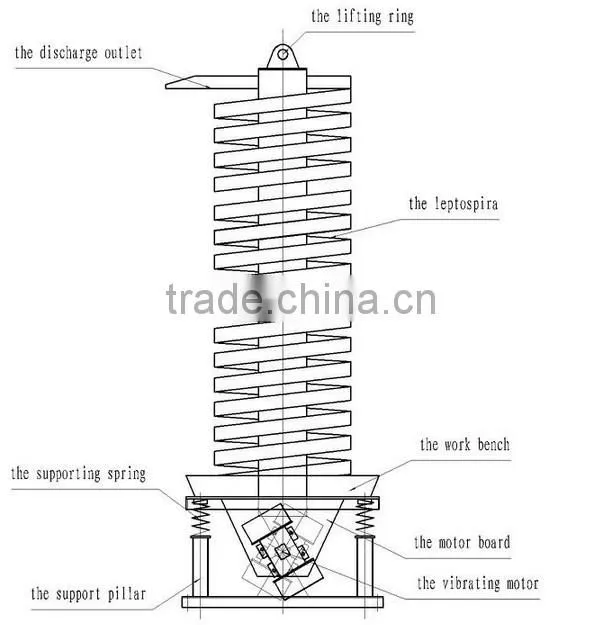

Structure
There are two main types:open type and sealed type.
Technical Parameter
|
CS-1250 |
CS-2000 |
CS-3500 |
CS-4500 |
CS-6000 |
Troughtput(t/h) |
0.3 |
0.6 |
3 |
4 |
2 |
Conveyor Height(mm) |
1250 |
2000 |
3500 |
4500 |
6000 |
Diameter of spiral groove (mm) |
220 |
321 |
631 |
631 |
503 |
Working Frequency (times/min) |
1500 |
1500 |
1000 |
1000 |
1000 |
Power(kw) |
2 ×0.1 |
2×0.2 |
2×0.75 |
2×1.5 |
2×1.5 |
Supply Voltage(V) |
380 |
380 |
380 |
380 |
380 |
Rated Current(A) |
2×0.4 |
2×0.8 |
2×2.2 |
2×4.1 |
2×4.1 |
Synthetic Amplitude(mm) |
-4 |
-4 |
-4 |
-4 |
-4 |
Non-fumigation plywood case/container/as customers' demand.
Have special requipments, can tell us, like "made in China" spray on the case.
1.Installation,Debugging.
Provide installation files, technical data and related soft copies or videos etc
to ensure customer could install and debug by themselves.
2.warranty
The provider guarantee the vibrating screen could meet production technical
standard and performance requirements indicated in the contract, warranty:
24 months for the machine after delivery ,12 months for the motor after delivery.
3.Technical Support
Our company will make occasional call to find problems and solve them in time.
Provide technical support timely.
4.Response Time(24 hours)
Contact us through Telephone or Email, we will respond within 24 hours
Mainly manufacture conveyor, vibrating screen(linear/round rotary sieve shaker,vibrator
screen with ultrasonic ,tumbler rotary sieve,flow through filter sieve machine etc),feeder,
crusher and related products(magnetic separator) etc.
1.Past through the CE&ISO9001:2008
2.One of 10 Henan E-businessmen.
3.Excellent Equipment Manufacturer of China
In order to help you choose a suitable model, please kindly confirm the following information:
1.What do you want to convey? (Could you send us a picture?)
2.What about capacity (kg/h) you need?
3.How about the height of the conveyor?
4.What's the material of the conveyor you need, contacting part is 304/316 stainless steel or full carbon steel?
5.The 220v/50Hz/3phase is it ok for you?
Your success is our business!
My name:Alma Zhang
Mobile phone:86 18738581019
Tel:86 373 5031958 Fax:86 373 3532216
QQ:2080842285
almacnzy005
