Tube Chain Conveyor for conveying feedstuff

Tube Chain Conveyor for conveying feedstuff

Tube Chain Conveyor for conveying feedstuff is that steel cord pipe style conveyor can be motivated by electric motor,diesel engine and gasoline motor.

The power is generally  0. 36~ 7. 5 kW. Its main working parts driving system is made of steel cord and plastic round plate fixed on the rope.

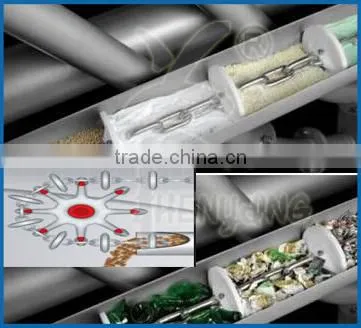

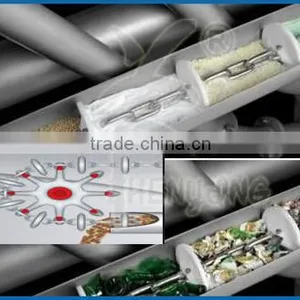

The round plate and round pipe compose into working space and there is one unique conveying chain wheel on the head and the tail of the conveyor.

The driving system goes around the chain wheels in the head and the end and the driving apparatus through head wheels(or end wheels) to drive the driving system to do recycling movement in round pipe.

The materials get into the hopper from the bottom, driven by driving system to the top exit while making eccentric force to throw out the materials to realize materials conveying.

As the conveyor is enclosed, air driven by the round plate makes inner recycling movement to form negative effect.

Application:

It is widely used in the following industries:

food industry,chemicals industry,The manufacturing sector,

Logistics and bulk handling,The mining and resources industry.

Contruction:

Tube Chain Conveyor for conveying feedstuff is that steel cord pipe style conveyor consists of feeding apparatus,driving apparatus and exit apparatus(see the below picture).
By power machinery,the conveyor can reach the purpose of conveying dry powder and particles and is a kind of pipe conveyor.when conveying materials,all the conveying parts participate working.
The key is driving system.In the system,the round disc is made of polyurethane, having features of high strength, good wear resistance, heat resistance and maintenance ,low cost. Die-cast disc is made directly with wire rope as a whole to reduce the possibility of contaminated materials.
polypropylene / polyurethane material also can be used for the round disc.the wire rope can be in galvanized materials or 304 / T316 stainless steel material.
Traction device operating speed is about one-quarter of pneumatic conveying speeds, much higher than most other mechanical handling equipment.
The pressure sensor is mounted on the pipeline.
Under certain circumstances, the sensor sends information to control the conveyor to stop working.

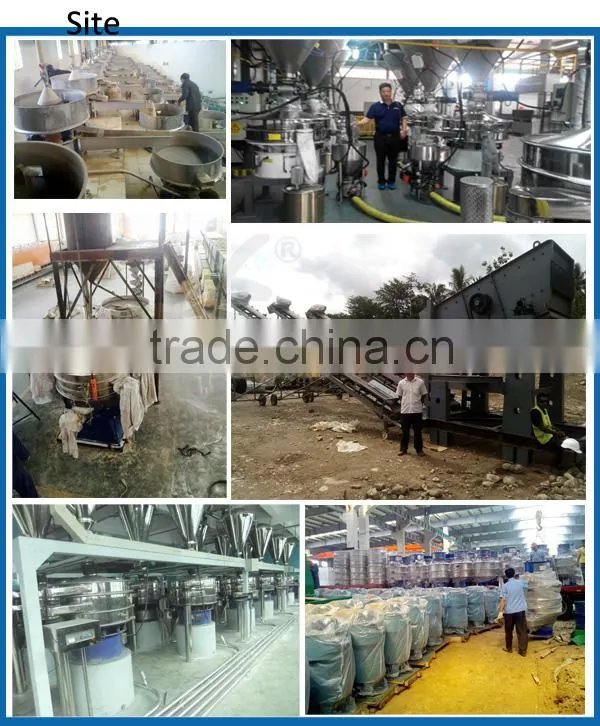

Workshop

Service

1.Installation,Debugging.
Provide installation files, technical data and related soft copies or video,

etc to ensure customer could install and debug by themselves.
2.warranty
The provider guarantee the vibrating screen could meet production

technical standard and performance requirements indicated in the contract,

warranty:  24 months for the machine after delivery ,12 months for the motor after delivery.

3.Technical Support
Our company will make occasional call to find problems and solve them in time.Provide technical support timely.
4.Response Time(24 hours)
Contact us through Telephone or Email, we will respond within 24 hours.

Mainly manufacture vibrating screen(linear/round rotary sieve shaker  vibrator

screen with ultrasonic ,tumbler rotary sieve,flow through filter sieve machine etc),CONVEYOR feeder,crusher and related products(magnetic separator) etc.
