ZY cement screw conveyor for sale
Product Description
Cement screw conveyor sometimes called augers, are used as an efficient way to move a wide variety of materials. The screw conveyor is one of the six simple machines that have been used for thousands of years to provide a mechanical advantage to get work done. Screw conveyors range in complexity from a simple motorized screw set in a trough, to an integral component of a complex material handling system.
The Spiroflow screw conveyor is the LOW COST SOLUTION to moving bulk materials.
1. Inexpensive to purchase, easy to install
2. Simple to operate, virtually maintenance free
3. Fast & simple to clean, quickly disassembled
4. Will not separate blends
5. Dust tight, contamination free
6. Stationary or portable designs
Design Considerations
In designing a screw conveyor for a specific purpose, many questions must be answered in order to achieve optimal performance. Information needed would be:
1. The material being conveyed,
2. Density in pounds per square inch,
3. The desired volume,
4. Height and distance that need to be conveyed.
5. Other factors that can helpful to know are the abrasiveness, corrosiveness, or viscosity of the material to be conveyed.
In answering those questions, the screw conveyor can then be designed with the appropriate metal, diameter, pitch, length, and trough and motor requirements.
SPECIFICATION:
| Model | ZYTC-100 | ZYTC-300 | ZYTC-1000 | ZYTC-1500 | ZYTC-2000 | ZYTC-3000 |
| Main Motor Power (KW) | 1.5 | 1.5 | 1.5KW-6 | 2.2 | 3 | 3KW-6 |
| Products Pushing Motor(KW) | N/A | N/A | 0.55 | N/A | N/A | 0.55 |
| Tube Diameter(MM) | 89 | 102 | 114 | 141 | 159 | 159 |
| Screw Speed(RPM) | 360 | 360 | 360 | 360 | 360 | 360 |
| Conveying Height(MM) | 1900 | 1900 | 2500 | 2800 | 2800 | 2800 |
| Capacity(kg/h) | 50-100 | 200-300 | 1000 | 1000-1500 | 1000-2000 | 2500-3000 |
| Control Type | Adjustable Accel/Decel | Adjustable Accel/Decel | Adjustable Accel/Decel | Adjustable Accel/Decel | Adjustable Accel/Decel | Adjustable Accel/Decel |
| Loading Hopper Dimension L*W*H(MM) |
700*700*900 | 700*700*900 | 700*700*900 | 1000*700*1000 | 1000*700*1000 | 1000*700*1000 |

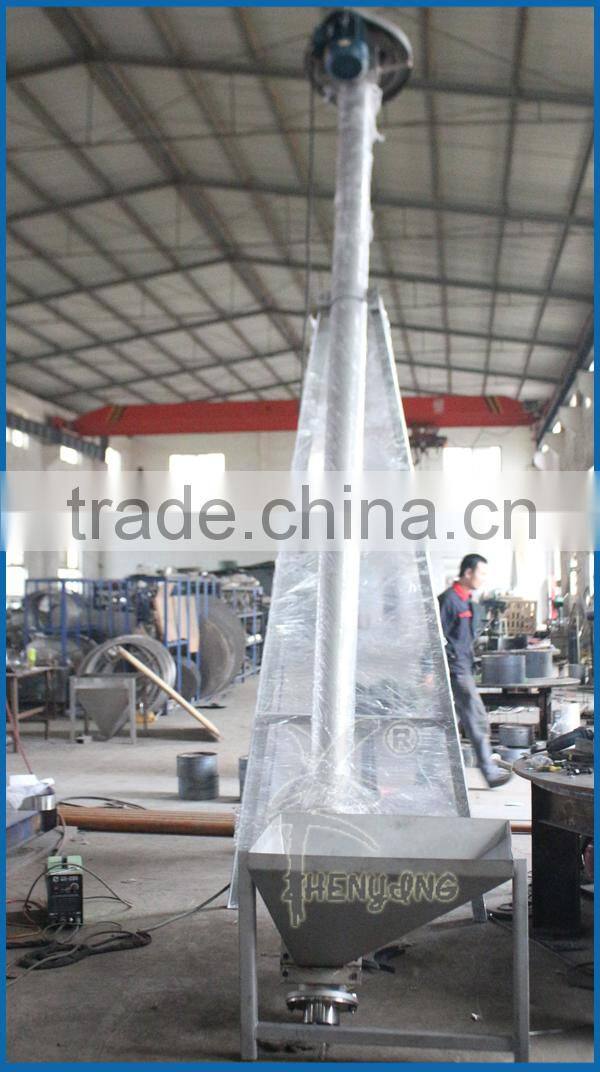

The cement screw conveyor with hopper (to be designed according to capacity) .

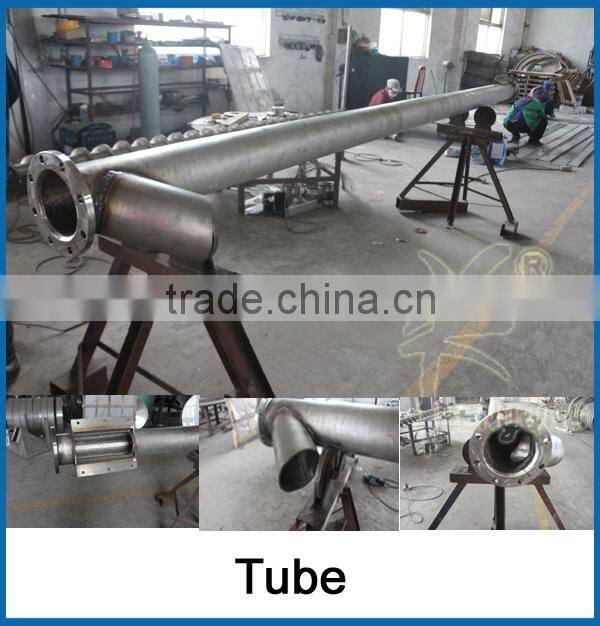

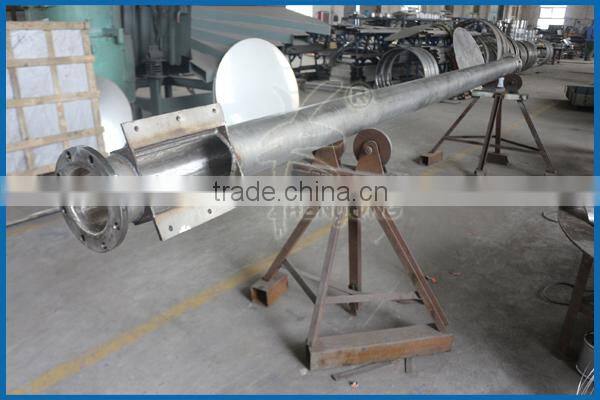

The cement screw conveyor 's tube in carbon steel /fully stainless steel.

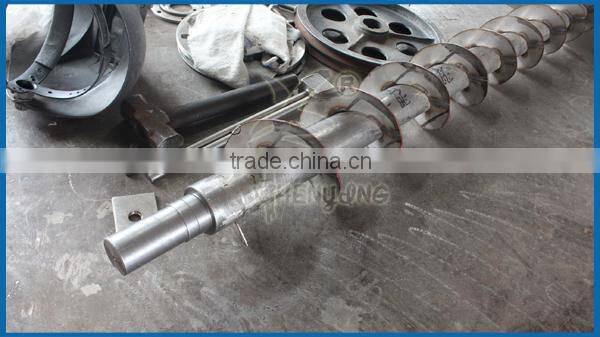

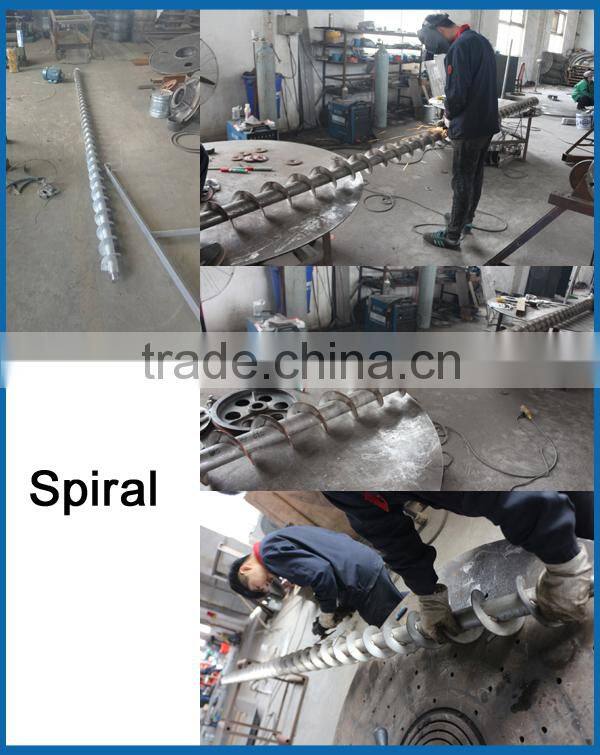

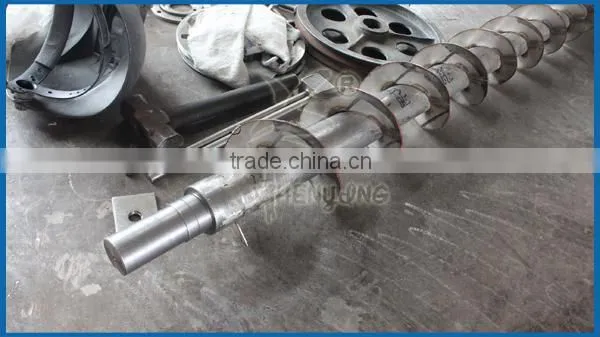

The cement screw conveyo's screw blade in our factory .

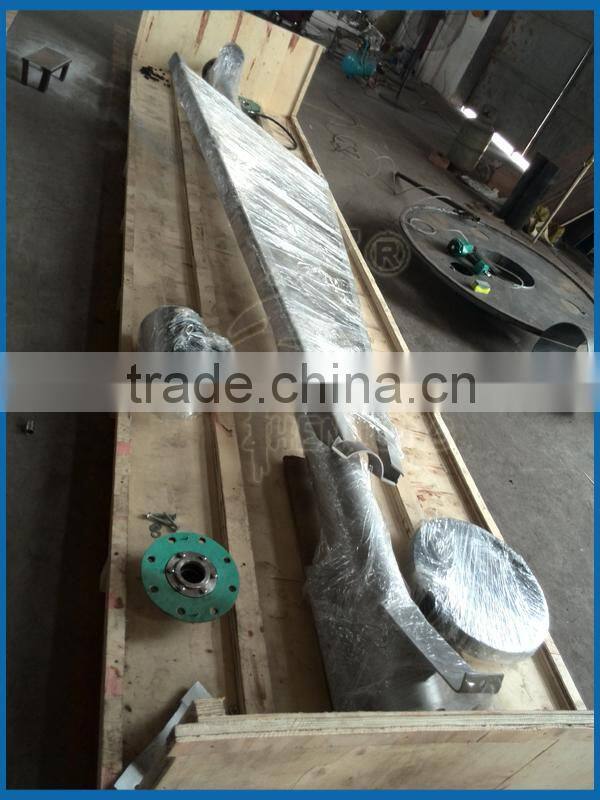

The cement screw conveyor to be packed in wooden case .

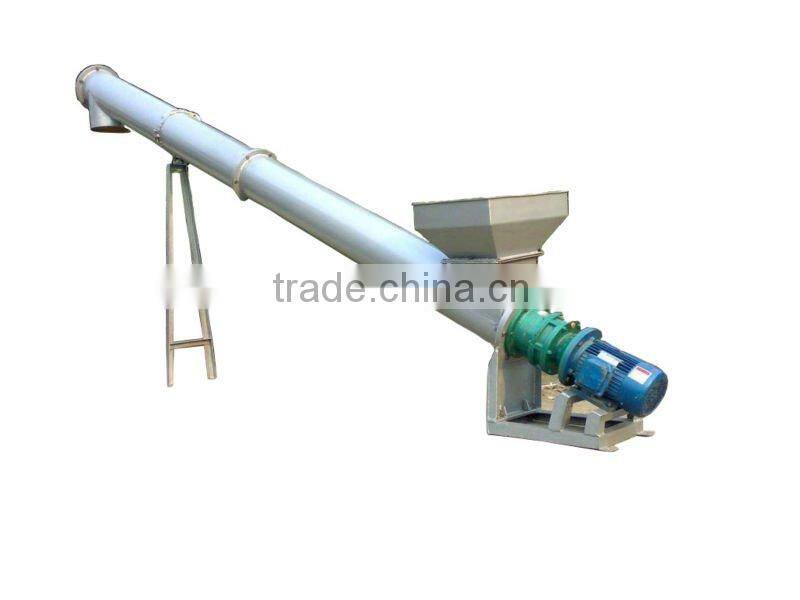

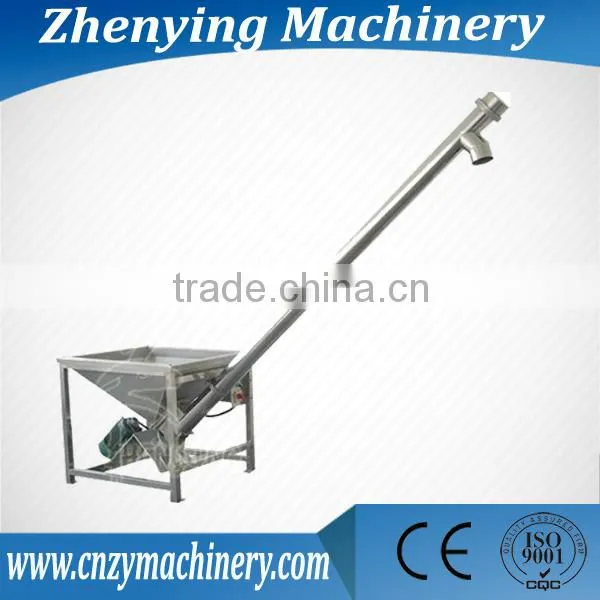

The cement screw conveyor whole machine picture .
How to choose the Cement screw conveyor ?
1.Which products you want to transfer ?
2.How about the height you want ?
3.What's your capacity(kg/h) ?
4.Which materials you choose ?fully carbon steel,fully stainless stee or
the contacting part stainless steel,others carbon steel .
5.Could you kindly tell us your voltage in your country ??
6.You can tell us your special design on the vertical screw conveyor,
we will design the drawing for you .
We are the manufacturer ,welcome you come to our company and factory !
Instant message :QQ :528837994,Skype:cnzymachinery003
Cell phone/whatsapp:+86 13781997628
