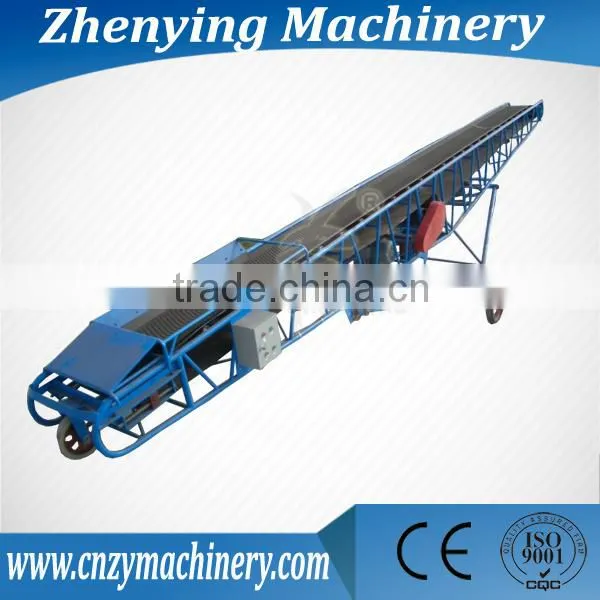

ZY69 spice adjustable height belt conveyor is suitable for harbor, mine, grain, freight yard, warehouse and other departments, which is a kind of simple transitions, wide application, and high efficiency transportation equipment.
Features:
1.Used as automatic auxiliary equipment to improve efficiency and production efficiency
and manpower saving.
2.High conveying capacity,safe and reliable operation.
3.Good adaptability and long service life.
4.Customized products are available (Type,width,length,height,maxload,speed,power
source and etc.)
Technical Parameters
Conveying length |
10m |
15m |
Conveyor width |
500-800(mm) |
0.6 |
Conveyor speed |
0.8~1.6m/s |
2000 |
Conveying capacity(V=1.0m/s) |
70~278m³/h |
321 |
Rack adjustment angle |
9°~20° |
9°~20° |
Conveying max height |
391mm |
5700mm |
Conveying min height |
2000mm |
2700mm |
Taut route |
300mm |
300mm |
Motor power |
2.2kw-5.5kw |
2.2kw-5.5kw |
Transmission reduction ratio |
16.6 |
16.6 |
Steel cable 12-6×19 |
17m |
26m |
Belt 4(3+1.5) |
22m |
31.8m |

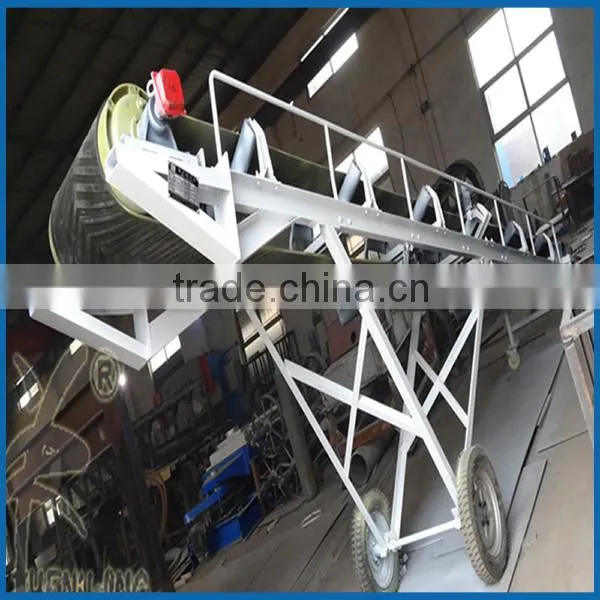

The belt conveyor can be move as you need !

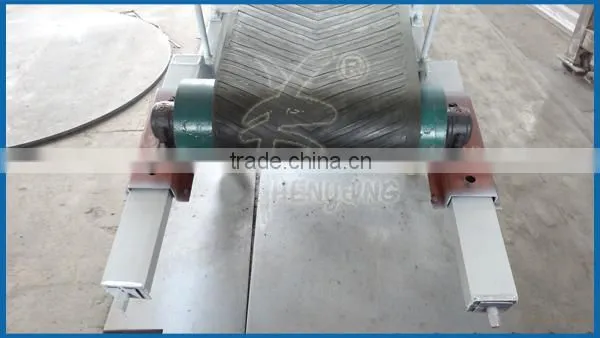

The V-shape belt rubber for the belt conveyor .
Our advantage
1. Our machine idle running for 48 hours before shipment.
2. 13 months guarantee for the machine,except wearing parts.
3. We have export experience more than 5 years, and passed the CE and ISO Certificate.
4. We have a professional team of engineers, support engineer on site installation and maintenance.
5. Provide the professional video and a warm, efficient, professional service.
6.The order service: during the production, all tracked by pictures.

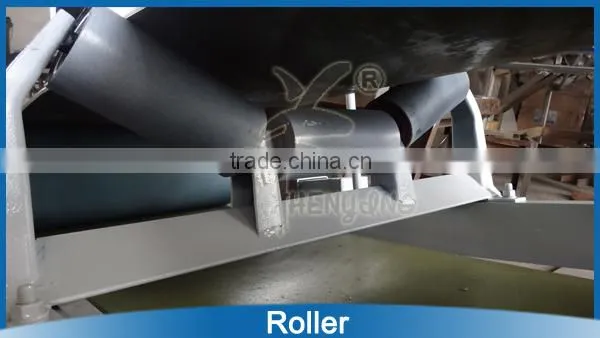

The V shape roller on the belt conveyor.

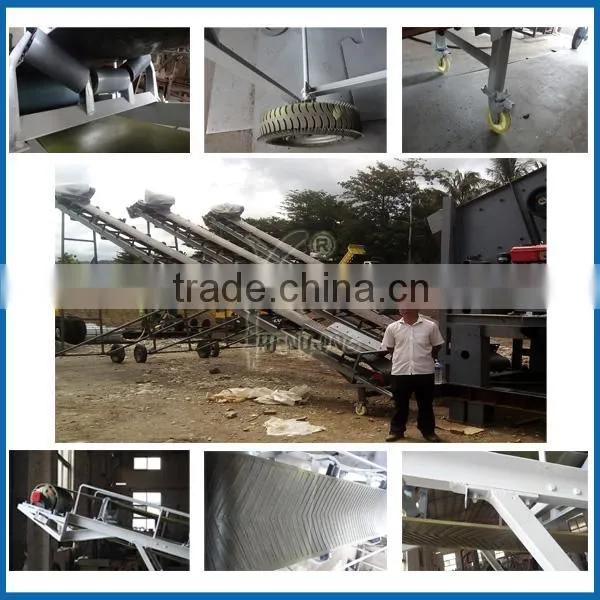

Our engineer install and debug the machine for service overseas.
After Sales
1.24 hours website hot line service
2.Video installment and maintenance instructions for each mode of sieve vibrating
3.For big production line order,to dispatch technician is negotiable.
How to choose the belt converor machine ?
1.Which products you want to transfer ?
2.How about the height and length you want ?
3.What's your capacity(kg/h) ?
4.Which materials you choose ?fully carbon steel,fully stainless stee or
the contacting part stainless steel,others carbon steel .
5.Could you kindly tell us your voltage in your country ??
6.You can tell us your special design on the belt conveyor.
we will design the drawing for you .
