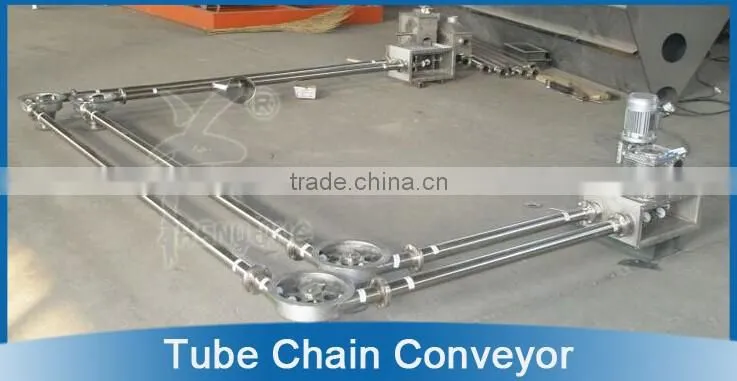

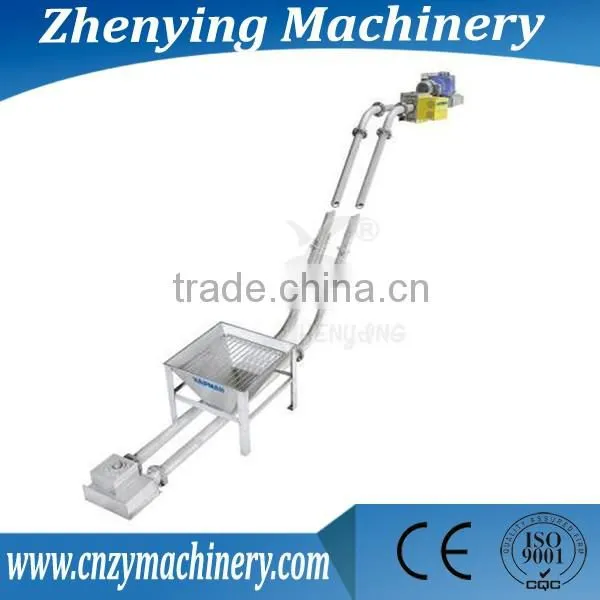

Ultra Fine Powder Tube Chain Conveyor

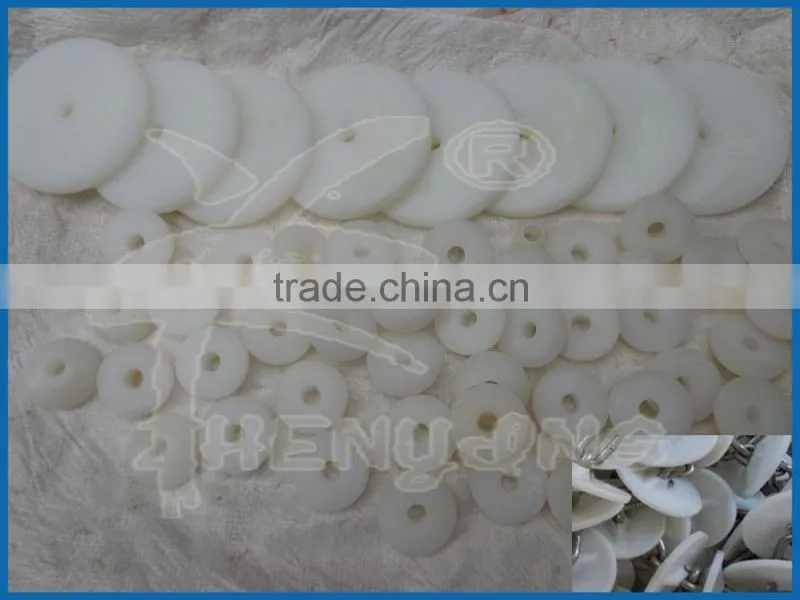

Ultra Fine Powder Tube Chain Conveyor is that steel cord pipe style conveyor can be motivated by electric motor,diesel engine and gasoline motor. The power is generally 0. 36~ 7. 5 kW. Its main working parts driving system is made of steel cord and plastic round plate fixed on the rope. The round plate and round pipe compose into working space and there is one unique conveying chain wheel on the head and the tail of the conveyor. The driving system goes around the chain wheels in the head and the end and the driving apparatus through head wheels(or end wheels) to drive the driving system to do recycling movement in round pipe. The materials get into the hopper from the bottom, driven by driving system to the top exit while making eccentric force to throw out the materials to realize materials conveying. As the conveyor is enclosed, air driven by the round plate makes inner recycling movement to form negative effect. | ||||||||||||||||||||||||||||||
|

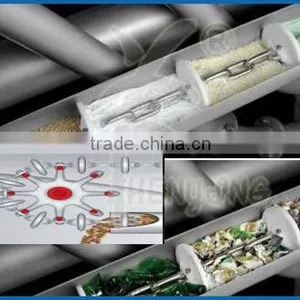

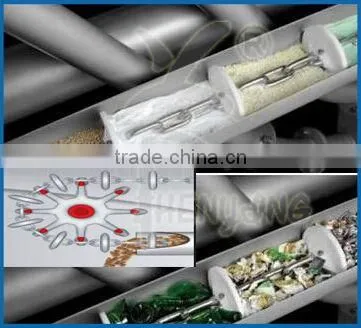

Principle
| ||||||||||||||||||||||||||||||
|
Features as follows: 1.Operates at any angle without any loss of capacity. 2.Dust free sealed systems for ultrafine powders. 3.Almost all materials can be conveyed - ideal for food products and chemicals in powdered or granular form. 4.Low power consumption. 5.Material finishes - epoxy painted or stainless steel. 6.Removable housing cover with optional interlock for easy cleaning. | ||||||||||||||||||||||||||||||
|
Application: It is widely used in the following industries: food industry,chemicals industry,The manufacturing sector, Logistics and bulk handling,The mining and resources industry.
| ||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
|

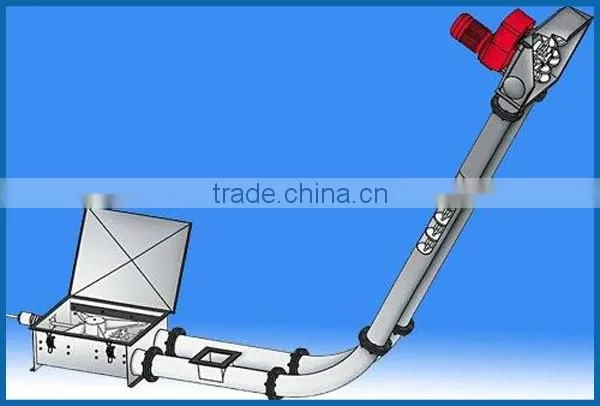

Contruction: Ultra Fine Powder Tube Chain Conveyor is that steel cord pipe style conveyor consists of feeding apparatus,driving apparatus and exit apparatus(see the below picture).
| ||||||||||||||||||||||||||||||
|

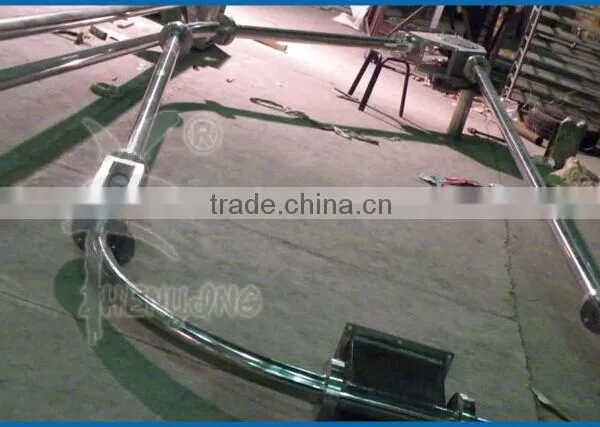

Workshop
| ||||||||||||||||||||||||||||||
|

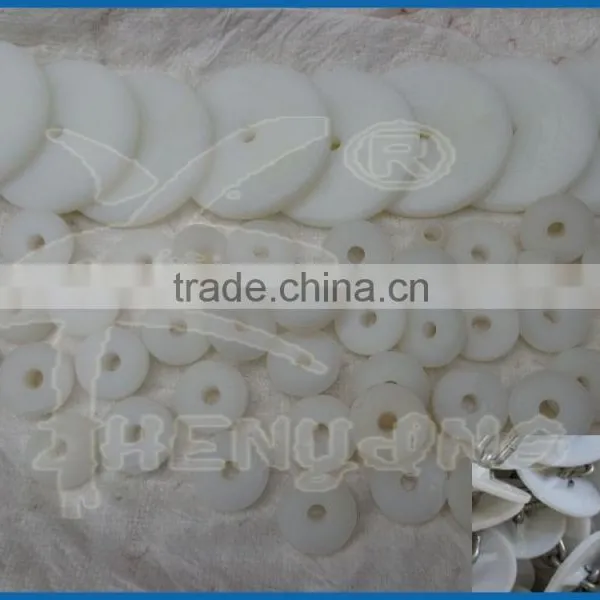

Other shape-circular
| ||||||||||||||||||||||||||||||
|
Service 1.Installation,Debugging. etc to ensure customer could install and debug by themselves. technical standard and performance requirements indicated in the contract, warranty: 24 months for the machine after delivery ,12 months for the motor after delivery. 3.Technical Support | ||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||
|
Mainly manufacture vibrating screen(linear/round rotary sieve shaker vibrator screen with ultrasonic ,tumbler rotary sieve,flow through filter sieve machine etc),CONVEYOR feeder,crusher and related products(magnetic separator) etc.
1.Past through the CE&ISO9001:2008 FAQ: In order to assist you to choose a suitable model, would you like to help us figure out the following information: 1.What's the powder you want to deal with? 2.How about the bulk density and water content?? 3.Capacity(kg/h) you need??? 4.Voltage(380v, 50hz, 3phase)???? Your success is our business! | ||||||||||||||||||||||||||||||
