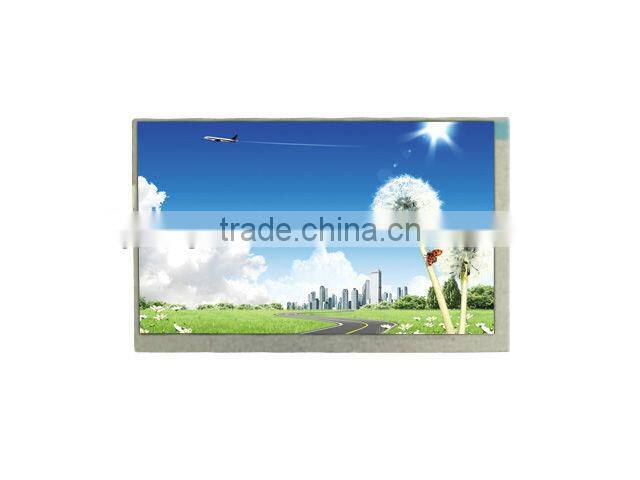

7 Inch Lcd Touch Screen Panel Oled Display

7 Inch Lcd Touch Screen Panel Oled Display thumbnail-1
7 Inch Lcd Touch Screen Panel Oled Display photo-1
US$ 1 - 15 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
e-king
Model Number:
EK700AT9309
Contact Supplier Request Quote Chat Now
Zhejiang Qiyang Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name e-king
Model Number EK700AT9309
Screen Dimension 7 inches

Specifications


7'TFT-LCD Touch screen with TP
1.Brand: e-king
2.Panel Size: 7.0 inches
3.Resolution: 800x480
4.Panel Type: a-Si TFT-LCD


Feature

1.Brand: e-king

2.Product Model: EK700AT9309
3.Panel Size: 7.0 inches
4.Resolution: 800x480
5.Display Scale: 4:3
6.Display Scale: 0.1905x0.1905 mm
7.Brightness: 250 cd/m2
8.Contrast Ratio: 400:1(transmission) Panel Type: a-Si TFT-LCD
9.Signal Interface: RGB(1 ch,6-bit)
10.Features: matt surface; white LED backlighting





  7'TFT-LCD Touch screen with TP

7 inch lcd touch screen panel oled display Structural Parameters
• Working Temperature:    -20°C ~ 70°C



• Storage Temperature:    -30°C ~ 80°C



• Panel Weight:    131g



• Surface Treatment:    matt surface



• Resolution:    800(RGB)x480(WVGA)



• Aspect Ratio:    15:9



• Pixel Arrangement:    R.G.B



• Pixel Pitch:    0.1905x0.1905 mm



• Display Area:    152.40x91.44 mm



• Visual Area:    155.30x94.30 mm



• Size:    165.0x104.44 mm



• Thickness:    5.2 mm



• Touch Screen:    4-wire resistive screen optional



7 inch lcd touch screen panel oled display Optical Property

• Display Mode:    TN, Normally White Display, transmittance



• Brightness:    250 cd/m2



• Contrast Ratio:    400 :1 (transmission)



• Display Color:    262K(6bit)



• Color Saturation:    45%



• Response Time:    5/11(Tr/Td) ms



• Viewing Angle:    70/70/60/70 (up/down/left/right)



• Optimal Viewing Angle:    6 o'clock



• White Field Chroma:    X:0.299;Y:0.238



• Inversion Scanning:    60HZ



• Inversion Scanning:    NO



• Power Consumption:    2.718W



• Kind of Signal Interface:    40 pins 0.5mm spacing FPC



• Signal Type:    Parallel RGB(1ch,6bit)



• Signal Interface Voltage:    3.3V



• Signal Interface Current:    200/260mA(Typ./Max.)



• Signal Interface Power:    600mW (Typ.)



• Backlight Tube Position:    side into type light source



• Lamp Type:    3S5PWLED



• Lamp Life:    20,000 (h)



• Lamp Total Power:    1.90W(Typ.)



• Backlight Input Voltage:    9.9V(Typ.)



• Backlight Input Current:    100/125mA(Typ./Max.)
