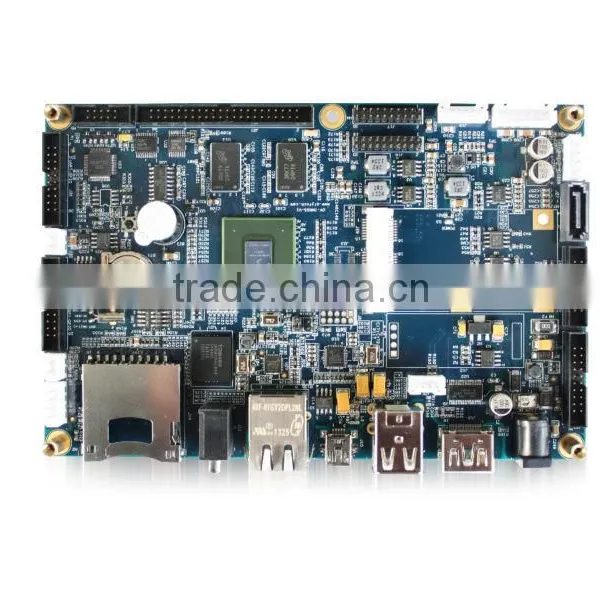

Quality I.MX6 Freescale ARM Cortex A9 Board(sbc)

Quality I.MX6 Freescale ARM Cortex A9 Board(sbc) thumbnail-1
Quality I.MX6 Freescale ARM Cortex A9 Board(sbc) photo-1
US$ 100 - 289 MOQ: 1 Piece
Key Specifications
Get Latest Price
D/C:
QY-IMX6S
Package:
BGA
Model Number:
QY-IMX6S
Contact Supplier Request Quote Chat Now
Zhejiang Qiyang Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
D/C QY-IMX6S
Package BGA
Model Number QY-IMX6S
Type Other, Freescale
Brand Name QY
Place of Origin Zhejiang, China

 Quality I.MX6 Freescale ARM Cortex A9 board(sbc)





High quality IMX6 ARM single board / Linux and Android/China hot sale IMX6 board



Product Specifications:



ARM® Cortex™-A9,1.2GHz, compatible with solo/dual/quad core;



1MB L2 Cache,32 KB instruction and data caches, NEON SIMD Media Accelerator;



2D/3D/VG Accelerator,1080P h.264 video hardware codec,support dual 720P video encoding;



1x 20-bit parallel, MIPI-CSI2 (4-channel), three simultaneous inputs;



2-ch HOST USB HSIC, 1-ch OTG and 1-ch HOST USB integrated PHY;



1 industrial gigabit Ethernet MAC(10/100/1000MHZ);



2-ch CAN ports, each channel can up to 1 Mbps, support CAN2.0;



3 SD/MMC 4.4 and 1 SDXC;



5 SPI, 5 UART, 3 I2C, 4 PWM;



Integrated MIPI-HSI interface, 1-ch PCIe2.0 interface;



Dual LVDS interface, support resolution up to 2048*1536;



Freescale PF100 PMU;



High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection.





Quality I.MX6 Freescale ARM Cortex A9 board(sbc)



Product Pictures:
Quality I.MX6 Freescale ARM Cortex A9 board(sbc)Quality I.MX6 Freescale ARM Cortex A9 board(sbc)

Quality I.MX6 Freescale ARM Cortex A9 board(sbc)



Hardware

Resources

CPU

Freescale i.MX6D processor,ARM® Cortex™-A9 core,1.2GHz

RAM

DDR3 SDRAM,4*256MB, total 1GB

Flash

4GB EMMC

Network

AR8035 Network Chip, adopt RGMII mode, support 10M/100M/1000M

Communication

5-ch RS232, 1 port (com0) as the debug UART, 2-ch RS232 Compatible with RS485

1-ch High speed OTG,4-ch USB, 1-ch connects to MIN_PCIE Interface

2-ch CAN, support CAN2.0, 1-ch TTL Output, 1-ch CAN output

1-ch 10/100/1000Mbps Ethernet port, with ACT/LINK indicator

Display

18-bit TFT-LCD(Compatible with 16, 24 bits), resolution up to 1920 * 1200

VGA, can be connected with universal display

2-ch LCDS Interface, each channel can support resolution up to 1920*1200

HDMI Interface, support HDMI 1.4



Audio

McASP audio interface; binaural output; MIC audio input

Input Interface

4-wire resistive touch panel

Standard I2C Capacitive panel

CAMERA Interface, standard interface support OV5642 camera module

Expansion Interface

MINI_PCIE 2.0

SIM Card

Memory Interface

1-ch SD Card interface

1-ch SATA Hard disk interface, SATAII standard, speed up to 3.0Gbps

Other

Reset circuit, Watch dog, RTC, Buzzer, JTAG interface

Power Input

+12V power supply, can support +4.75V~+18V wide range voltage supply

Resource

Development Tools

Development environment: Virtual Machine VM9.0.2+ubuntu12.04.1

Application layer development debug tool

Cross-compiler

Common terminal development debugging tool

Image File

OS image file, support multiple resolution display

Test Program

Interface using demo test program and test program source code

Source Code

Bootloader, kernel, system source code

Manual

Mainboard User manual,Device Manual

Schematic

Mainboard structure size chart

Electrical Specification

Size

160mm*105mm

PCB

8-layer high precision immersion gold process

Power

Consumption

≤3W

Operation Temperature

-20°C ~ +70°C

Operation Humidity

5% ~ 95%, Non-Condensing



Quality I.MX6 Freescale ARM Cortex A9 board(sbc)

Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.









Company Information

  Quality I.MX6 Freescale ARM Cortex A9 board(sbc)

  Careful pakaging:

  Quality I.MX6 Freescale ARM Cortex A9 board(sbc)





Why Qiyangtech?

1.Technical Support for lifetime.



2.Open Source.



3.Customisation Service.



4.Supply stably and chronically.
