Customizable Freescale Cortex-A9 Kernel System On Module /Android 4.4





Freescale Cortex-A9 Kernel System On Module



Product Description

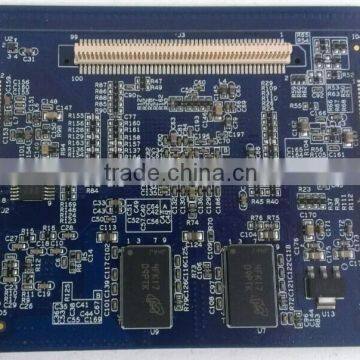

   Freescale I.mx6 Cortex-A9 Core  System On Module :is designed by 8-layer PCB; card size;integrated with CPU,DDR3 RAM,Flash,network;5V DC power supply,low power consumption;B to B (3 x 100 )connectors boot various commonly used interfaces;The users can choose different types of appropriate processor chip to reduce cost(only for bulk users).





Freescale Cortex-A9 Kernel System On Module Specification:

CPU Processor

• Freescale i.MX6 processor,ARM Cortex A9 core • 1.0GHz,compatible with solo/dual/quad core

DDR RAM Memory

• DDR3 SDRAM,4*256MB,1GB

FLASH Storage

• 4GB EMMC

Interface Resources

• 3*100 pin 0.8mm spacing B to B (the connectors are 350℃ high temperature-tested and seismic-tested)

Other On-board Resources

• AR8035 network on chip,support 10M/100M Ethernet with MII mode, more compatible than RMII



• Power management,support 1.8V/3.3V/5.0V voltage input

PCB Specification & Size

• Using 8-layer PCB high precision process, with the best electrical properties and anti-jamming performance • 86 x 60x 1.5mm

Working Parameters

• Working temperature: -20°C~ 70°C (batch order could be customized to -40°C~ 85°C) • Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption

• 5V Dc power supply, low power consumption, <1W

Support OS

• Linux 3.0+QT4.8 • Android 4.4

Customizable Freescale Cortex-A9 Kernel System On Module /Android 4.4 Customizable Freescale Cortex-A9 Kernel System On Module /Android 4.4













  Freescale Cortex-A9 Kernel System On Module





Product Roadmap





Customizable Freescale Cortex-A9 Kernel System On Module /Android 4.4





Freescale Cortex-A9 Kernel System On Module



Application Area





Customizable Freescale Cortex-A9 Kernel System On Module /Android 4.4



  Freescale Cortex-A9 Kernel System On Module

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.





SMT Factory:

Customizable Freescale Cortex-A9 Kernel System On Module /Android 4.4



Accessory Warehouse

Customizable Freescale Cortex-A9 Kernel System On Module /Android 4.4









Freescale I.mx6 Cortex-A9 Core  System On Module



Technical Service:





1.We provide the high performance SOM-series ARM-based module. Proven technology for underlying software and hardware, open source service, high efficient online after-sale service accelerate our customer’s development cycle.

2.OEM/ODM service will help you to achieve your ideal products. Rich experiences help us to open our customer's market quickly. ODM/OEM products right belongs to our customer.

3.Precision market positioning in industrial control area. Professional technology and attitude always let Qiyang win a great reputation in ARM embedded industry. Cooperate with Qiyang, benefit for both of us.

4.Qiyang ARM boards have already embedded in the various industrials. Touch with the end customers in different ‘’Face’’.
