Help CenterCustomizable Cirrus Logic Android Control Board Mainboard
US$ 100 - 289
MOQ: 1 Piece
Key Specifications
Get Latest Price
Chipset Manufacturer:
Other, Cirrus Logic
Memory Type:
SDRAM
Graphics Card Type:
Integrated
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Custom Circuit Board AMTEL SomUS$ 1 - 150MOQ: 1 Piece -
Top Quality Custom Pcb Linux Arm Board/cubieboardNegotiableMOQ: 1 Piece
-
Aluminum Electronic Enclosures Arm Server Core BoardNegotiableMOQ: 1 Piece
-
Integrated Circuit ARM Broad Cortex A8NegotiableMOQ: 1 Piece
-
Universal Arm Development Board/embeded System BoardUS$ 100 - 200MOQ: 1 Piece
Chipset Manufacturer
Other, Cirrus Logic
Memory Type
SDRAM
Graphics Card Type
Integrated
Hard Drive Interface
SATA
FSB / HT
200MHz
Brand Name
QY
Model Number
QY-9315S
Place of Origin
Zhejiang, China

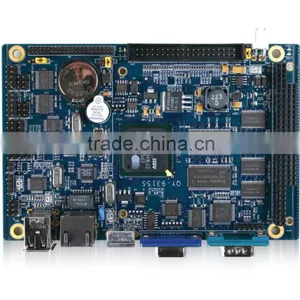

Customizable Cirrus Logic Android control board mainboard
Industrial smart circuit board for sale/IDE interface/CF card
Stamp Module is designed by 6 layer PCB; On-board 64M SDRAM, 32MB NorFlash; with commonly used interfaces, such as TFT-LCD,touch screen, VGA, network, matrix keypad, PC104, CAN, SPI, high-speed USB HostDevice, PS/2, IDE, CF card, RS232485 serial port, audio, etc; support +6V~+25V wide range voltage power supply.
Evaluation Board a general standard reference design board for QY-9315P, with commonly used interfaces, such as TFT-LCD, touch screen, network, matrix keypad, IDE, high-speed USB HOSTDevice, CF card, RS232485 serial port, audio, MIC, etc; support +6V~+25V wide range voltage power supply; can provide a complete design material for user to develop or custmize.
Customizable Cirrus Logic Android control board mainboard
CPU Processor
• CIRRUS LOGIC EP9315 processor, ARM920T core
• 200MHz
SDRAM Memory
• 64MB SDRAM, 2pcs * 4Banks * 4Mbitsx16bits SDRAM
FLASH Storage
• On-board 2-piece 16M*16bits NorFlash, 32M, could change a large capacity or industrial chip according to customer's requirement
PCB Specification & Size
• Using eight floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 147 x 101.6 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 12V Dc power supply, low power consumption, <3W
Support OS
• Linux2.6.8 + QT2.3 > • WindowsCE 5.0
CIRRUS LOGIC EP9315 processor Single Board Computer Software & Technical Support
| ID | Item | Description |
|---|---|---|
| J1 | JTAG interface | Simulation, debugging |
| J4 | SPI interface | SPI communication |
| J5 | AUDIO interface | AC"97 double sound channel audio input/output |
| J6 | Ethernet interface | 10M/100M self-adaptive |
| J9 | LCD interface | Expand LCD interface,with 4-wire touch screen interface |
| J10 | VGA interface | VGA output, connect the monitor |
| J11(back) | CF card interface | CF card storage |
| J12 | IDE interface | IDE devices connection |
| J13 | COM2/COM3 | 3-wire RS232 serial port |
| J14 | Debug serial port | Download, communication |
| J15 | RS485 | RS485 bus development and application |
| J16 | USB Host 3 | USB 2.0 host application |
| J17 | USB Host 1&2 | USB 2.0 host application |
| J18 | COM5 | 9-wire RS232 serial port |
| J19 | COM4 | 9-wire RS232 serial port |
| J20 | Power interface | +12V power supply, support +6 ~+25V wide range voltage |
| J21 | CPLD programming mouth | CPLD program writing |
| J22 | PC104 interface | Standard 8bit/16bit PC104 interface, can stack |
| J23 | PS/2 interface | External PS/2 keypad |
| J24 | 8*8 matrix keypad interface | Used to connect keypad input, or as I/O mouth |
| J25 | CAN interface | CAN 2.0 A/B agreement, support PeliCAN mode |
| K1 | Reset button | System reset |
| BT1 | Backup battery | System clock power supply |
| BZ1 | Buzzer | Alarm prompt device |
Linux Software Features
| Item | Content | Function |
|---|---|---|
| Cross-compiler | arm-linux-gcc-3.4.3-1.0.1.tar.bz2 | arm-linux-gcc 3.4.3 |
| Redboot | Version:ecos-2.0 | Provided with source code |
| Support download and writing through serial ports | ||
| Linux Kernel | Version: 2.6.8 | |
| RTC driver, save and restore system time after power off | Provided with test program and source code | |
| GPIO driver | Provided with test program and source code | |
| PC104 expansion driver | Provided with test program and source code | |
| External bus driver | Audio driver | |
| Audio driver | Provided with test program and source code | |
| LCD driver, support 320*240, 640*480, 800*600, 1024*768 resolution | Provided special LCD with debug service | |
| Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
| Serial driver | Provided with test program and source code | |
| CF card driver | Support large capacity storage CF card | |
| Buzzer driver | Provided with test program and source code | |
| Ethernet driver | Provided with test program and source code | |
| 8*8 matrix keypad driver | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
| Watchdog | Provided with test program and source code | |
| File System | jffs2 file system | Provided source code |
| QT | QT development environment | QT routine |
| PC Development Environment | Provided with ubuntu 10.10 Linux OS, VMware 7.1.4 virtual machine and supporting development environment build manual | Convenient for user to next develop |
WindowsCE 6.0 Software Features
| Bootloader | Download and write Eboot through serial port | Download directly to NorFlash through serial port |
| Support user-defined boot logo | 1024*768 resolution, 24 bmp image | |
| BSP Source Code | ||
| BSP Open Source
| RTC driver, save and restore system time after power off | Provided with test program and source code |
| Registry saving,support saving registry information when electricity adjusted | Convenient for user to debug | |
| LCD driver, supporting 320*240, 640*480, 800*600, 1024*768 resolution | Provided special LCD with debug service | |
| Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
| CF card driver | Support large capacity CF card storage | |
| AC"97 audio driver | Support double sound channel audio | |
| Nic driver, 10/100M self-adaptive,can be expanded gigabit nic | Provided with test program and source code | |
| 232, 485 serial driver test | Provided with test program and source code | |
| support 8*8 matrix keypad,also can used as GPIO | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
| PC Development Environment | Provided with supporting EVC development tools, Wince 5.0 plug-in | Convenient for user to next develop |
Technical Support:
• The problems that customer encounter in the process of development on the products• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
Order Infomation
Standard accessories1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)1-wire serial line(a trailer two) (5)2-wire serial line with 9 lines (6)1-wire power switch wiring (7) 1-wire audio switch wiring (8) exquisite packing box| Item | Description | |||
|---|---|---|---|---|
| DVD resources | Linux | Compilers | Cross-compiler arm-linux-gcc | |
Tool software | Supporting terminal, writing, download tools | |||
Device manual | Main components' datasheet of back plane | |||
User manual | About all development and use | |||
Image file | Redboot, kernal, image file of file system | |||
Test source code | Test routines and source codes of all interfaces | |||
| System source | Include Redboot, kernel, file system and QT source code | |||
Schematic | Back plane's schematic in PDF format | |||
Packaging library | Component packaging library of evaluation board | |||
| Windows CE | Tool software | Supporting terminal, writing, download tools, sync software | ||
Device manual | Main components' datasheet of back plane | |||
User manual | About all development and use | |||
Image file | Firstboot, Eboot, NK image file | |||
| Test source code | Test routines and source codes of all interfaces | |||
| BSP package | Related BSP board-level supporting package | |||
| SDK | Related SDK | |||
| Schematic | Back plane's schematic in PDF format | |||
Packaging library | Component packaging library of evaluation board | |||
| LCD options(another pay) | 4.3' LCD module + 4-wire resistive touch screen +USB cable | |||
| 5.6' LCD module + 4-wire resistive touch screen +USB cable | ||||
| 6.4' LCD + 4-wire resistive touch screen + USB cable + inverter | ||||
| 7' LCD module + 4-wire resistive touch screen +USB cable | ||||
| 8' LCD module + 4-wire resistive touch screen +USB cable | ||||
| 10.4' LCD + 4-wire resistive touch screen + USB cable + inverter | ||||
| Module options(another pay) | TTL to LVDS module | |||
| TTL to VGA module | ||||
| Sales hotline | +86-571-89935913 | |||
Customizable Cirrus Logic Android control board mainboard
Application:
• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
