Cheap 4g Modem Motherboard Module

Cheap 4g Modem Motherboard Module thumbnail-1
Cheap 4g Modem Motherboard Module thumbnail-2
Cheap 4g Modem Motherboard Module photo-1

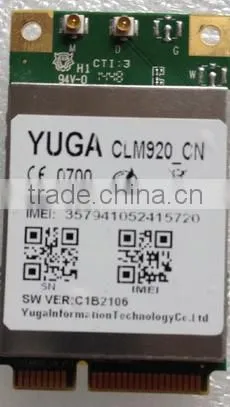

Cheap 4g Modem Motherboard Module photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
qiyang
Model Number:
CEM600
Contact Supplier Request Quote Chat Now
Zhejiang Qiyang Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name qiyang
Model Number CEM600





ITEM Descriptions
CLM920 LTE Module for CMCC
CLM920_EU LTE Module for Europe
CLM920_CN LTE Module for CMCC and CUCC
CLM920_CN3 LTE Module for CMCC,CUCC and CTCC
Data Services GPRS:DL 85.6kbps/UL  85.6kbps
EDGE:DL 236.8 kbps/UL 236.8kbps
WCDMA CS:DL 64 kbps/UL 64kbps
WCDMA PS:DL 384 kbps/UL 384 kbps
TDD-HSPA:DL 384kbps/UL 384kbps
TDD-HSPA+:DL 4.2Mbps/UL 2.2Mbps
HSPA+:DL21.6Mbps/UL 5.76Mbps
DC-HSPA+:DL 42Mbps/UL 5.76Mbps
LTE FDD:DL 100Mbps/UL 50Mbps @20M BW cat3
LTE TDD:DL 61Mbps/UL 18Mbps @20M BM cat3
CDMA 1X:DL 153.6Kbps/UL 153.6kbps
CDMA 1xEVD0r0: DL 2.4Mbps/UL 153kbps
CDMA 1xEVD0rA: DL 3.1Mbps/UL 1.8Mbps
Frequency Bands   LTE(FDD)B1/B3
LTE(TDD)B38/B39
UMTS/HSDPA/HSUPA Band B1
TD-SCDMA B34/B39
GSM/GPRS/EDGE Tri Band 900/1800/1900
Operating Voltage 3.3V~4.2V
Maximum Ajustable Current: 40mA
OS Support  Windows7
Windows 8
Linux
Android
Dimensions (L*W*H)  51mm×30mm
Weight 16g
Ambient
CEMperature  		Operating  -10~ + 55℃ performance guarantied
Extended   -40 ~ +80 ℃℃,for functionalities
Storage  -40 ~ +85 ℃



Company Information



Our Services

Custom Service

Cooperation Mode Based on Core Module Customization The Whole Board Customization
Specification Customize expanded board based on our core module Offer complete mainboard customization based on the process platform we choose for you
Service Provide device selection, design suggestions, plate type design;
Principle diagram design, PCB design/modification, driver debug, driver source code, test source code, secondary development document writing, prototype;
Provide upper development, and the follow-up with long-term technical support, quality tracking service.		 Provide device selection, design suggestions, plate type design
Principle diagram design, PCB design/modification, driver debug, driver source code, test source code, secondary development document writing, prototype;
Provide upper development, and the follow-up with long-term technical support, quality tracking service.
Development Cycle

Provide mainboard test usually in 8-10 weeks(no fly line)

 Provide mainboard test usually in 2-3 months(no fly line)
Deliver Principle diagram, PCB, driver source code, prototype, etc. Principle diagram, PCB, driver source code, prototype, etc.
Service Extension(optional) Offer trial production/batch production, make production process, ensure the quality and delivery time;
EMC/MI Test;
Perfect quality assurance and after-sales service;
Product system, software and hardware upgrades.		 Offer trial production/batch production, make production process, ensure the quality and delivery time;
EMC/MI Test;
Perfect quality assurance and after-sales service;
Product system, software and hardware upgrades.
Expense Low, according to user's  requirements and difficulty level of R&D; The user who choose OEM could return part of R&D costs High, according to user's  requirements and difficulty level of R&D; The user who choose OEM could return part of R&D costs
Warranty

Hardware maintenance service

Hardware maintenance service means providing original factory maintenance,maintenance,repairing and recovering product performance for user’s mother board / core board .Including core board,baseboard,LCD,touch screen hardware fault test,electronic device replacement service.


Software and Hardware upgrading service

Software upgrading service means users installing operation system,installing equipment control software,according to customers’ requirement to customize winCE ,Linux OS . Hardware upgrading service means providing hardware upgrading scheme and hardware installing service.

Warranty Service

All parts product warranty period start form the purchase date, and under warranty is free of charge. The following circumstances products, not in warranty scope:
(1) Over the validation date of warranty;
(2) Belong to the user improper use or artificial damage;
(3) Without effective warranty certificate and invoice (can prove the goods in the warranty period excluded);
(4) Delivery product barcode or model not conform to physical commodity.
