Help CenterCustom Board Ressscale Cortex-A9 I.MX6 Single Board Computer Used In Medic Device Support Linux/Android
Related Products
-
ODM/OEM Fressscale Imx 6 Cortex-A9 Single/Dual/Quad Core Computer On Module SBCNegotiableMOQ: 1 Piece -
ODM High-End Industrial Control Board I.MX6 Solo/Dual/Quad Core With Dual Ethernet/SATA/PCI-e/HDMI/LVDSNegotiableMOQ: 1 Piece
-
ODM /OEM Freescale Cortex-A9 System on Module Linux BoardNegotiableMOQ: 1 Piece
-
'Freescale I.MX6 Development PlatformsNegotiableMOQ: 1 Piece
-
ARM Cortex-A9 I.MX6 Single Board Computer With Industrial ProcessorNegotiableMOQ: 1 Piece
Specifications
i.MX6 Single Board Computer1.Multi-Core:Single/Dual/Quad,1.2GHz
2.OS:Linux/Android/QNX
3.IO:Gb Ethernet,SATA II;PCI-E
I.mx6 Cortex-A9 Support Linux/Android Datasheet
QY-IMX6S-V2(2) embedded mainboard, adopts Freescale i.MX6 processor, Cortex-A9 core with 1G Hz and can be compatible with solo/dual /quad micro processor for upgrade. This mainboard is with standard i.MX6 Dual series:
The i.MX 6Dual family provides dual cores running up to 1.2 GHz with 1 MB of L2 cache and 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support. Integrated FlexCAN, MLB bus, HD grade NEON SIMD Media Accelerator, Triple Play 3D/2D/VG
Accelerator, 1080P video codec,PCI Express and SATA-2 provide excellent connectivity, while integration of LVDS, MIPI display port, MIPI camera port and HDMI v1.4, the i.MX 6Dual provides a scalable solution for consumer, automotive and industrial applications.
ARM® Cortex™-A9,1.2GHz, compatible with solo/dual/quad core;
- 1MB L2 Cache,32 KB instruction and data caches, NEON SIMD Media Accelerator;
- 2D/3D/VG Accelerator,1080P h.264 video hardware codec,support dual 720P video encoding;
- 1x 20-bit parallel, MIPI-CSI2 (4-channel), three simultaneous inputs;
- 2-ch HOST USB HSIC, 1-ch OTG and 1-ch HOST USB integrated PHY;
- 1 industrial gigabit Ethernet MAC(10/100/1000MHZ);
- 2-ch CAN ports, each channel can up to 1 Mbps, support CAN2.0;
- 3 SD/MMC 4.4 and 1 SDXC;
- 5 SPI, 5 UART, 3 I2C, 4 PWM;
- Integrated MIPI-HSI interface, 1-ch PCIe2.0 interface;
- Dual LVDS interface, support resolution up to 2048*1536;
- Freescale PF100 PMU;
- High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection.

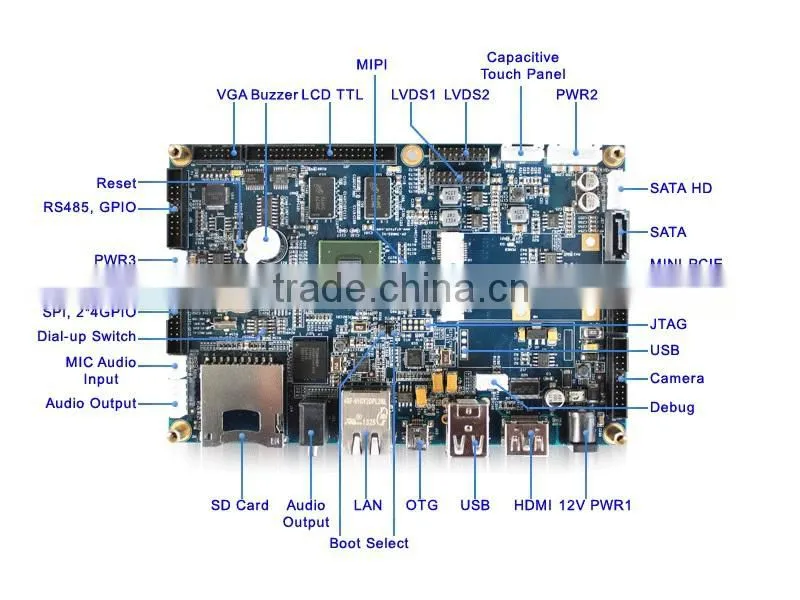

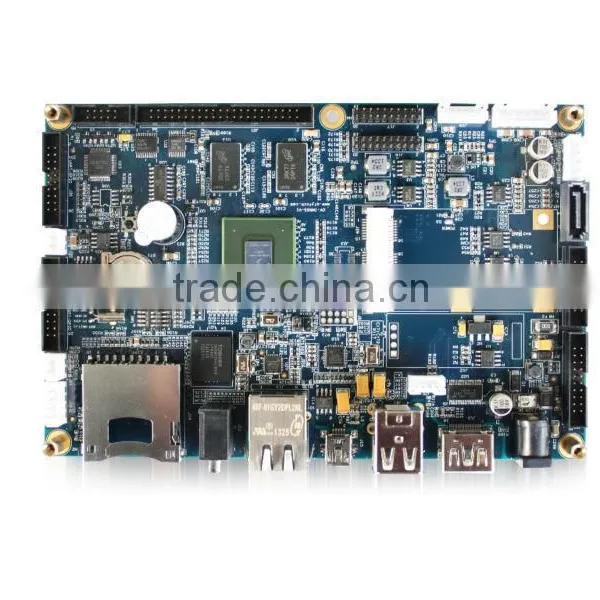

2. I.mx6 Cortex-A9 Support Linux/Android Produce Picture
2.2 Mainboard Resource
Hardware Resources |
CPU |
Freescale i.MX6D processor,ARM® Cortex™-A9 core,1.2GHz |
RAM |
DDR3 SDRAM,4*256MB, total 1GB |
|
Flash |
4GB EMMC |
|
Network |
AR8035 Network Chip, adopt RGMII mode, support 10M/100M/1000M |
|
Communication |
5-ch RS232, 1 port (com0) as the debug UART, 2-ch RS232 Compatible with RS485 |
|
1-ch High speed OTG,4-ch USB, 1-ch connects to MIN_PCIE Interface | ||
2-ch CAN, support CAN2.0, 1-ch TTL Output, 1-ch CAN output | ||
1-ch 10/100/1000Mbps Ethernet port, with ACT/LINK indicator | ||
Display |
18-bit TFT-LCD(Compatible with 16, 24 bits), resolution up to 1920 * 1200 |
|
VGA, can be connected with universal display | ||
2-ch LCDS Interface, each channel can support resolution up to 1920*1200 | ||
HDMI Interface, support HDMI 1.4 | ||
MIPI/DSI interface, dual channels communication speed up to 1 Gbps | ||
Audio |
McASP audio interface; binaural output; MIC audio input |
|
Input Interface |
4-wire resistive touch panel |
|
Standard I2C Capacitive panel | ||
CAMERA Interface, standard interface support OV5642 camera module | ||
Expansion Interface |
MINI_PCIE 2.0 |
|
SIM Card | ||
Memory Interface |
1-ch SD Card interface |
|
1-ch SATA Hard disk interface, SATAII standard, speed up to 3.0Gbps | ||
Other |
Reset circuit, Watch dog, RTC, Buzzer, JTAG interface |
|
Power Input |
+12V power supply, can support +4.75V~+18V wide range voltage supply |
|
Resource |
Development Tools |
Development environment: Virtual Machine VM9.0.2+ubuntu12.04.1 |
Application layer development debug tool | ||
Cross-compiler | ||
Common terminal development debugging tool | ||
Image File |
OS image file, support multiple resolution display |
|
Test Program |
Interface using demo test program and test program source code |
|
Source Code |
Bootloader, kernel, system source code |
|
Manual |
Mainboard User manual,Device Manual |
|
Schematic |
Mainboard structure size chart |
|
Electrical Specification |
Size |
160mm*105mm |
PCB |
8-layer high precision immersion gold process |
|
|
Power Consumption |
≤3W |
|
Operation Temperature |
-20°C ~ +70°C |
|
Operation Humidity |
5% ~ 95%, Non-Condensing |
Our Advantages?
1.Technical Support for lifetime.
2.Open Source.
3.Customisation Service.
4.Supply stably and chronically.
