ODM/OEM Fressscale Imx 6 Cortex-A9 Single/Dual/Quad Core Computer On Module SBC

Specifications

                                                    This series is dual core of the i.mx 6

    ODM/OEM Fressscale imx 6 Cortex-A9 Datasheet

QY-IMX6S-V2(2) embedded mainboard, adopts Freescale i.MX6 processor, Cortex-A9 core with 1G Hz and can be compatible with solo/dual /quad micro processor for upgrade. This mainboard is with standard i.MX6 Dual series:

The i.MX 6Dual family provides dual cores running up to 1.2 GHz with 1 MB of L2 cache and 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support. Integrated FlexCAN, MLB bus, HD grade NEON SIMD Media Accelerator, Triple Play 3D/2D/VG

Accelerator, 1080P video codec,PCI Express and SATA-2 provide excellent connectivity, while integration of LVDS, MIPI display port, MIPI camera port and HDMI v1.4, the i.MX 6Dual provides a scalable solution for consumer, automotive and industrial applications.

ARM® Cortex™-A9,1.2GHz, compatible with solo/dual/quad core;

• 1MB L2 Cache,32 KB instruction and data caches, NEON SIMD Media Accelerator;
• 2D/3D/VG Accelerator,1080P h.264 video hardware codec,support dual 720P video encoding;
• 1x 20-bit parallel, MIPI-CSI2 (4-channel), three simultaneous inputs;
• 2-ch HOST USB HSIC, 1-ch OTG and 1-ch HOST USB integrated PHY;
• 1 industrial gigabit Ethernet MAC(10/100/1000MHZ);
• 2-ch CAN ports, each channel can up to 1 Mbps, support CAN2.0;
• 3 SD/MMC 4.4 and 1 SDXC;
• 5 SPI, 5 UART, 3 I2C, 4 PWM;
• Integrated MIPI-HSI interface, 1-ch PCIe2.0 interface;
• Dual LVDS interface, support resolution up to 2048*1536;
• Freescale PF100 PMU;
• High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection.
•

2.   ODM/OEM Fressscale imx 6 Cortex-A9 Produce Picture

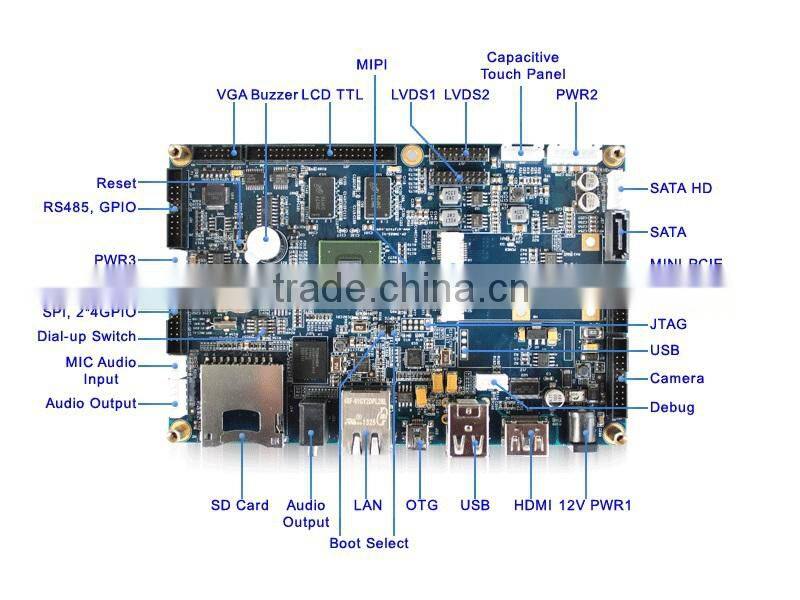

2.2   ODM/OEM Fressscale imx 6 Cortex-A9 Mainboard Resource

Our Advantages?

1.Technical Support for lifetime.

2.Open Source.

3.Customisation Service.

4.Supply stably and chronically.

Patch Factory

Accessory Warehouse

R&D Department

[Notes]

Have an intention & interest in them. Join us.

• pay pal acceptable

Need Hardware Manual &More Information& Consultant ,please add my skype:sally_ma.198907 (24 hours online) E-mail:trade#

Whatapp:0086 13616520351  Line:hey_sally
