ODM High-End Industrial Control Board I.MX6 Solo/Dual/Quad Core With Dual Ethernet/SATA/PCI-e/HDMI/LVDS

QY-IMX6S-B2(2)

(3.5” Freescale ARM Cortex-A9 quad/dual core 1.2G CPU on board SBC, 4USB/AUDIO/4RS232&RS485/2LAN/GPIO/WTD/JTAG/2CAN/Blue Tooth)

Features

On board Freescale ARM Cortex-A9 i.MX61.2G industrial level Solo/Dual/Quad Core Processor

On Board 1GB/2GB DDR3 RAM and up to 32GB EMMC flash(optional high speed)

6 USB2.0 and 6 Serial Ports, 2 100/1000MB Giga LAN supported

2 route Onboard CAN BUS, special designed for industrial application

ARM structure Superior Low power consumption, max 3W

Specifications

General

processor

Freescale Cortex-A9 1.2G CPU Dual/Quad core

l 32K L1 instruction Cache and 1 MB L2 Cache

l Cortex-A9 NEON MPE co-processor

l Incorporate with VPU GPU3Dv4GPU2Dv2GPUVGASRC accelerator

System Memory

l 1G DDR3 SDRAM (2G optional) on board,32bit

l 4GEMMC Flash (/8G/16G/32G optional)

Expansion Interface

CAN

Watchdog Timer

1*32bit WTD

Testing Connector

JTAG

Battery

Lithium 3V

Operation system

Android4.2; Linux2.6.32

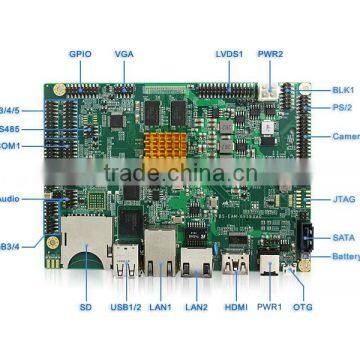

I/O

I/O Interface

2xLAN

6xUSB

1XSATAII

1XMCU(power control)

1XSDIO(Boot OS)

1xAudio

6XRS232

1xRS485

1XHDMI

2XLVDS

1XVGA(RGB)

1X Camera

1xGPIO (16bit)

1X USB OTG A

2xCAN

EMMC(Boot OS/App.)

Disk Storage

l SATAII 3.0Gbps hard-disk connector support big capacity storage device

l SDIO slot support OS booting

COM

6 serial ports, 6 support 4-wire RS232 and 1 support 8-wire 9bit RS485

USB

1 USB2.0 OTG (update) and 6USB host up to 480Mbps

Audio

Audio MUX

Video

10 bit Digital Camera input support

GPIO

16 routes,8in/8out

Blue tooth

2.4G blue tooth module on board

Ethernet

Chipset

IEEE1588

Speed

2 X 1001000MB

Display

LVDS

Two 24-bit LVDS display port, up to 60fps 1080P decode

HDMI

HDMI 1.4 port

Mechanical and Environmental

Dimensions (L x W)

146mm*102mm

PCB Layer

8 Layers industrial level , RoHs

Operating temperature

-40~85 degree centigrade / 0~ 60 centigrade

Operating Humidity

5~95 percent relative humidity, non-condense

Power

Power Supply

Single 12V DC

Power consumption

Max 3W
