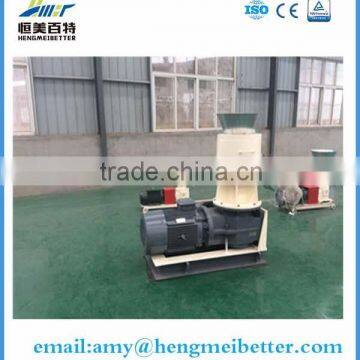

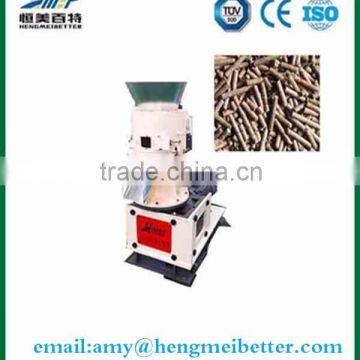

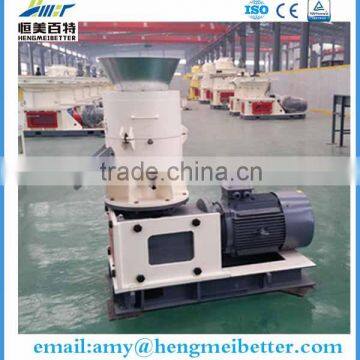

high effcient small wood pellet mill with good feedback
The production description of small wood pellet mill
Our company produces the ZLPM series pellet mill, which absorb elite of Germany KAHL pellet mill, the heart parts “die” and “rollers” are made by high alloy steel wear resistant material according to different materials, have long lifetime. The transmission parts adopt auto differential, drum juncture or universal joint drive. Little noise, low energy consumption, high efficiency and easy operation the series pellet mills were developed elaborately to be our patent products. The products are applied to large-sized, medium sized and small biomass energy fuel plants, wood working factory, municipal refuse
cleaning plant, organic fertilizer plant, chemical plant, animal feed plant and fishery etc. With low investment, quick effective, no risk, our pellet mills are the most ideal compact shaped equipments.
The parameters of small wood pellet mill
|
Product Name |
Model |
Power (KW) |
Capacity (T/H) |
Pellet Diameter (MM) |
Dimension L×W×H (MM) |
Weight (T) |
small wood pellet mill |
ZLPM120 |
3 |
feed:0.07-0.1/ energy:0.01-0.03 |
4-6 |
1150×300×550 |
0.105 |
ZLPM150 |
7.5 |
feed:0.1-0.3/ energy:0.02-0.05 |
1280×480×820 |
0.2 |
||
ZLPM200 |
11 |
feed;0.3-0.5/ energy:0.05-0.1 |
1300×500×850 |
0.26 |
||
ZLPM250 |
15 |
feed:0.4-0.7/ energy:0.1-0.3 |
1400×600×1000 |
0.56 |
||
ZLPM280 |
22 |
feed:0.5-0.8/ energy:0.2-0.4 |
1720×600×1200 |
0.7 |
||
ZLPM300 A/B |
30/22 |
feed:0.6-1/ energy:0.3-0.5 |
4-8 |
1800×670×1600 |
0.76 |
|
ZLPM2-350 |
37 |
feed:0.5-1 fertilizer:0.5-0.8 |
1800×850×1300 |
1.5 |
||
ZLPM2-450 |
45 |
feed:1-1.5 fertilizer:0.8-1.2 |
4-10 |
1800×850×1400 |
1.8 |
|
ZLPM3-350 |
37-4 |
feed:0.7-1.2/ fertilizer:0.6-1.2/ energy:0.3-0.5 |
1800×1500×1750 |
2.3 |
Our products have many models, can satisfy your different needs.
The advantage of small wood pellet mill
1.The transmission part is equipped with automatic filtering circulating lubrication system, ensure that the gear
and shaft bearing always lubrication;
2.Granulating chamber is provided with an automatic intermittent supply oil, lubricating system, ensure the
lubrication pressure wheel bearing;
3.Reduce unnecessary friction cone pressing wheel;
4.There is an observation door, check at any time, convenient maintenance;
5.Gear transmission with a fan body, ensure good heat dissipation effect.
The scope of application of small wood pellet mill
1.high efficient wood pellet mill is mainly used for feed and animal husbandry industry,
cattle, horses, sheep, livestock etc,chicken, pig, rabbit, duck, goose, fish, ostriches, camels, dove small plant breeding and feed factory.
2. high efficient wood pellet mill can be used as a biomass energy particles.
3. high efficient wood pellet mill can be used as animal manure, sludge, biogas residue as
organic fertilizer,inorganic fertilizer,compound fertilizer and other fertilizer granules.
The working principle of small wood pellet mill
The material enters the feed pellet machine chamber by mould, rotating friction press wheel rotation,so that the
material extruded into mould hole, business secret into a cylindrical bar, after cutting the outlet of cutting, forming particles, get out of granulating chamber.
The project of small wood pellet mill
You only need to tell us your request, we will design a reasonable production line for you.
Packing
Wood case; air cushion packaging; metal packaging
Shipping
Company Information
Shandong Hengmei-Better Ennovation Equipment Co., Ltd. is a domestic large-scale new energy
environmental protection equipment manufacturers in China. The registered trademark is "Hengmei Better".
Our company has combined Research and Development, Production, Sales and Service in one, and our main
product have Construction Waste Crushing and Recycling Workstation, New Energy Particle Machinery, Feed
Machinery, Organic Fertilizer Machinery, Broken machinery. Totally, have 56 kinds of products, more than 200
models, which make our company the most professional development and production of high-tech enterprises
of new energy environmental protection machinery manufacturer in China.
Customers
Our high efficient wood pellet mill have been exported to lots of Europe, South America, Southeast Asia countries, and set agents in Brasil ,Canada, Germany, America, South Africa, Australia, India,Vetnam, Malaysia and so on countries.
FAQ
1. What's the delivery time?
We will deliver the product in 7-15 days after receiving the deposit.
2. What's your payment terms?
We can accept various payment terms if it is convenient for you.
3. Can you send the sample first?
We can send the sample first for you.
4. what's your MAQ?
Our MAQ is 1 set.
5. What's the lifetime of the wearing parts?
The material of our product is of high quality, and the lifetime of our wearing parts is twice longer than the
others,including the roller skin, die and bearing.
6. What is your warranty?
12 months except the spare parts.
7. Will yousend engineers to install the plant?
Of course yes,but at an extra cost will be paid by customers. Or you can get local contractors to do the
commissioning and we send one supervising engineer.
8. Do you have some foreign customers useing your equipments?
Yes , we have customers all over the world.
Certifications
In order to quote the best price, please let us know the info:
1, What is your raw material?
2,What is the raw material size?
3,What is the raw material moisture content?
4,What is the capacity do you need?
5, Do you need automatic system or manual packing?
If you are interested in this machine, please do not hesitate to contact us.
We are sure that we will offer you the best pellet mill and service.
We are anticipated to cooperate with you.
