Specifications
mini machining centera)Control System : Spain FAGOR / Taiwan SYNTEC
b)Spindle Speed: 18000 rpm
c)Rapid Speed: 10000 mm/Min

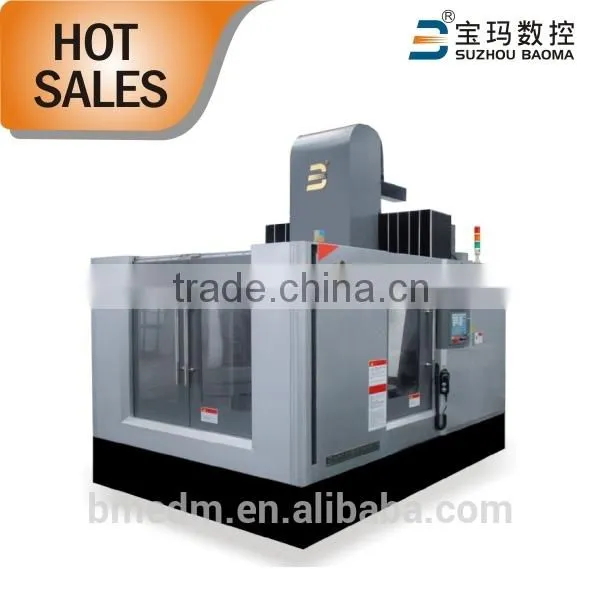

HIGH EFFICIENT EDM ENGRAVING AND MILLING mini machining center BMDX10080
a)Product Description
CNC Engraving & Milling Machine BMDX10080 Parameters
Table Travel | X/Y/Z Axis | mm | X 70 | |
Y 1000 | ||||
Z 220 | ||||
Table upper surface to spindle nose end face | mm | 70/290 | ||
Control System |
| Syntec 10A | ||
Gantry Width/height | mm | 1200/895 | ||
Protective door width/height | mm | 1100/370 | ||
Accuracy | Position precision | mm | ±0.005/300 | |
Repeat position precision | mm | ±0.003/300 | ||
Working Table | Table size | mm | 1050X1100 | |
Table load | kg | 800 | ||
Power[X/(Y1,Y2)/Z)] | kw | 1.8,1.8/1.8,1.8 | ||
T Shape Groove | mm | 18TxP212x5 | ||
Distance between the table and the ground | mm | 888 | ||
Spindle | Turning speed/power/taper hole | Quantity | piece | 11 |
Type |
| Electric spindle | ||
Taper hole |
| ER11 | ||
Speed | rpm | 24000 | ||
Motor power | kw | 0.8 | ||
Distance between spindle | mm | 70 | ||
Feeding speed | Feeding speed[X/(Y1,Y2)/Z] | mm/min | 15000 | |
Cutting speed [X/(Y1/Y2)/Z] | mm/min | 6000 | ||
Cooling | Working solution | pcs | vertical multi stage centrifugal pump | |
Spindle cool type | pcs | Spindle cooler | ||
Machine size and weight | Machine height | mm | 3122 | |
Floor space | mm | 2918x5660 | ||
Net weight | kg | 13000 | ||
- The opening protector design makes big work piece loading easily.
- In design we use the advanced finite element software to do dynamic simulation and construction analysis in order to ensure the machine possesses the best construction rigidity, machining precision and machining steady.
- X, Y, Z use precision ball bearing screw, all have be hauled advance, that will ensure machine to get the best precision and make the position error to the lowest.
- The slop bed and the big capacity water tank make scrap to be cleaned easily.
- The one key to make sure the machining result excellent is high speed and precision spindle. The power source for small tool engraving comes from the electric motor of high speed and precision spindle. If you want to make the small tool working in good condition, the spindle electric motor has the follow characteristics: high speed rolling, small rolling shake, and small rolling noise.
- Excellent design make the machine so good operation.
- Using the advanced cooling-water machine to cool down the spindle, make sure the spindle keeping long life and machining having high precision.
Our company offer Taiwan SYNTEC, LNC and Germany PA system for the customer’s request, and try our best to offer you the best products.
- Taiwan Syntec940i specialist control system
- Be able to connect the man-machine communicated interface of Easy view and Digital
- Wide range to connect with other equipment
- Convenient to communicate through the figural interface
- Convenient to renew the software through the mobile hard disk
- Control several axes in different synchronous way by PLC
- The function of video mending
- Nice panel design and steady controller design
PACKING:
Standard Packing List
| No | Item | Specification | Quantity | Remark | |||||
|---|---|---|---|---|---|---|---|---|---|
| 01 | Main machine | 1 | Include Electrical box | ||||||
| 02 | Cooler tank | 1 | |||||||
| 03 | Foundation | 6 | |||||||
| (1) | Screw | M20*1.5 | 6 | ||||||
| (2) | Foundation nut | 6 | On machine | ||||||
| (3) | Nut | 6 | |||||||
| (4) | gasket | 20 | 6 | ||||||
| 04 | Document box | ||||||||
| (1) | Manual | 1 | |||||||
| (2) | Quality document | 1 | |||||||
| (3) | Controller system manual | 1 | |||||||
| (4) | Handle wheel | 1 | |||||||
| (5) | Three color alarming lamp | 1 | On machine | ||||||
| (6) | Working lamp | 1 | On machine | ||||||
| 05 | Accessories | ||||||||
| (1) | ER25 tools holder | 1 | |||||||
| (2) | Compose pressure board | M12 | 1 | ||||||
| (3) | Transfer line | 1 | |||||||
| (4) | Cutting working fluid | Rate 1:20 | 10 litre | ||||||
| (5) | Spindle working fluid | Rate 1:20 | 10 litre | ||||||
Standard accessories:
1. Auto lubrication system
2. Full closed sheet metal cover
3. Three color alarming lamp
4. Foundation block
5. Operation and maintenance manual
6. Composite fixing plate
7. flat clamp
8. ER25 clamp 4-12
Optional spare parts
| No. | Item | ||
|---|---|---|---|
| 1 | Oil chiller for spindle. | ||
| 2 | Tool presetter. | ||
| 3 | Assistant working table. | ||
| 4 | 4th Axis | ||
| 5 | Magazine |
