Smoke Absorbing System for Line-production

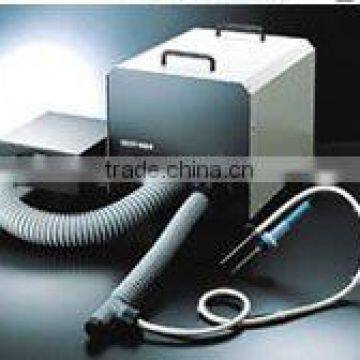

Name: Smoke Absorbing System for Line-production
Brand: hakko
SKU: 106962181
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

hakko

Shenzhen Eles Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name hakko

Specifications

Convenient operation-easy to install flexible ducts permit quick and simple system adaption to longer or relocated production.

Convenient operation-easy to install flexible ducts permit quick and simple system adaption to longer or relocated production lines

Highly efficient operation-fumes and flux are absorbed at their source and trapped by a double filter system.

One HAKKO 494 system handles Max.10 soldering irons.

Frequency	50Hz	60Hz
Power Consumption	150W	200W
Static Pressure(mm/Aq)	240	325
Absorption Capacity	1.56m²/min	1.82m²/min
Length of Dust(Inlet)	< 20m
Length of Dust(Outlet)	< 5
Outer Dimensions(w/o Duct)	322(W)x300(H)x385(D)mm
Weight(w/o Duct)	Approximately 18Kg
Above Mesurement Value : Body only.

Part No.	Name / Specification	Contents
C1029	Absorption pipe set A/ DASH, 900M/L	Absorption pipe .....1 Silicone hose/1 m (3.28 ft.) .....1 Hose coupling band .....5 Metal fitting for absorption pipe .....1
C1030	Absorption pipe set B/ DASH, MACH-I (920, 921, 922)
C1031	Absorption pipe set C/ MACH-I (918)
C1033	Absorption pipe set E/ MG30 W - 100 W
C1034	Absorption pipe set F/455
C1035	Absorption pipe set G/456
C1086	Absorption pipe set H/902, 904	H contains cap nut (1) and Wave washer (1), additionally.
C1540	Absorption pipe set R/ FM-2021, FM-2025, FM-2027, FM-2028, FX-838, FX-888, 917, 907, 908 and more	Absorption pipe .....1 Silicone hose/1.5 m (4.92 ft.) .....1 Hose coupling band .....5 Metal fitting for absorption pipe .....1
