Specifications
DISPENSING CONTROLLERCIRCULAR DISPENSING DEVICE
Model :TP-50

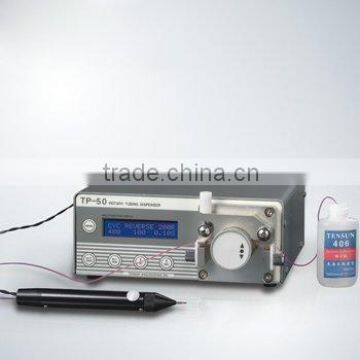

HIGH-PRECISION LCD ROLLER DISPENSING CONTROLLER TP-50
Name : HIGH-PRECISION LCD ROLLER DISPENSING CONTROLLER
Model : TP-60
Description :
1.The unique durable rotor devices can efficiently prolong the life of the tubes so as to cut off the cost
2.LED display, clear display of the parameters.
3.Convenient manual switch.
4.No need of air pressure, easy to operate.
5.High precision up to 0.1 rolling amount.
6.With functional hot key, easy to assembly, no more boring adjustment.
7.Standard level signal input port, automatic equipments can be connected for control.
Specification
Control method | electronic tube compressing |
Mode | cycling/Quantitative/Manual |
Dispensing amount setting | 0°~999° |
Suck back amount setting | 0°~99.9° |
Interval setting | 0~9.99sec |
Minimum amount | 0.0001ml |
Dispensing rate (rotating rate) | 0~200 times/min |
Repetitive positioning accuracy | ±0.005% |
Special function | leak-proof vacuum adjusting organ |
Input/output signal | input--without contact or with contact, |
Power | AC100V~110V, 60Hz |
Dimension | 218mmx118mmx98mm |
Weight | 3.5kg |
Application
For high-precision dispensing such as plug connector, keys of mobile phone, keys of remote control, VCD,DVD optical head, magnetic head, solution packing dropping, etc.
Materials for dispensing
Liquid with viscosity under 10000cps such at Loctite adhesive, instant adhesive, electrolyte, ink, liquid medicine, oil, etc.
Usage
Adhering, fixing, dot coating, line coating and so on.
