Specifications
DISPENSING CONTROLLERCIRCULAR DISPENSING DEVICE
Model : RDU-300

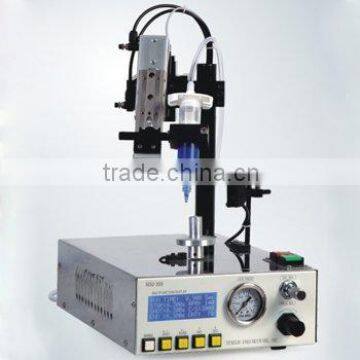

CIRCULAR DISPENSING DEVICE RDU-300
Name : CIRCULAR DISPENSING DEVICE
Model : RDU-300
Description :
1.4*24 LED display, clear display of the parameters.
2.Set the advance or delay time of dispensing at will, and avoid ¡°piling up¡± and drawing.
3.Equipped with SMC double-rod slide cylinder, keep the dispenser swift and stable, eliminate mechanical error.
4.Equipped with X-Y fine-turning table, realize precise positioning and fast adjustment organ setting.
5.Control the dispensing rate at will with precise stepping motor.
6.Embedded with precise dispensing controller, no need of external controller.
7.The work can be made more humanized with magnetic and optical switch.
8.With dispensing counting and alarming function, get to know the times at any time.
Specification
Rotating diameter of working platform | 0~¢145 |
Driving mode | precise stepping motor |
Motor speed | 0~200 r/min |
Loading | any TENSUN dispensing machine can be loaded |
Mechanical repeat precision | ±0.01mm |
Up and down frequency | above 100 times/min |
Input/output signal | Input--without contact or with contact, |
Air pressure | over 0.3Mpa |
Power | AC100V-110V,60Hz |
Dimension | 230mmx320mmx75mm |
Weight | 6kg |
Application
Dot and round glue application such as micro motor, watch, speaker, optical head, etc.
Materials for dispensing
soldering tin, silver paste, UV adhesive, lubricant, epoxy resin, fast cure adhesive,silica gel resin and so on.
Usage
Adhering, overwrapping, coating, sealing, round coating and so on.
