Specifications
automatic bottle blowing machineStable performance with advanced PLC
Conveying preforms automatically with conveyor
Strong
automatic bottle blowing machine

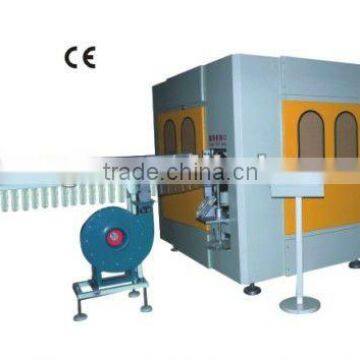

YZ-6 FULLY AUTOMATIC BOTTLE BLOWING MACHINE.
Features:
Stable performance with advanced PLC
Conveying preforms automatically with conveyor
Strong clamping force with high
Procedure:
Step 1. Put the preform into preform container and the conveyer will take the preform to orientation units automatically.
Step 2. Load the preform at neck up to preform holder, and then preform is conveyed into baking tunnel.
Step 3. After heating, preform is conveyed into the blow station, then close the mold, stretch and blow under low pressure and high pressure, exhaust, open the mold.
Step 4. The finished bottle is taken off by automatic discharging system
Paramters,
ITEMS | UNIT | YZ6 |
No. OF MOULD | SET | 6 |
WORKING PRESSURE | Bar | 7-8 |
AIR BLOWING PRESSURE | Bar | 30 |
HEIGHT OF BOTTLE | mm | 330 |
STROKE OF MOULD OPENING | mm | 130 |
THICKNESS OF MOULD | mm | 190 |
HEAT UNIT GROUP | Group | 4 |
HEATED-LIGHT LAYER | Layer | 9 |
MAX. HEAT POWER | kw | 35 |
VOLTAGE | V | 220-380 |
FREQUENCY | Hz | 50/60 |
PREFORM LENGTH | mm | ≤180 |
BITTLE NECK DIAMETER | mm | 20-28 |
BOTTLE DIAMETER RANGE | mm | 20-115 |
PREFORM RAW MATERIAL | kg | PET |
VOLUME RANGE | Layer | 0.2-2.25 |
CAPACITY FOR MINERAL BOTTLE | Pcs/h | 7500 |
WEIGHT | kg | ≤5800 |
DIMENSION OF MAIN MACHINE | cm | 310*231*198 |
DIMENSION OF HEATER | mm | It is the section of the main machine and contained it. |
PREFORM-TIDIED MACHINE SIZE | mm | |
DIMENSION OF ELECTRICAL BOX | mm |
