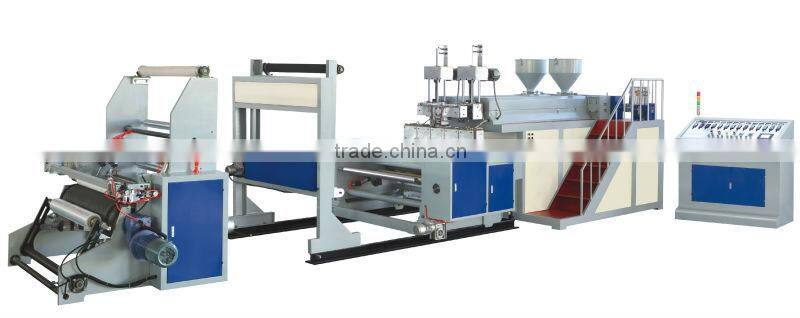

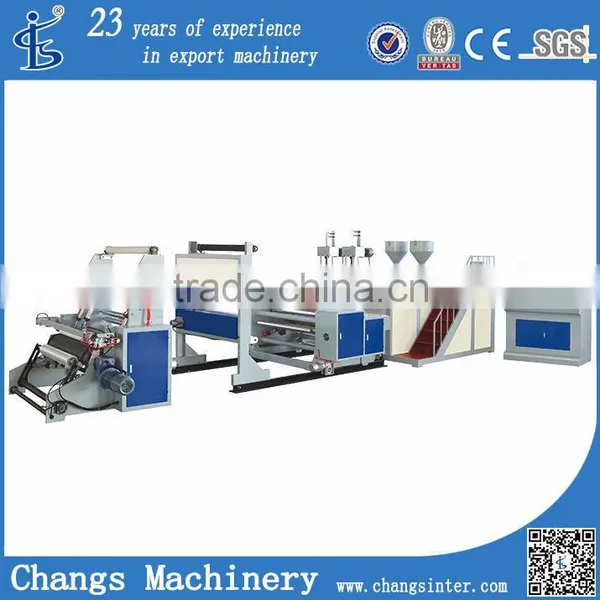

Help CenterSJDD Double-Layer Stretch Film Making Machine(Casting Film Extruder)
Related Products
-
SJD-660 Automatic Plastic Thermal Forming Machine (Plastic Cup Making Machine)-2US$ 10,000 - 50,000MOQ: 1 Set -
SBCP-450 Full-automatic Plastic Cup Packing Machine-3US$ 2,000 - 8,000MOQ: 1 Set
-
SBCL Series Automatic Cup Lid Forming Machine-4US$ 3,000 - 50,000MOQ: 1 Set
-
SBCF-700/1200B High Speed Vacuum Forming Machine(Blaster Forming Machine)US$ 10,000 - 80,000MOQ: 1 Set
-
SJDSD Double-layer Plastic Sheet Extruder-2US$ 1 - 30,000MOQ: 1 Set
Technical Parameter:
Model |
SJDD/100-65×2 |
SJDS/1000-80/50 |
Screw diameter |
65mm×2 |
80mm/50mm |
L/D |
30:1 |
30:1 |
T-die width |
1300mm |
1300mm |
Film width |
1000mm |
1000mm |
Film thickness |
0.01-0.03mm |
0.01-0.03mm |
Max output |
90kg/h |
90kg/h |
Heating power |
64kw |
66kw |
Motor power |
18.5×2kw |
30kw/11kw |
Total power |
104kw |
110kw |
Weight |
3000kg |
3000kg |
Overall dimension |
9000×2350×2400mm |
9200×2350×2400mm |
Power |
380V/3Ph/4L/50Hz |
|
USE:
This machine set is used for producing LDPE and LLDPE stretch film, which is equipped with single screw, the extruded stretch film is both sides adhesive.
If the machine adopts double screws, the two hoppers should use different type of material,
one side of the extruded stretch film is adhesive and the other side is normal.
It is widely used for packing architecture and hardware parts etc.
FEATURE:
1.Screw and cylinder are all made of 38CrmoAIA alloy and treates by nitrogen.
It has advantage of corrossion resistance and endurance etc .
2.The cooling device adopts cycle water cooling :provide the best transparent effect of the stretch film.
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
