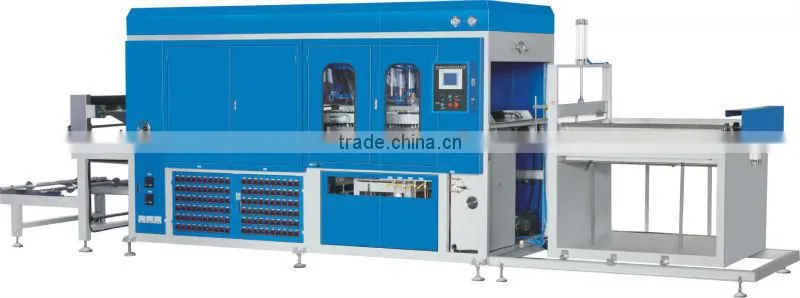

Help CenterSBCF-700/1200B High Speed Vacuum Forming Machine(Blaster Forming Machine)
Related Products
-
SJDSD Double-layer Plastic Sheet Extruder-2US$ 1 - 30,000MOQ: 1 Set -
SJDLY-90 Double-Layer Plastic Sheet ExtruderUS$ 10,000 - 80,000MOQ: 1 Set
-
SJDTW-4 Automatic Tube Wrinkle Making MachineNegotiableMOQ: 1 Set
-
SJDJH Straw Packing Machine-2NegotiableMOQ: 1 Set
-
High Speed Automatic Disposible Plastic Tea Cup Making/thermoformg/injection Machine for Sale/priceUS$ 10,000 - 50,000MOQ: 1 Set
Technical Parameter
Model |
SBCF-700/1200A |
SBCF-700/1200B |
Forming length |
760-1200mm |
760-1200mm |
Forming width |
500-700mm |
500-700mm |
Forming height |
≤165mm |
≤165mm |
Speed |
60-720cycle/h |
60-720cycle/h |
Electro-thermal power |
24kw |
24kw(upper)/18kw(lower) |
Vacuum motor power |
3kw |
3kw |
Pumping rate |
100m3/h |
100m3/h |
Air compressor power |
7.5kw |
7.5kw |
Air displacement |
0.9m3/min |
0.9m3/min |
Weight |
3000kg |
3500kg |
Dimension |
7950×1450×2550mm |
7950×1450×2550mm |
Power |
380V/220V 50Hz |
|

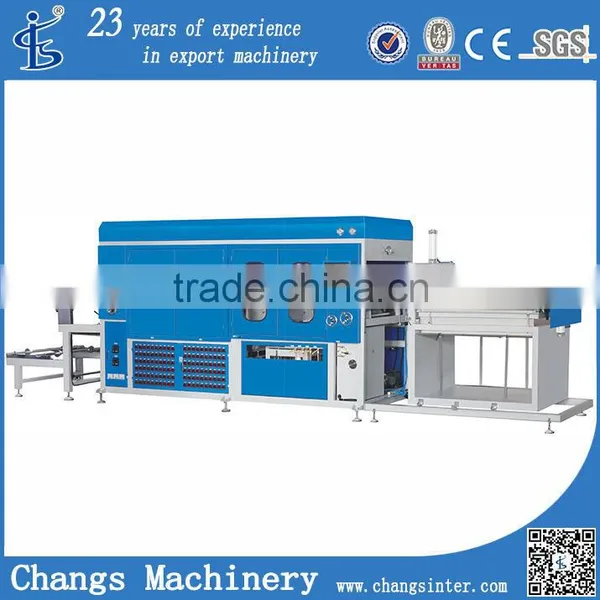

Automatic Computerized Thermoforming machine is designed by the principle of mechanical-electrical-pneumatic integration.
It adopts PLC control system, panel and digital power control.
This full-automatic forming equipment for thermoforming plastic sheet includes feeding, heating; forming, cooling, mold ejecting, cutting at one blow.
Scope of application :
This machine is mainly applied to plastic sheet material molding.

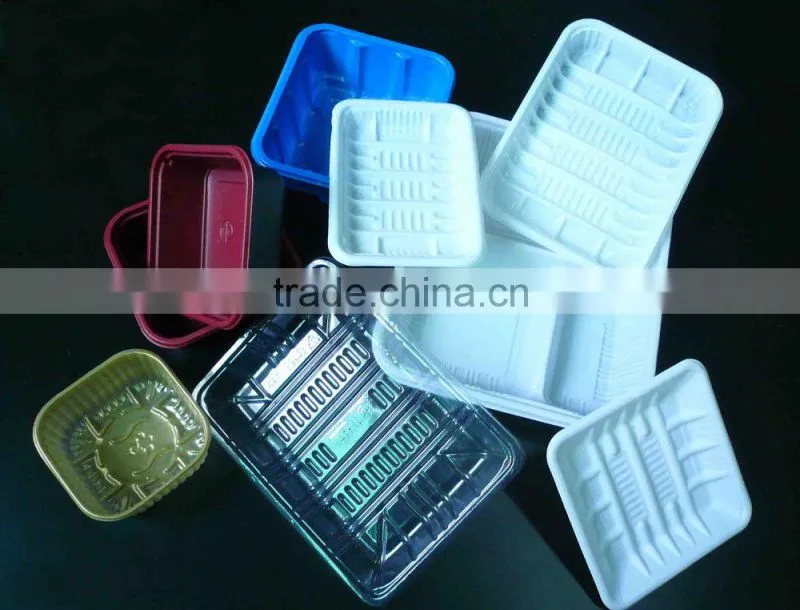

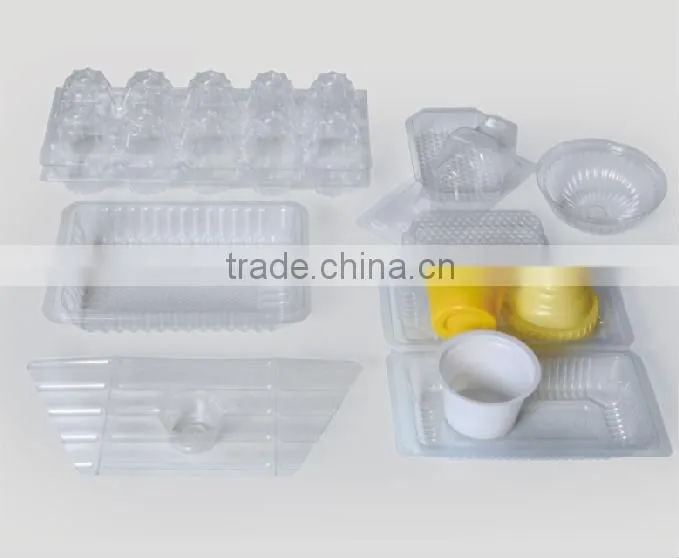

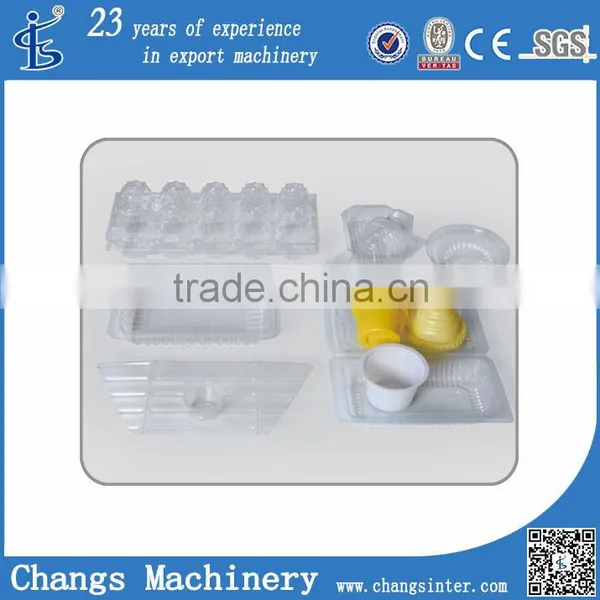

Such as PSHIPSPVCPETPP and flocking sheet,etc.which produce all kinds of trays,trays for medicine injection,oral liquid,vegetables ,telephone,cookies,tool,
hardware, electron and disposable tableware etc.

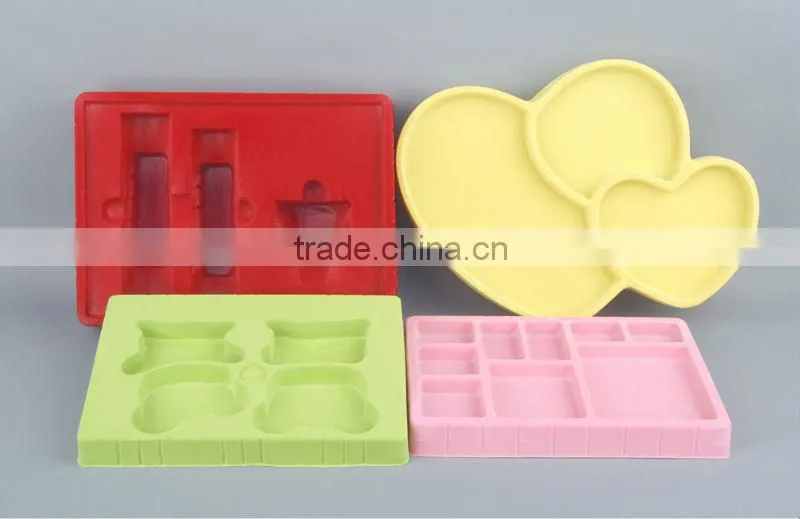

Sample:
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
