Technical parameter:
Model |
SJDSD-105/80 |
SJDSD-105/90 |
SJDSD-90/50 |
Main Screw dia |
105mm |
105mm |
90mm |
Minor Screw dia |
80mm |
90mm |
50mm |
Calender roller dia |
293mm |
293mm |
420mm |
Sheet thickness |
0.3-2mm |
0.3-2mm |
0.3-2mm |
Max output |
170kg/h |
190kg/h |
250kg/h |
Main Motor power |
45kw |
45kw |
75kw |
Minor motor power |
30kw |
30kw |
22kw |
Total power |
116kw |
120kw |
186kw |
Weight |
8000kg |
8200kg |
9500kg |
Power |
380v/3p/4L/50Hz |
||
Overall dimension |
10500×4200×2700mm |
10500×4200×2700mm |
12000×4200×2700mm |

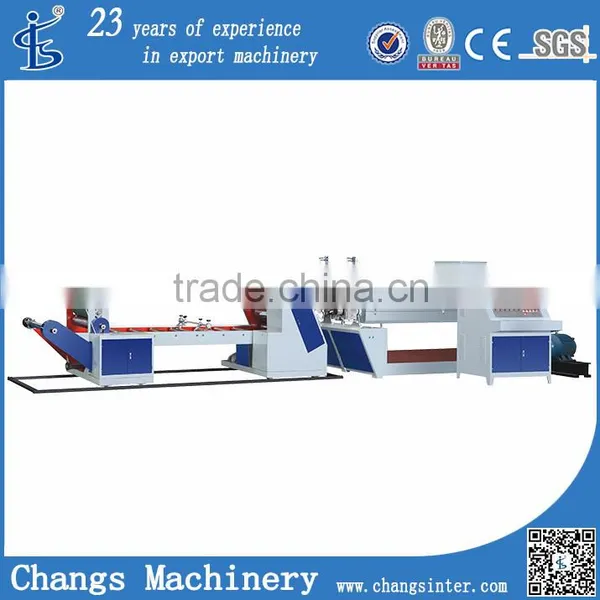

SJDSD series Double-layer plastic Sheet Extruder is developed by taking the advanced technology from both home and abroad into consideration on the basis of the single-layer plastic sheet extruder.Its applicatable in producing multilayer PP,PE and PS sheet,which are used to produce drinking cups,Ice-cream cups,yogurt cups packing boxes and so onplaatic vessels. Model SJDSD Double-Layer Plastic Sheet Extruder is one of the main products of our company,it has passed the CE certification.

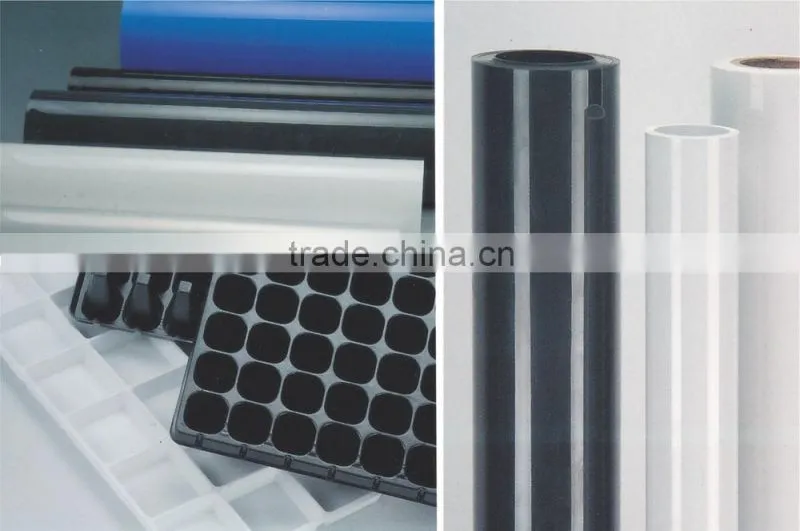

Sample:
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
