Product Application

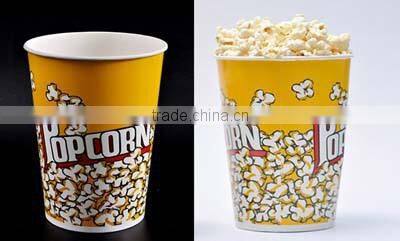

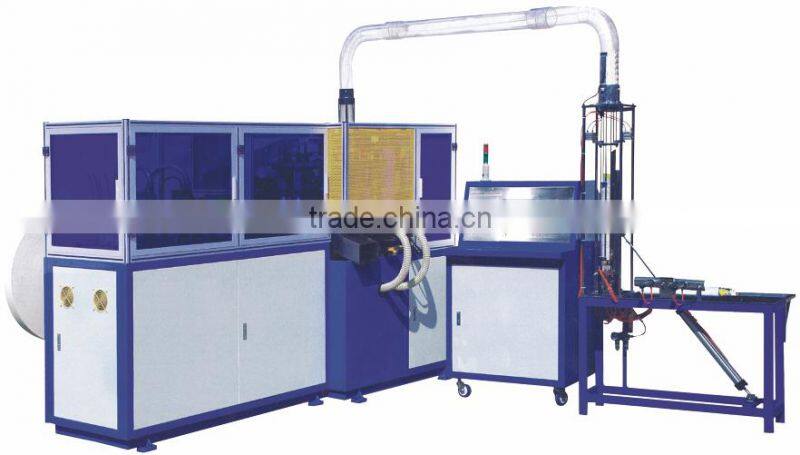

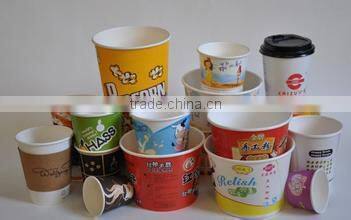

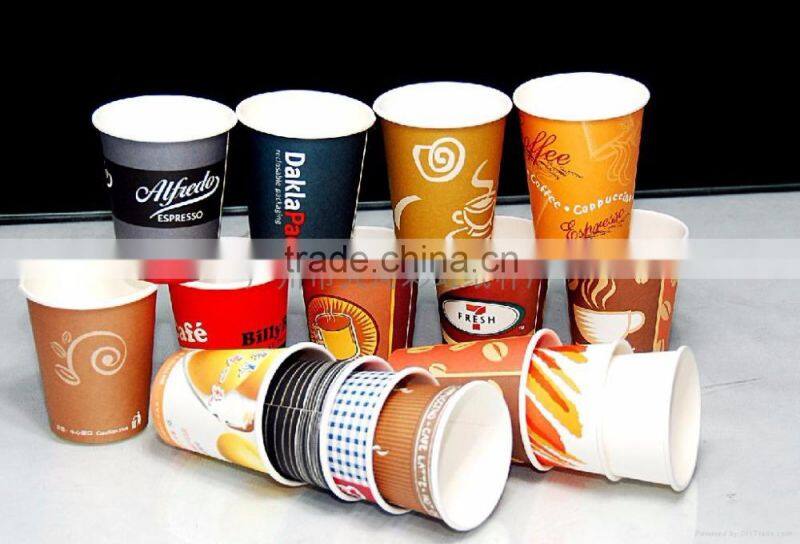

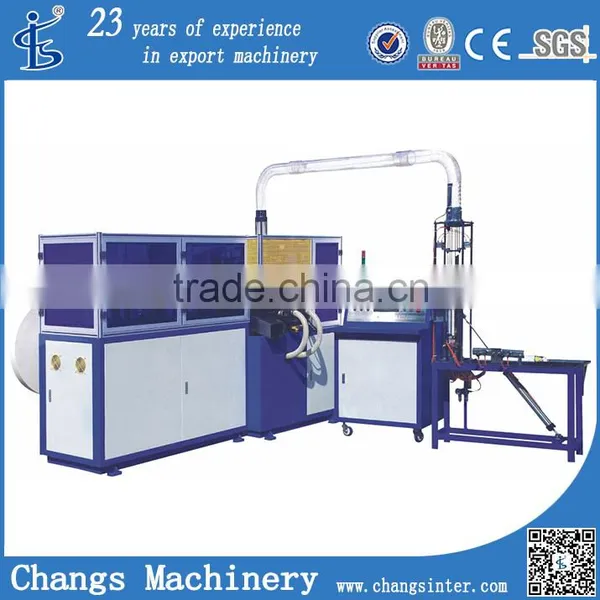

JBZ-12H High Speed Paper Cup Forming Machine is a high speed automatic machine with multi-work ing station. It produces of automatic paper feeding, sealing, silicon oil lubrication, bottom punching, heating, knurling, curling, and cup discharge. This kind of cup can be for beverage, ice cream etc. This machine has adopted new technology ,imported hot blowing equipment, and imported PLC system. It has good feature of precise equipment, and it is the first choice for the paper cup manufacturer.
Main Features
Relianility
JBZ-12H smart middle spped paper cup forming machine is provided with a advantages of high performances, high efficiency and high quality.
The overall steel plate machine body and oil-spraying lubrication system ensures normal and stable long-term operation of the equipemnt.
High Efficiency and Energy Consevation
Advanced high-precision cylindricalcam driving unit work ng with gear drive system make sure the precisely working of every station.Bottom paper feeding controlled by servo tracking system,.and raw material paper can be saved effectively.
Paper bottom heating system (Switzerland Leister)uses 2 steps flameless heating.Every step in production is monitored by photocell(Japan Omron) and be reported.
User-friendly design
the function of machine is controlled by human-computer interface and PLC system.Manual operation can be replaced by automatic paper cup counting and collection table with appropriate setting.
1. paticular designing of automatic paper detaching for paper sucking station.
2. automatic alarming while machine is lack of material paper.
3.multiple paper (no paper sucking or paper bloking ) detection and stop system.
4.automatic paper tracking and bottom paper feeding.
5.mornitoring and auto-stop in case of no-paper during sealing procedure.
6.ultrasonic probe derection system, no sonic while no paper.
7.mornitoring and auto-stop in case of no-paper-tube during side sealing.
8.machine hand with cup barrel detecion and bottom paper automatic feeding.
9.detection and stop while servo transmitting no bottom paper, onlique bottom paper.
10.molding cup off detection and stop
11.molding cup miss detection and stop.
12.18 stations can be set to screen and separate.
13.the machine won't start if the bottom forming has not reached the setting temperature.
14. if the machine doesn't work for 5 minutes, it will turn to energy saving model automatically.
15.the manual cup holding, discharge funtion are installed on the cup collector.
16. PLC control system can set the automatic stop of paper collection while no paper cup coming out.
17. the angle of controlling of encoder can be adjusted at random.
18. high position stop function (equipments can be separated automatically after the stop- running)
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
