JBZ-S Paper Cup Forming Machine

JBZ-S Paper Cup Forming Machine photo-1
US$ 10,000 - 13,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Cup Machine
Processing Type:
Paper Folding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Paper Cup Machine
Processing Type Paper Folding Machine
Place of Origin Zhejiang, China
Brand Name changs
Model Number JBZ-S
Voltage 380V
Power(W) 6.5KW
Dimension(L*W*H) 2800*1350*1800mm
Weight 1600KG
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

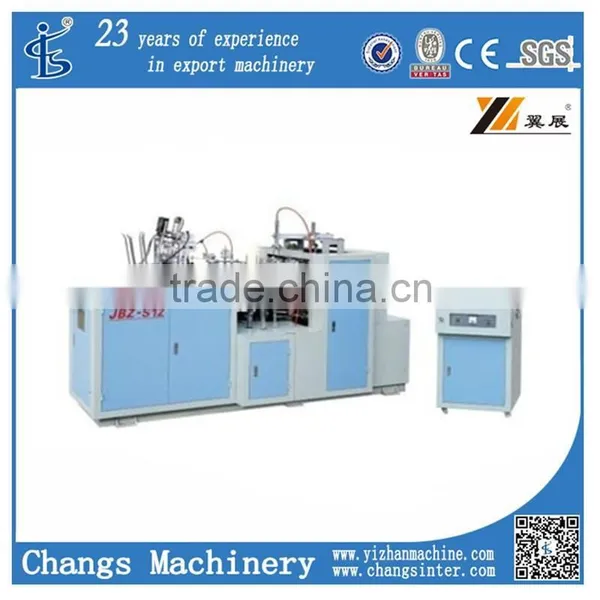

JBZ-S Paper Cup Forming Machine is an automatic machine with multi-working station. It produces two-side film-coated paper cup through the procedure of automatic paper feeding, ultrasonicwelding, oil silicon lubrication, bottom punching, heating, knurling, curling and cup discharge. The sealing system is ultrasonic sealer, so this model is suitable for making two side PE coated paper with full printing design cups. This cup can for both hot and cold drinking, such as soft drinking, ice-cream and coffee etc.

Model
JBZ-S12
JBZ-S16
JBZ-S22
CUP SIZE
6, 8, 12 OZ
12, 14, 16 OZ
16, 22 OZ
RAW MATERIAL
two side PE coated paper and one side PE coated paper
TOP MOUTH DIAMETER
50-95
BOTTOM  DIAMETER
35-70
HEIGHT
50-120
100-150
100-175
BOTTOM DEPTH
≤10
≤12
ANGLE
2-8°
CAPACITY
40-50pcs/min
35-45pcs/min
30-40pcs/min
POWER SOURCE
380V, 50HZ(it can be changed if customer require)
TOTAL POWER
6.5kw
8kw
WEIGHT
1600kg
1700kg
1900kg
PACKAGE SIZE
2800*1350*1800mm, 800*750*1300mm
3000*1450*1900mm,800*750*1350mm
3300*1450*2000mm,800*750*1350
AIR SOURCE
0.2m³/min;0.6Mpa(customer-owned)
Our Service

We have a professional transport channel

FAQ

1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty period , we will send a free replacement parts to you .

2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and training, but all the charges for the engineers should be paid by buyer.

3. Quotation
The quotation is available in 60 days

Our Company

1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
