Specifications

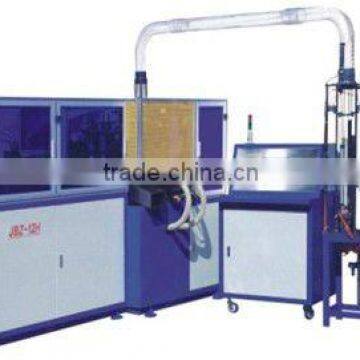

JBZ-12H High Speed Paper Cup Forming Machine is a high speed automatic machine with multi-working station.
JBZ-12H High Speed Paper Cup Forming Machine is a high speed automatic machine with multi-working station. It produces of automatic paper feeding, sealing, silicon oil lubrication, bottom punching, heating, knurling, curling, and cup discharge. This kind of cup can be for beverage, ice cream etc. This machine has adopted new technology ,imported hot blowing equipment, and imported PLC system. It has good feature of precise equipment, and it is the first choice for the paper cup manufacturer.
Technical specification | |
Model |
JBZ-12H |
Cup size |
6~12oz(outside diameter of a cup 60~110mm outside dameter of bottom 50~70mm height of cup 50~138mm depth of bottom 5~10mm) |
Rated speed |
65-80pcs/min |
Main motor power |
2.2KW |
Electro thermal power |
13.2KW |
Air source |
0.6m3/min ;0.6MPa customer-owned |
Applical base paper |
190~350g/(single or double PE coating paper) |
Weight |
3T |
Main size |
2700mm*1700mm*1800mm |
Electrical box size |
850mm*700mm*1400mm |
Paper cup collector size |
1150mm*650mm*2000mm |
Remark |
The paper thickness error margin is ??.03mm for the same set of mould |
Optional accessory | |
shield |
Extra to pay |
pipeline |
Extra to pay |
