Specifications

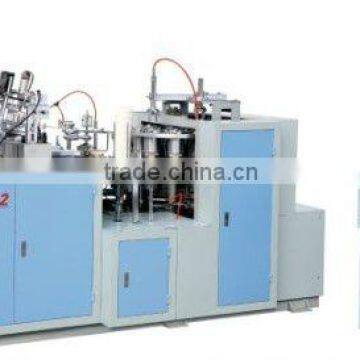

maquina de hacer vaso de papelJBZ-S Paper Cup Forming Machine is an automatic machine with multi-working station.
maquina de hacer vaso de papel
DESCRIPTION:
JBZ-S Paper Cup Forming Machine is an automatic machine with multi-working station. It produces two-side film-coated paper cup through the procedure of automatic paper feeding, ultrasonicwelding, oil silicon lubrication, bottom punching, heating, knurling, curling and cup discharge. The sealing system is ultrasonic sealer, so this model is suitable for making two side PE coated paper with full printing design cups. This cup can for both hot and cold drinking, such as soft drinking, ice-cream and coffee etc.
PARAMTERS:
Model | JBZ-S04 | JBZ-S12 | JBZ-16 | JBZ-S22 | JBZ-S36 |
Cup size | 2,3,4,5,6.oz | 6,8,12 oz | 12-16 oz | 16-22 oz | 22-36 oz |
Raw material | Two side PE coated paper | ||||
Capacity | 40-50pcs/min | 40-45pcs/min | 35-40pcs/min | 30-35pcs/min | 22-36pcs/min |
Power source | 380V 50Hz(it can be changed if customer require) | ||||
Total power | 10KW | 11KW | 12.5KW | 12.5KW | 12.5KW |
Weight | 1600Kg | 2200Kg | 2200Kg | ||
Package size | 2800*1350*1800mm | 2800*1350*1800mm | 3050*1350*1950mm | 3250*1450*2050mm | 3550*1450*2150mm |
(L*W*H) | 800*750*1300mm | 800*750*1300mm | 800*750*1300mm | 800*750*1400mm | 900*750*1400mm |
Air source | 0.18m3/min;0.6MPa customer-owned | ||||
