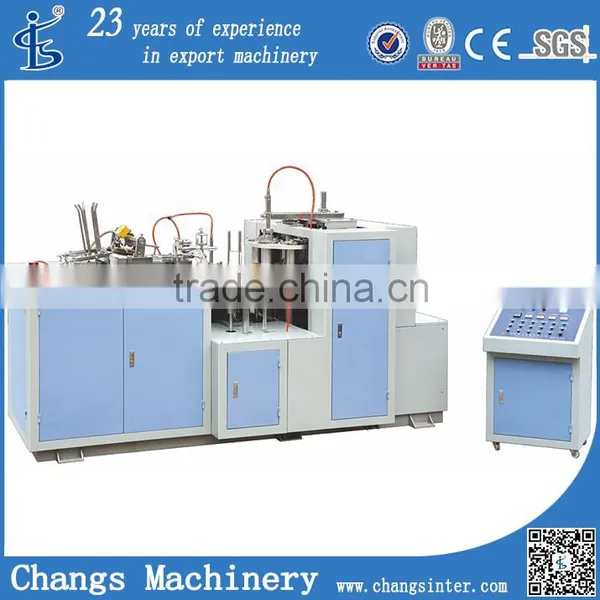

JBZ-A Paper Cup Forming Machine is an automatic machine with multi-working station. It produces one-side film-coated paper cup through the procedure of automatic paper feeding, sealing, oil silicon lubrication, bottom punching, heating, knurling, curling and cup discharge. This kind of cup can be for tea, coffee, milk , ice-cream etc.
Main Characteristics:
1. Precise box type indexing cam structure, the parts all adopt standard production, have high generality and good exchange performance, and facilitate equipment maintenance.
2. The paper holder is provided with paper feeding detection function, so that it will alarm automatically when the paper is less than a certain amount. (optional according to the demand of the customer)
3. The heat seal barrel forming part is provided with non-cup-barrel detection, alarming and sopping functions, which enhance the automation degree of the machine. (optional according to the demand of the customer)
4. The bottom-punching part is changed into mechanical probe type detection which ensures the detection precision and the pass rate of finished products.
5. The machine adopts high-position stopping device, so that the machine always stops at the highest point, the mold and the heating furnace are fundamentally separated and the paper cup is prevented from being burned.
6. The large vertical shaft of the machine adopts oil tank lubricating, which ensures that the vertical shaft is soaked in the lubricating oil and is not damaged after long-time running.
7. The company has improved the rolling part, the bottom punching part, the heating part, the rolling wheel and paper cutting, being capable of producing thick paper which is more than 300gsm,
and is free of water seepage and water leakage.
Technical Parameters
Machine model | JBZ-A04 | JBZ-A12 | JBZ-A16 | JBZ-A22 |
Paper cup specifications | 2Ounce 4Ounce 4.5Ounce 6.5Ounce Of ice cream paper cup | 6Ounce 8Ounce 9Ounce 12Ounce | 8Ounce 9Ounce 12Ounce 16Ounce | 8Ounce 9Ounce 12Ounce 16Ounce |
Paper cup materials | Single-sided PE Coated paper | |||
Cup upper O.D. | 50-80 | 50-95 | 50-95 | 50-95 |
Cup bottom O.D. | 35-70 | 35-70 | 35-70 | 35-70 |
Cup height | 30-60 | 50-120 | 80-150 | 100-175 |
Bottom height | ≤10 | ≤10 | ≤10 | ≤12 |
Taper | 4-6o | 2-8o | 2-8o | 2-8o |
Rated production efficiency | 40-50pcs/min | 35-45pcs/min | 35-40pcs/min | |
Power | 380V 50Hz | |||
Total power | 5KW | 6KW | ||
Weight | 1600Kg | 1900Kg | ||
Encasement dimensions (L*W*H) | 2800×1350×1760mm | 3000×1350×1900mm | 3300×1450×2000mm | |
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
