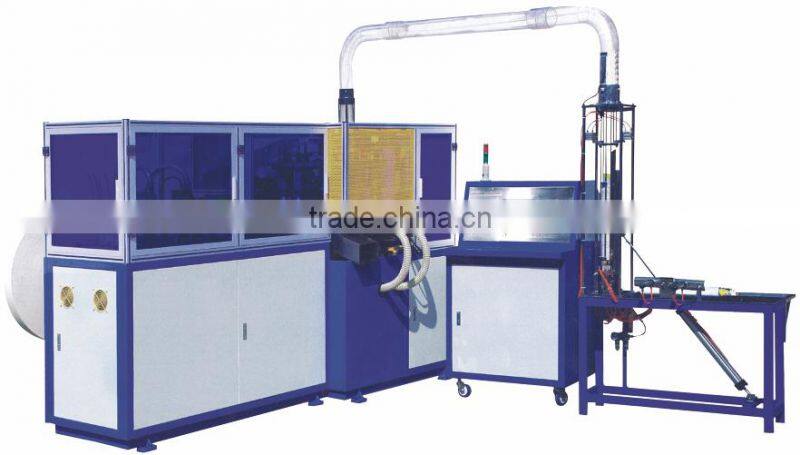

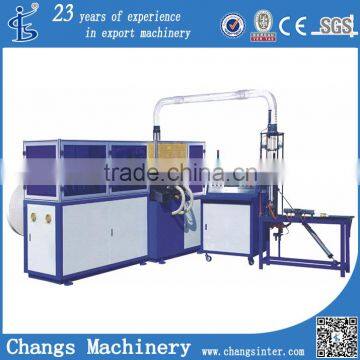

JBZ-12H High Speed Paper Cup Forming Machine is a high speed automatic machine with multi-working station. It produces of automatic paper feeding, sealing, silicon oil lubrication, bottom punching, heating, knurling, curling, and cup discharge. This kind of cup can be for beverage, ice cream etc. This machine has adopted new technology ,imported hot blowing equipment, and imported PLC system. It has good feature of precise equipment, and it is the first choice for the paper cup manufacturer.
Technical specification | |
Model | JBZ-12H |
Cup size | 6~12oz(outside diameter of a cup 60~100mm, outside dameter of bottom 50~70mm, height of cup 60~135mm, depth of bottom 5~10mm) |
Rated speed | 65-90pcs/min |
Main motor power | 2.2KW |
Electro thermal power | 13.2KW |
Air source | 0.6m3/min ;0.6MPa customer-owned |
Applical base paper | 190~350g/(single or double PE coating paper) |
Weight | 3800kg |
Main size | 3100mm*1900mm*1800mm |
Electrical box size | 850mm*700mm*1400mm |
Paper cup collector size | 1150mm*850mm*2000mm |
Remark | The paper thickness error margin is+/- 0.03mm for the same set of mould |
Optional accessory | |
shield | Extra to pay |
pipeline | Extra to pay |

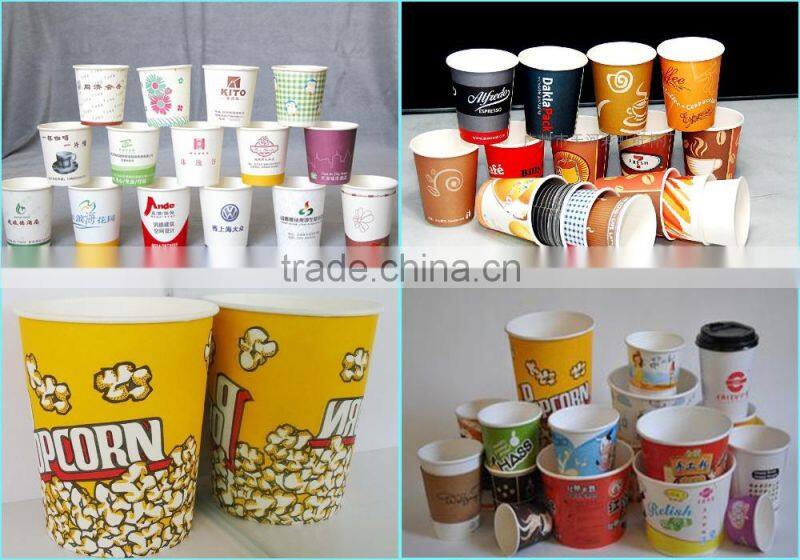

Sample:
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
