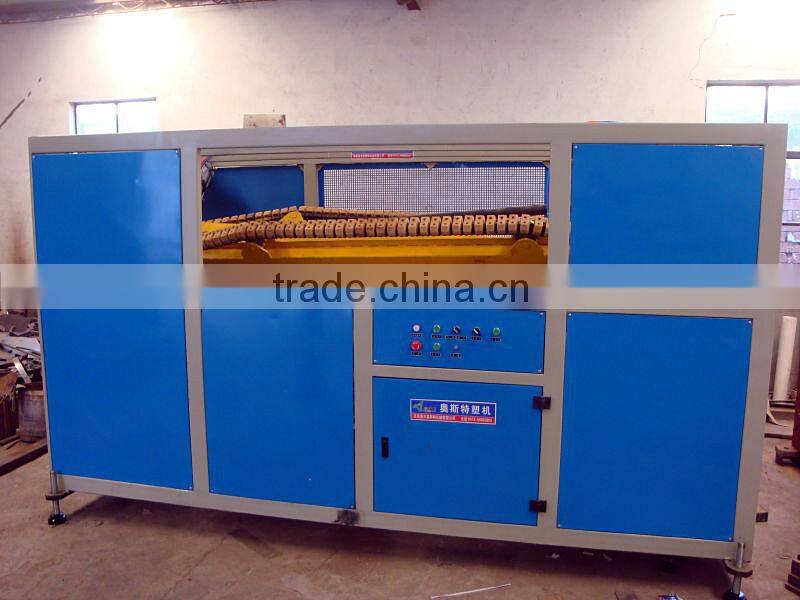

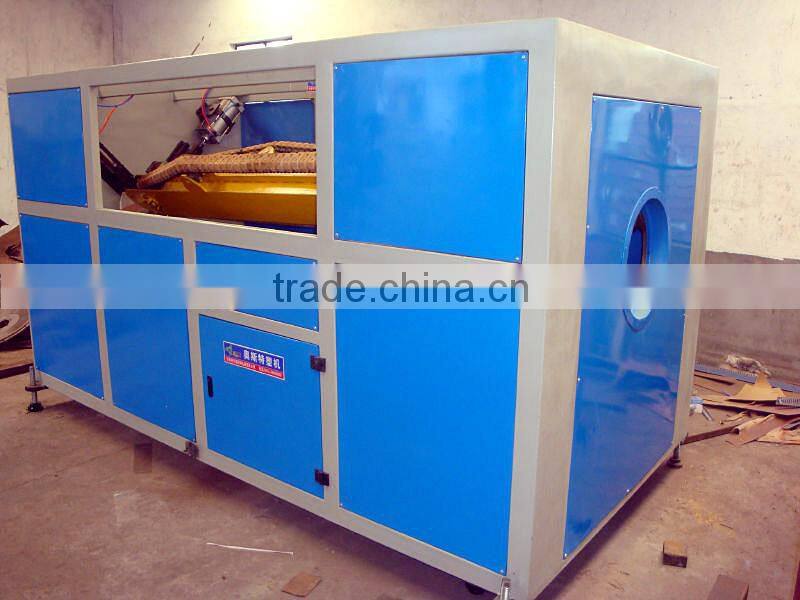

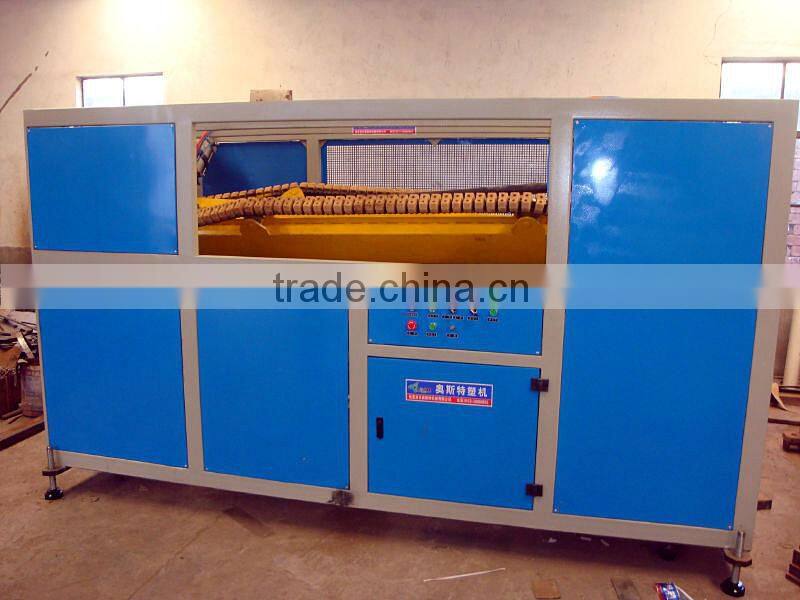

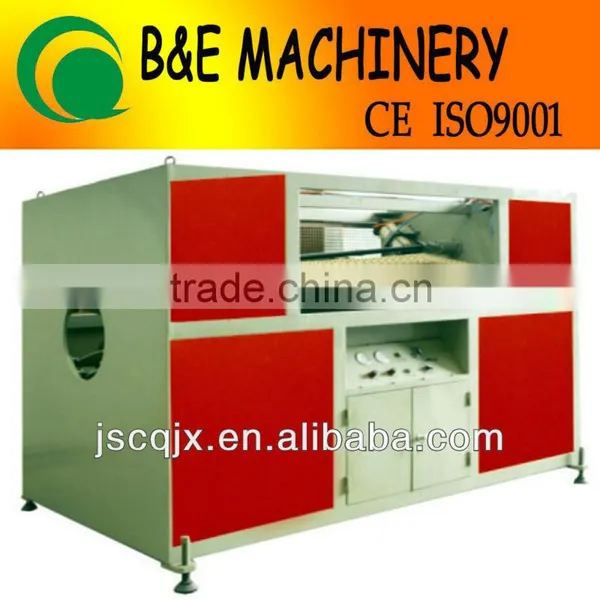

Help CenterHAUL-OFF UNIT
Related Products
-
4-6inch Single Wall Corrugated Pipe Extrusion LineNegotiableMOQ: 1 Set -
SPS Series Double Disk WinderNegotiableMOQ: 1 Set
-
Corrugated Pipe Extrusion Line for pp pe PvcNegotiableMOQ: 1 Set
-
UPVC Threads Pipe Line PriceUS$ 5,000 - 50,000MOQ: 1 Set
-
16-63mm HDPE Pipe Making Machine/LineNegotiableMOQ: 1 Set
Specifications
1. CE/ISO 9001 certification2. Pipe Dia. 16-630mm
3. working stable, long service life
PVC pipe extrusion line
Application:
Applied for manufacture of caliber PVC,UPVC supply and drain pipes.
Main parameter:
Specification | GF-125 | GF-160 | GF-250 | GF-500 | GF-630 |
Max. pipe diameter(mm) | 125 | 160 | 250 | 500 | 630 |
Total power of auxiliary machine (kw) | 13 | 14 | 19 | 27.5 | 35 |
Cooling water consumption (m3/h) | 3 | 6 | 6 | 9 | 12 |
Compressed air pressure (Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Performance &Advantages:
1. GF series plastic pipe production line is mainly used in manufacture of the plastic PVC pipes with tube diameters and wall thickness, which are used for water supply and drainage in the field of agriculture and construction.
2. This line is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter, stacker etc.
3. The extruder and the haul-off adopt the quality AC frequency conversion control device.
4. The vacuum pump and motor adopt the famous brand.
5. The haul-off have two-claw, three-claw, four-claw, six-claw.
6. It may choose the saw blade cutting type or the planet cutting production efficiency.
7. Our company may equipped the special device for the manufacture of the inner wall spiral coil and core layer blister according to the client’s requ
