Help Center16-63mm HDPE Pipe Making Machine/Line
Related Products
-
PE Pipe Winder MachineNegotiableMOQ: 1 Set -
SJ SINGLE WALL CORRUGATED PIPE PRODUCION LINENegotiableMOQ: 1 Set
-
PE Carbon Spiral Reinforcing Pipe System LineNegotiableMOQ: 1 Set
-
Large Diameter Corrugated Pipe Production LineNegotiableMOQ: 1 Set
-
HDPE/LDPE Corrugated Pipe Production IneUS$ 30,000 - 50,000MOQ: 1 Set
Specifications
PE pipe production line1.Large output,steady performance
2.water-supply,draining pipe
3.CE&ISO9001
4.20-630mm PE pipe
16-63 mm HDPE pipe making machine
Description:
1.The pipes are extruded by the first extruder and then enter the twist form machine, at the same time the basket co-extrusion mould forms pipes' shape
2.The pipes are based on high density PE as main raw material.
main advantage:
1.This kind of pipes have many advantages, such as corrosion resistant light, easy to fix, long time to use etc.
2.The pipes are widely used in high-way, municipal constructional, flats and so on
Process line:
Raw material+master batches→mixing → vacuum feeding → material dryness → single screw extruder → basket co-extrusion mould → calibrator → spray vacuum calibration tank → spray cooling water tank → belt haul-off → single screw glue extruder → winder → winding roller forming → water cooler → pipe rack → finished product inspecting&packing
Technical parameters:
Model |
Screw diameter |
L/D |
Pipe range(mm) |
Main motor power (kw) |
Total power(kw) |
Line length (mm) |
PE-63 |
65mm |
33:1 |
16-63 |
37 |
80 |
24 |
PE-110 |
65mm |
33:1 |
75-110 |
55 |
110 |
30 |
PE-160 |
75mm |
33:1 |
90-160 |
90 |
150 |
32 |
PE-250 |
75mm |
33:1 |
110-250 |
110 |
200 |
42 |
PE-315 |
90mm |
33:1 |
160-315 |
160 |
240 |
44 |
PE-400 |
90mm |
33:1 |
200-400 |
185 |
300 |
50 |
PE-500 |
120mm |
33:1 |
250-500 |
280 |
350 |
56 |
PE-630 |
120mm |
33:1 |
315-630 |
280 |
480 |
56 |
PE-800 |
150mm |
33:1 |
400-800 |
315 |
550 |
72 |

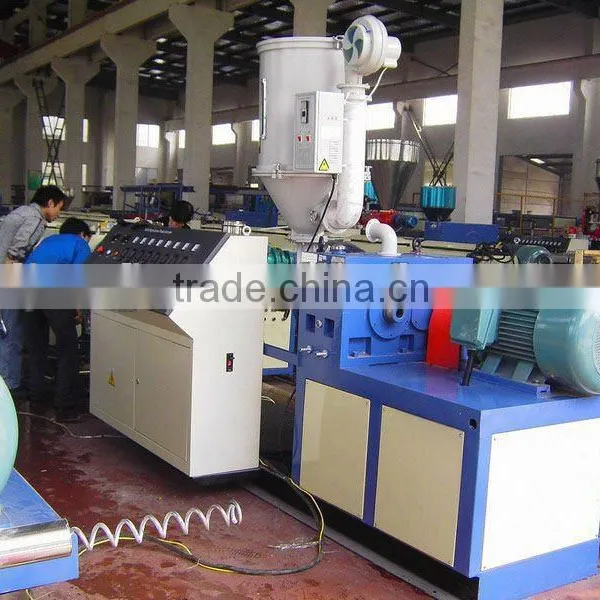

1.extruder

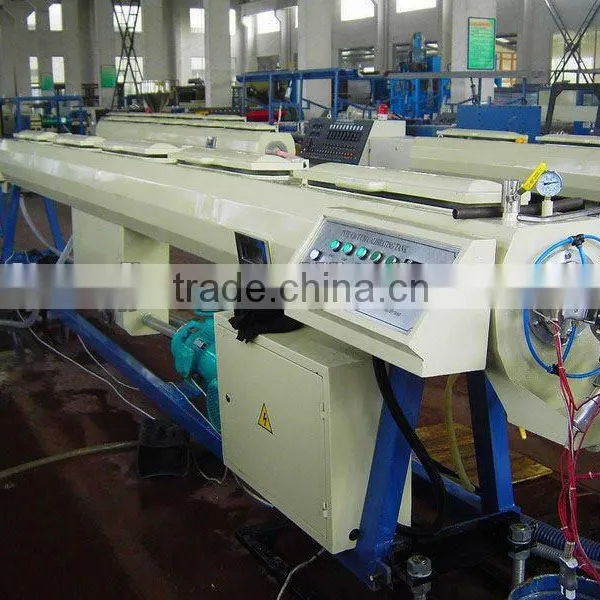

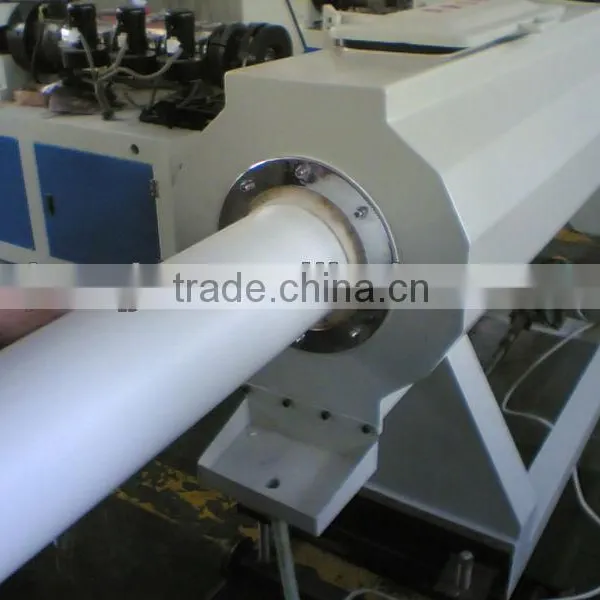

2.vacuume tank and cooling tank
4.TRACTOR
5.Cutter

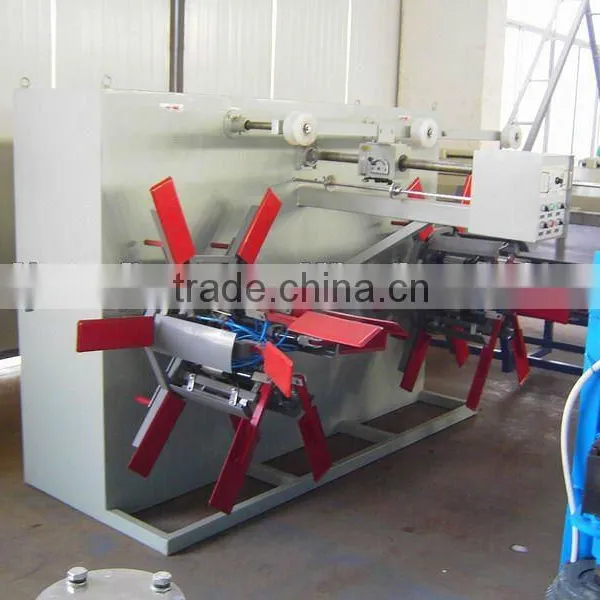

6.WINDER

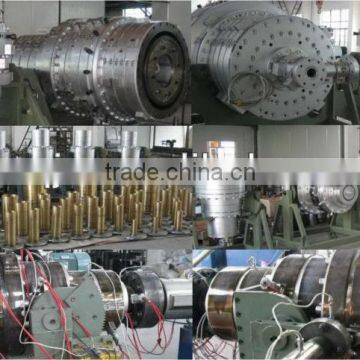

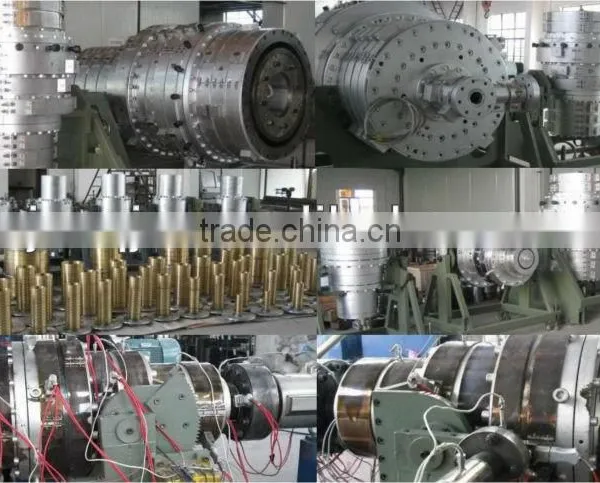

Moulds
