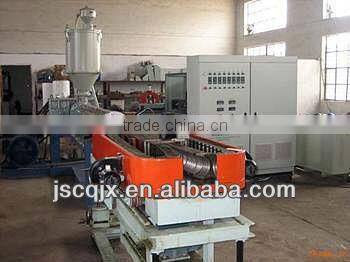

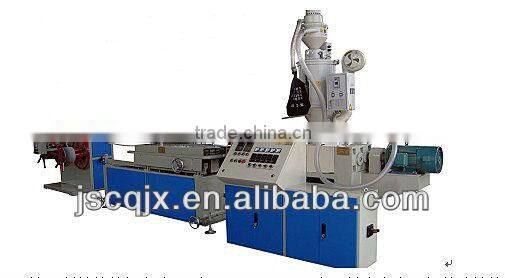

4-6inch Single Wall Corrugated Pipe Extrusion Line

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Pipe

Plastic Processed:

PVC

Zhangjiagang City B

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Pipe

Plastic Processed PVC

Screw Design Single-screw

Automatic Grade Automatic

Place of Origin Jiangsu, China

Brand Name BE

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Pipe diam:4.5-50mm
2.Max. output:80kg/h
3.CE,ISO9001 aproved
4.Warranty:15months

Introduce:

single wall corrugated pipe extrusion line can be used to product single wall corrugated pipe
Characeristic:Plastic single-wall corrugated pipe have features of high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc.Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wire of the up-market cars.
Application:They are widely used in fields of auto wire,electric thread-passing pipes,circuit of machine tool,protective pipes pf lamps and lanterns wire,tubes of air conditioner and washing machine,etc.

The main technique parameter

Pipe diamter range(mm)	4.5-9	9-32	16-50
Main machine model	SJ-30	SJ-45	SJ-65
Main machine L/D	30:1	28:1	30:1
Production capacity(kg/h)	10	40	80
Main motor(kw)	4	11	18.5
Molding machine motor(kw)	1.1	1.5	1.5
Pair of mouldes	42	38	38
Cooling mode	Water cooling and fan cooling
Production speed(m/min)	6-10	8-12	8-15
Metering mode	Inducting mode
Coiling machine mode	Motor-driven manually-operated
