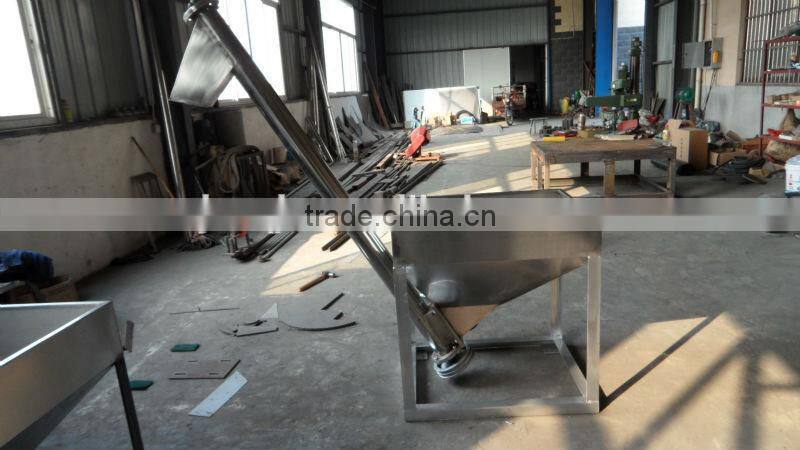

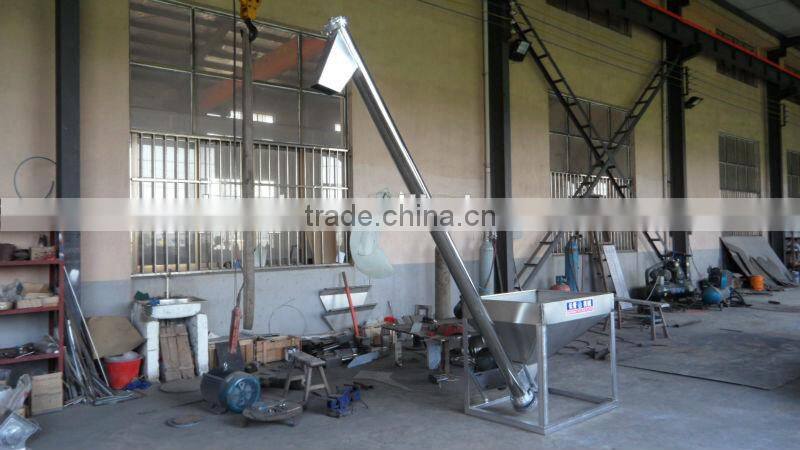

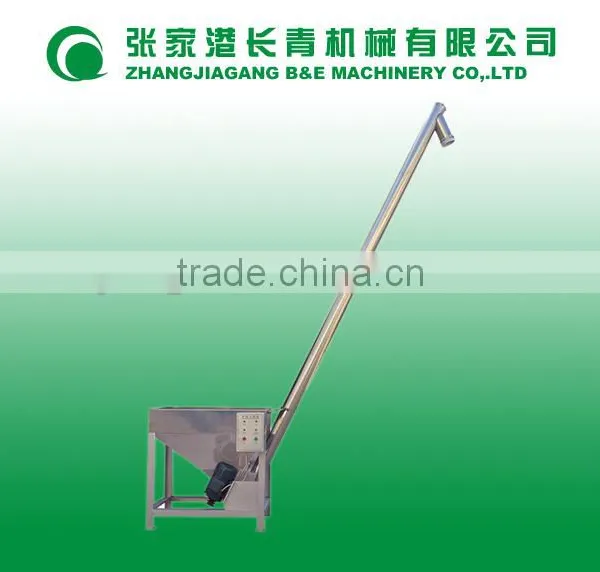

Stainless Steel Screw Auger Conveyor
US$ 800 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw Conveyor
Material:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Screw Conveyor
Material
Stainless Steel
Material Feature
Heat Resistant
Structure
Conveyor System
Load Capacity
100
Place of Origin
Jiangsu, China
Brand Name
BE
Model Number
ZJF-700 Automatic Powder Feeder for pvc
Voltage
220V 380v 415V 440v
Power(W)
2.2
Dimension(L*W*H)
1000X800X3000MM
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
screw auger conveyor1. can load powder and granules
2. volume 200-1000kg
3. pipe length 2-5m
4. easy to contr
Stainless Steel Screw Auger Conveyor
Purpose and Scope:
The DTC series screw feeder to plastic processing machinery required ancillary equipment, a net powdered or granulated plastic materials automatically transported into the hopper, adjust the mixer device. Contact material made of stainless steel, raw materials during transport is completely free from contamination, do not bring any foreign objects, enabling the production process to achieve full closure automation.
Easy to install, and can be moved, such as multiple Banliao use the same material, just a platform feeder for feeding simultaneously multiple spices machines, eliminating the hassle of artificial feeding is feeding safer work , more time and more effort.
The main technical parameters:
| Model Specification | Unit | ZD-600 | ZD-1000 | ZD-2000 | ZD-3000 |
| Power supply | V | 380V50Hz | 380V50Hz | 380V50Hz | 380V50Hz |
| Feeding motor power | KW | 0.75 | 1.1 | 1.5 | 1.5 |
| Pusher motor power | KW | 0.75 | 0.75 | 1.75 | |
| Feeding tube diameter | mm | 76 | 102 | 120 | 140 |
| Feeding height | m | 3 | 3 | 3 | 3 |
| The feeding amount | kg/H | 600 | 1000 | 2000 | 3000 |
| Hopper capacity | kg | 80 | 150 | 200 | 250 |
| Box Size(L×W×H) | cm | 65×65×80 | 100×75×80 | 120×80×80 | 160×80×80 |
| Weight | kg | 80 | 150 | 200 | 300 |
