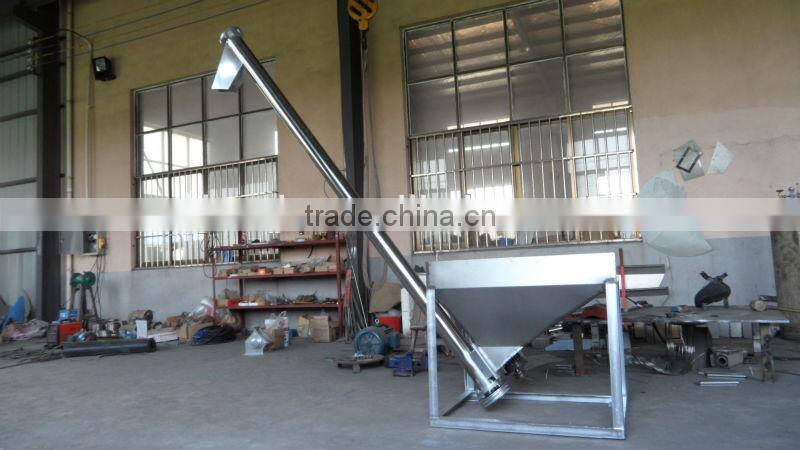

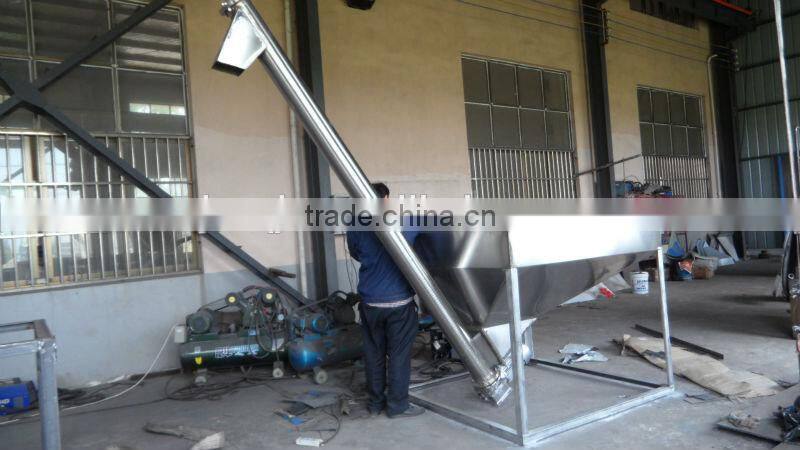

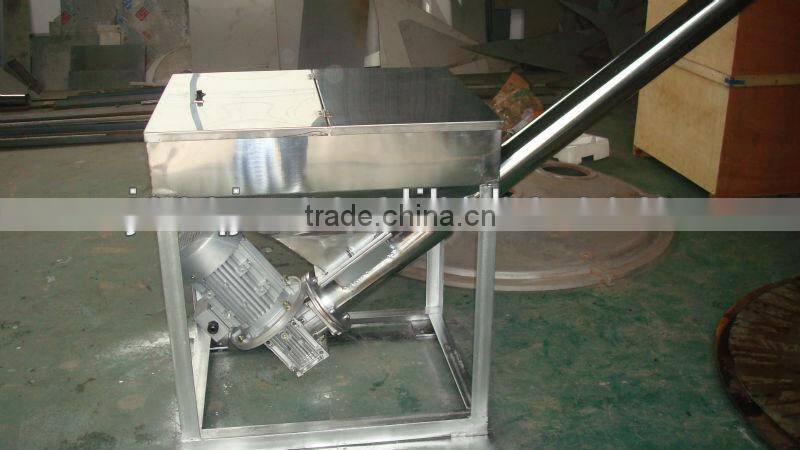

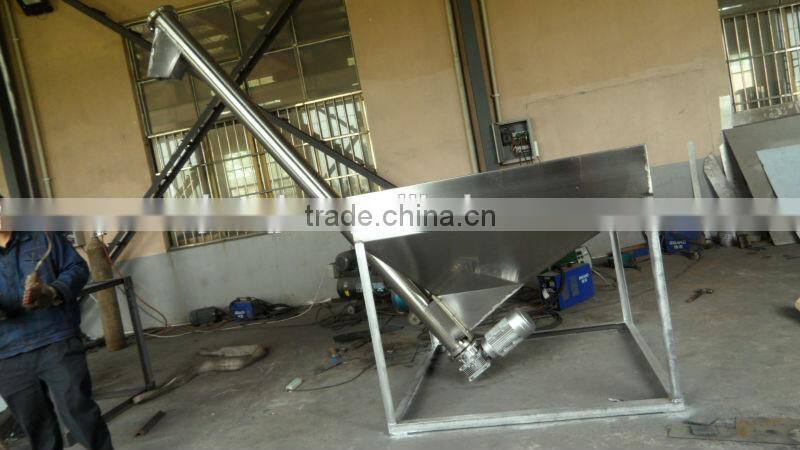

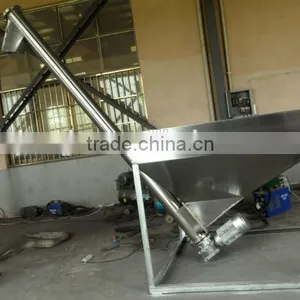

Help CenterZD1000 Screw Feeder Stainless Steel
Related Products
-
PP PE Pellets DryerUS$ 1,000 - 2,500MOQ: 1 Set -
Screw Conveyor Machine for Pvc PowderUS$ 800 - 2,000MOQ: 1 Set
-
100kg/time Plastic Vertical MixerUS$ 1,000 - 2,500MOQ: 1 Set
-
Plastic Color Master Batch Mixer /color MixerUS$ 1,000 - 2,500MOQ: 1 Set
-
1500kg Plastic Pellet Mixing DryerUS$ 1,000 - 2,500MOQ: 1 Set
Specifications
Automatic Screw Powder Conveyors1.flexible spiral conveyor
2. Conveying range up to 40m.
3. Flexible flight type

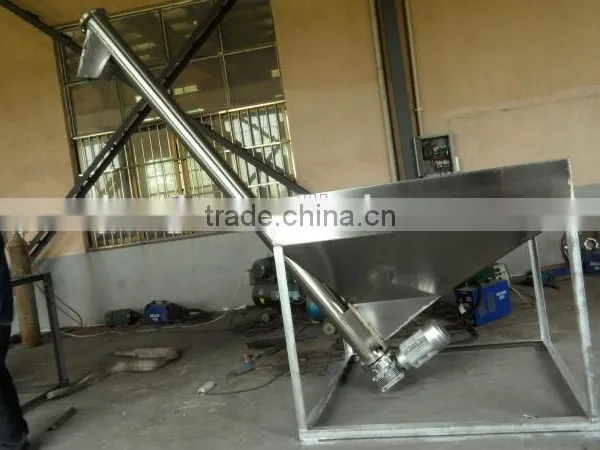

SS304 Automatic Feeder
The equipment adopts the principle of screw conveyor, using steel wire spring rotation convey different kinds of powders, granular materials transport from the warehouse to a high level positions, and then turn on the upper r storage bin flashborar, smoothly feed the materials down to rotary vibration sieve, or other ancillary equipments. This process keep reciprocating cycle, thus it can achieve the feeding from low to high automation.
The machine is mainly applied to chemical industry, food industry, metallurgy industry which need to achieve short distance upwards delivery of powers and smaill particale materials, it can be used with the rotary vibration sieve, plastic extrusion machines, injection molding machines and other corollary equipments. It has the advantage of less occupying space , simplification working, saving manpower, improve working conditions, humanity and safety.
In order to properly master the using methods and to prolong the service life, please read this opporarion instructions carefully before run the machine.
Main technical parameter:
Item | DTC-600 | DTC-1000 | DTC-2000 | DTC-3000 |
Motor power(kw) | 1.5 | 1.5 | 2.2 | 2.2 |
Pushing motor power(kw) | 0.55 | 0.75 | 0.75 | 0.75 |
Loading pipe dia(mm) | 102 | 102 | 102 | 102 |
Capacity(kg/h) | 600 | 1000 | 2000 | 3000 |
Silo capacity(kg) | 80 | 150 | 200 | 250 |
Dimension of silo(cm) | 65*65*80 | 100*75*80 | 120*80*80 | 160*80*80 |
Weight(kg) | 80 | 150 | 200 | 300 |
