Ultrathin Undertile Heating Mats
- 2000 Square Meter / Square Meters per Month
- Shanghai
- T/T L/C Credit Card PayPal
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Anhui, China | Brand Name: | Minco | Model Number: | Heating Mats |
Insulation Material: | PFA | Type: | Low Voltage | Application: | Underground |
Conductor Material: | Copper | Jacket: | FEP |
Product Description
Specifications
Heating MatsCE, RoHS, GOST
10 years warranty, cost effective
MOQ: 1 roll
OEM

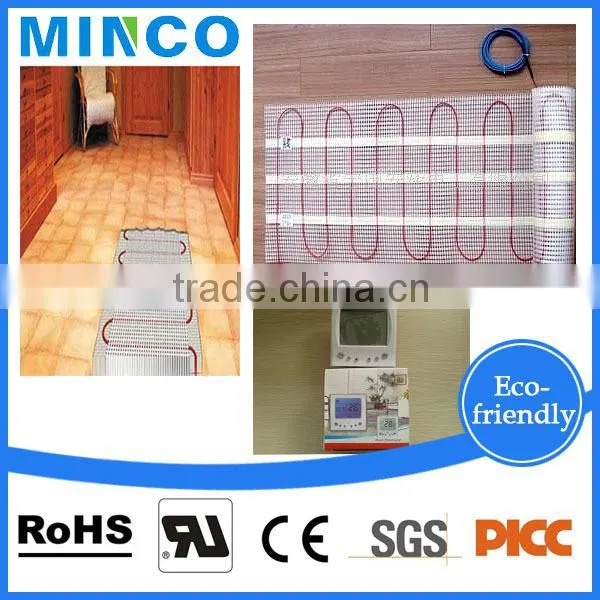

Ultrathin Undertile Heating Mats
Product data
Heating Mats
| Characteristics | General technical data |
Fiberglass net | Cable structure----Two-way | |
100% covered | Shape of cable----annular | |
Good flexing, with all length | Diameter----3mm | |
As thin as only 3-4mm | Cold lines----one line of four meters | |
150 watts/m2 can create maximum comfort level | Intensity of deformation----at least 600 Newton | |
One cold lines | Voltage----220V(230v, 240v, customized) | |
10 years of warranty | Insulation----TEFLON | |
| Cover----Teflon | |
|
| Shield----aluminum foil |
- Toughest and thinnest wire: 3mm teflon heating cable
- Sturdy fibreglass mesh for extra durability and super-sticky double-sided tape for secure installation
- Quick installation - Simply roll out mat with pre-spaced wire
- Flexible - no customizing is necessary
- Available in both 220V and 230V
- Approvals: CE, ROHS, GOST
- 10-year warranty
- Attached installation manual
Product data
Dual Core Heating Mats(twin conductor 150W/M²) | |||||
power(w) | Voltage(v) | linear power(w) | Value of resistance(Ω) | Cable length(m) | Square meter(length*width) |
150 | 220 | 12 | 322.67 | 12.5 | 0.5 x 2 |
225 | 220 | 12 | 215.11 | 18.8 | 0.5 x 3 |
300 | 220 | 12 | 161.33 | 25.0 | 0.5 x 4 |
375 | 220 | 12 | 129.07 | 31.3 | 0.5 x 5 |
450 | 220 | 12 | 107.56 | 37.5 | 0.5 x 6 |
525 | 220 | 12 | 92.19 | 43.8 | 0.5 x 7 |
600 | 220 | 12 | 80.67 | 50.0 | 0.5 x 8 |
725 | 220 | 12 | 66.67 | 60.4 | 0.5 x 10 |
900 | 220 | 12 | 53.78 | 75.0 | 0.5 x 12 |
1050 | 220 | 12 | 46.1 | 87.5 | 0.5 x 14 |
1200 | 220 | 12 | 40.33 | 100.0 | 0.5 x 16 |
1350 | 220 | 12 | 35.85 | 112.5 | 0.5 x 18 |
1500 | 220 | 12 | 32.27 | 125.0 | 0.5 x 20 |
Applications
Minco Heating Mats combine the highest comfort level with maximum energy efficiency. It's a proven technology that's safe, reliable and energy efficient(saving 30%-40% compared with traditional heating system).
Safe: High efficient and convient heating system.
Automatism: Heating system can automatically(by thermostat) measure the heating requirement, and timely turn on or turn off.
Economical: The cost of installation and operation is relatively low; our heating system can efficiently avoid damage and save maintain fees.
Eco-friendly: Our heating system use the cleanest and most efficient power which are popular between customers.
Warranty: 10 years
Installation
2) Well installation can guarantee the efficiency.
3) After the installation, take a full test and make sure the system works well.
5)The junction box should be sealed to prevent water leak.
6) Protective sleeve must not be damaged during installation, and the core wire can not bare.
Certifications
Factory show
Producing process
Package and Delivery
Methods of Payment
Payment methods | Commission fee | Arriving days afer paying |
| No commission fee | 3-5 working days |
| 4.5%+0.3 usd |
Instant |
| No commission fee |
Instant |
| No commission fee |
Instant |
|
Alibaba calculate it |
Instant |
Delivery details
We will prepare shipping asap once we receive your money, and give you the tracking number after we send out your goods. Usually within 5-35 working days you can receive your item. Please wait patiently.
More similar products, please visit:http://www.mkheatingcable.en.china.cn/
Welcome! My friends!
Contact Us
- Hefei Minco Heating Cable Co., Ltd.
- Contact nameMichael Du
- Phone86-551-65876703
- Address Room 2108, Building 19, Huaihe Huayuan Community, Huainan Road, Xinzhan District Hefei,Anhui
