Specifications
Heated Mats for DrivewayCE, RoHS, GOST
10 years warranty, cost effective
MOQ: 1 roll
OEM

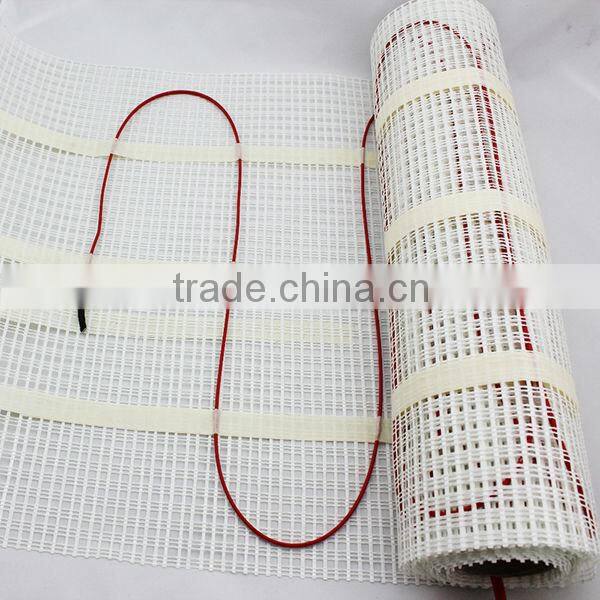

Outdoor Garage Walkway Snow Melting Heated Mats for Driveway
Product data
|
Heated Mats for Driveway |
Characteristics |
General technical data |
Fiberglass net |
Cable structure----Two-way |
|
100% covered |
Shape of cable----annular |
|
Good flexing, with all length |
Diameter----2.5mm |
|
As thin as only 3-4mm |
Cold lines----one line of four meters |
|
100 and 150 watts/m2 both can create maximum comfort level |
Intensity of deformation----at least 600 Newton |
|
One cold lines |
Voltage----220V(230v, 240v, customized) |
|
10 years of warranty |
Insulation----TEFLON |
|
|
Cover----Teflon |
|
|
|
Shield----aluminum foil |
Characteristics
1. Two double-sided adhesive tapes without liner.
2. 100 and 150 watts/m2 heated mats for driveway both can satisfy your needs.
3. Safety approved for wet locations.
4. Flexible installation.
5. Durable construction.
6.10-year limited warranty against manufacturing defects.
Product data
| Heated Mats for Driveway(double conductor 150W/M²) | |||||
| power(w) | Voltage(v) | linear power(w) | Value of resistance(Ω) | Cable length(m) | Square meter(length*width) |
| 150 | 220 | 12 | 322.67 | 12.5 | 0.5 x 2 |
| 225 | 220 | 12 | 215.11 | 18.8 | 0.5 x 3 |
| 300 | 220 | 12 | 161.33 | 25.0 | 0.5 x 4 |
| 375 | 220 | 12 | 129.07 | 31.3 | 0.5 x 5 |
| 450 | 220 | 12 | 107.56 | 37.5 | 0.5 x 6 |
| 525 | 220 | 12 | 92.19 | 43.8 | 0.5 x 7 |
| 600 | 220 | 12 | 80.67 | 50.0 | 0.5 x 8 |
| 725 | 220 | 12 | 66.67 | 60.4 | 0.5 x 10 |
| 900 | 220 | 12 | 53.78 | 75.0 | 0.5 x 12 |
| 1050 | 220 | 12 | 46.1 | 87.5 | 0.5 x 14 |
| 1200 | 220 | 12 | 40.33 | 100.0 | 0.5 x 16 |
| 1350 | 220 | 12 | 35.85 | 112.5 | 0.5 x 18 |
| 1500 | 220 | 12 | 32.27 | 125.0 | 0.5 x 20 |

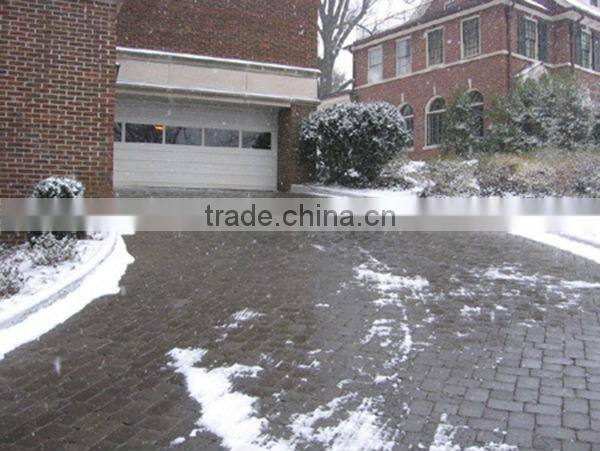

Applications
Minco Heated Mats for Driveway combines the highest comfort level with maximum energy efficiency. It's a proven technology that's safe, reliable and energy efficient(saving 30%-40% compared with traditional heating system).
Safe: High efficient and convient heating system.
Automatism: Heating system can automatically(by thermostat) measure the heating requirement, and timely adjust the temperature.
Economical: The cost of installation and operation is relatively low; our heating system can efficiently avoid damage and save maintain fees.
Eco-friendly: Our heating system use the cleanest and most efficient power which are popular between customers.
Warranty: 10 years

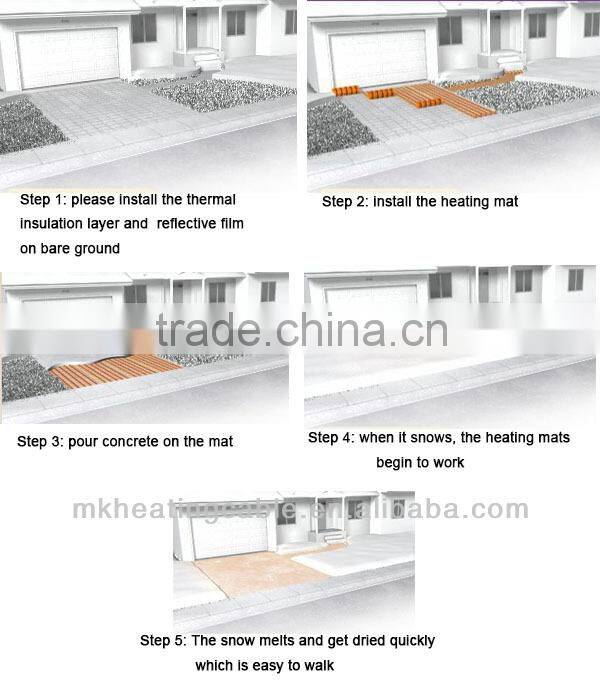

Installation
2) Well installation can guarantee the efficiency.
3) After the installation, take a full test and make sure the system works well.
5)The junction box should be sealed to prevent water leak.
6) Protective sleeve must not be damaged during installation, and the core wire can not bare.

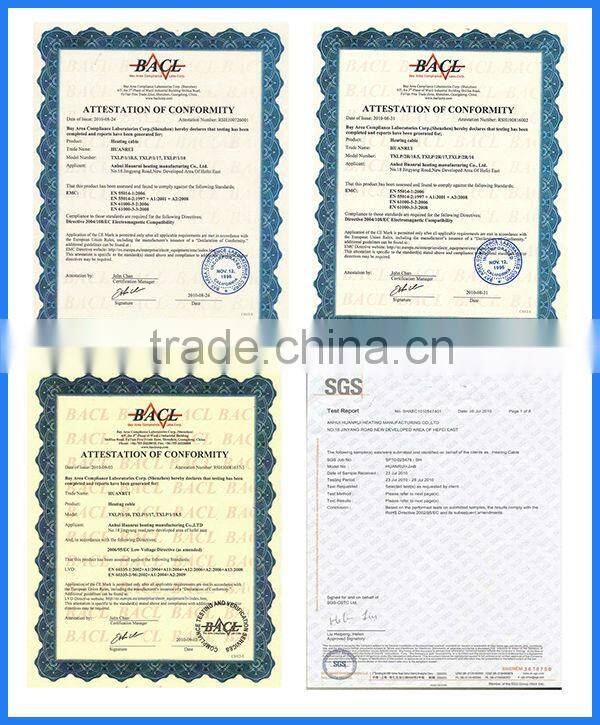

Certifications

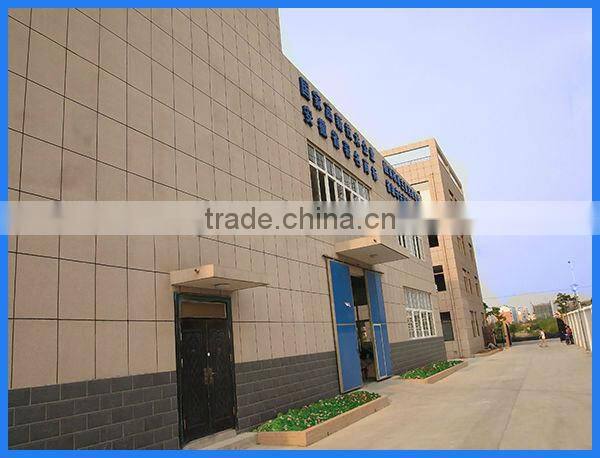

Factory show
Producing process
Package and Delivery
Methods of Payment
Payment methods |
Commission fee |
Arriving days afer paying |
|
No commission fee |
3-5 working days |
|
3.9%+0.3 usd |
Instant |
|
No commission fee |
Instant |
|
No commission fee |
Instant |
|
Alibaba calculate it |
Instant |
Delivery details
We will prepare shipping asap once we receive your money, and give you the tracking number after we send out your goods. Usually within 5-35 working days you can receive your item. Please wait patiently.
