Warming system floor heating mesh electric underfloor heating mat heating the floor
Heating mats (single conductor 150W/M²)
Type |
Voltage |
Power |
Linear power |
Resistance |
Cable length |
Square meter |
HSVF-150 |
220 |
150 |
12 |
322.67 |
12.5 |
0.5*2 |
HSVF-150 |
220 |
225 |
12 |
215.11 |
18.8 |
0.5*3 |
HSVF-150 |
220 |
300 |
12 |
161.33 |
25.0 |
0.5*4 |
HSVF-150 |
220 |
375 |
12 |
129.07 |
31.3 |
0.5*5 |
HSVF-150 |
220 |
450 |
12 |
107.56 |
37.5 |
0.5*6 |
HSVF-150 |
220 |
525 |
12 |
92.19 |
43.8 |
0.5*7 |
HSVF-150 |
220 |
600 |
12 |
80.67 |
50.0 |
0.5*8 |
HSVF-150 |
220 |
750 |
12 |
64.53 |
62.5 |
0.5*10 |
HSVF-150 |
220 |
900 |
12 |
53.78 |
75.0 |
0.5*12 |
HSVF-150 |
220 |
1050 |
12 |
46.1 |
87.5 |
0.5*14 |
HSVF-150 |
220 |
1200 |
12 |
40.33 |
100.0 |
0.5*16 |
HSVF-150 |
220 |
1350 |
12 |
35.85 |
112.5 |
0.5*18 |
HSVF-150 |
220 |
1500 |
12 |
32.27 |
125 |
0.5*20 |
HSVF-150 |
220 |
1800 |
12 |
26.89 |
150 |
0.5*24 |
Heating mats details
|

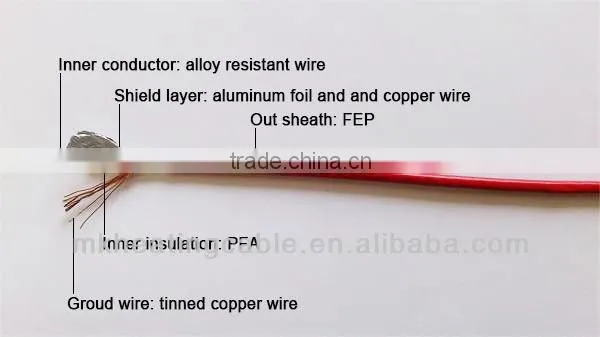

Single conductor heating mats
|
Characteristics |
General technical data |
| Self-adhesive net | Cable structure-one-way | |
|
Two double-side adhesive tapes without liner |
Shape of cable-annular | |
|
The reinforced net to guarantee better connection between two floors |
Diameter-2.5mm |
|
| Good flexing, with all lengths |
Cold lines-two lines of four meters |
|
| As thin as only 4-5.5mm | Intensity of deformation-at least 600 Newton |
|
|
Both 100 watts and 150 watts can create maximum comfort |
Voltage-220V |
|
Two cold lines |
Insulation-TEFLON |
|
10 years of warranty |
Cover-TEFLON |
|
|
Shield-copper wire |
Advantages:
1.100% earth shielded undertile heating mats, in standard 150W/m²,100W/m² and powerful 200W/m² categories
2. Unique fully earthed, cut and turn underlaminate system
3. Ultra-thin fully earthed undertile heating cable allowing you to set the output
4. Ease of installation
5. emits zero electromagnetic fields
6. genuine 10 year warranty
6. CE,ROHS certificated.
7. 10 years warranty.
8. Track carefully during whole process
9. Good after-sales service
10. Factory price
11. Further discount for new year

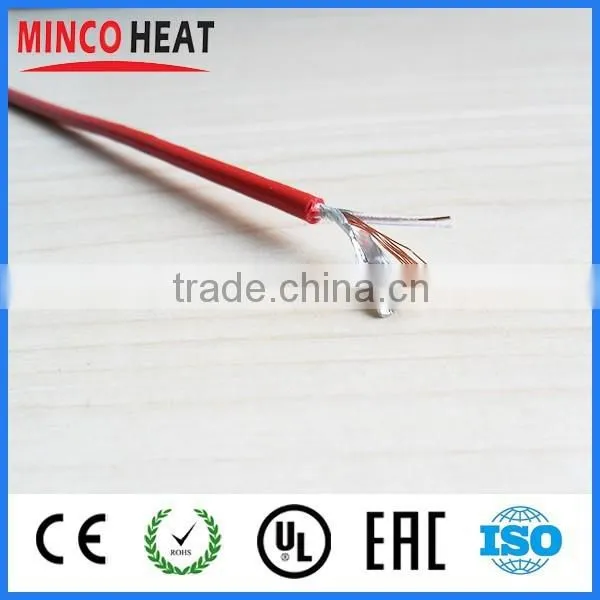

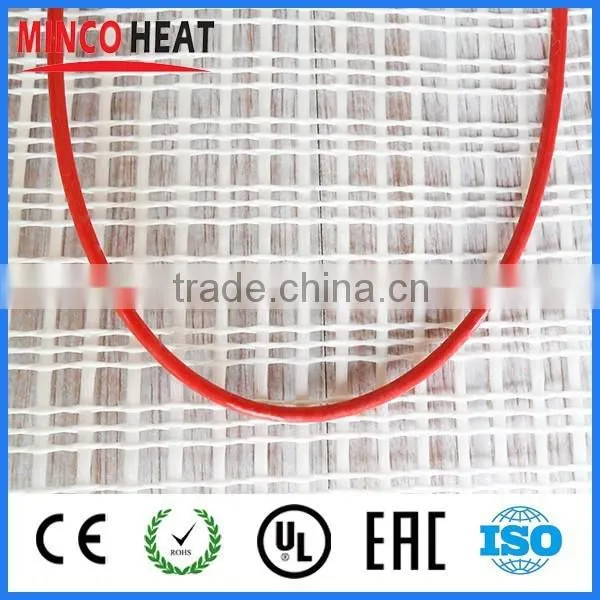

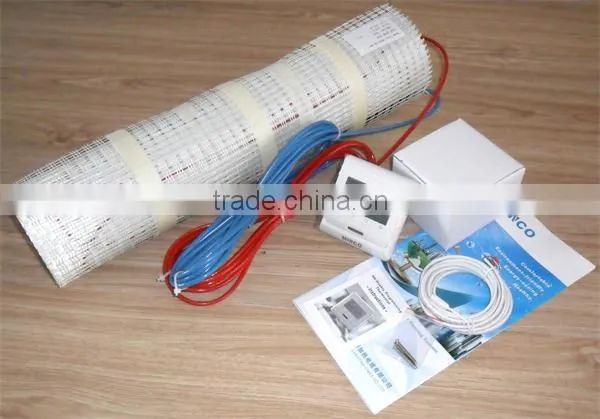

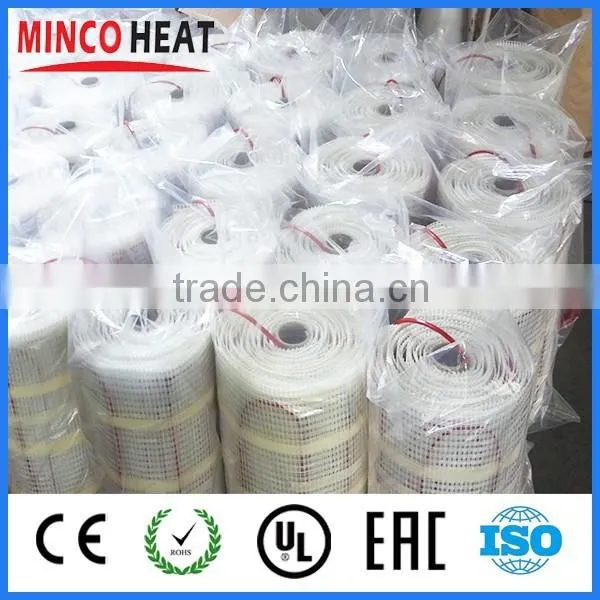

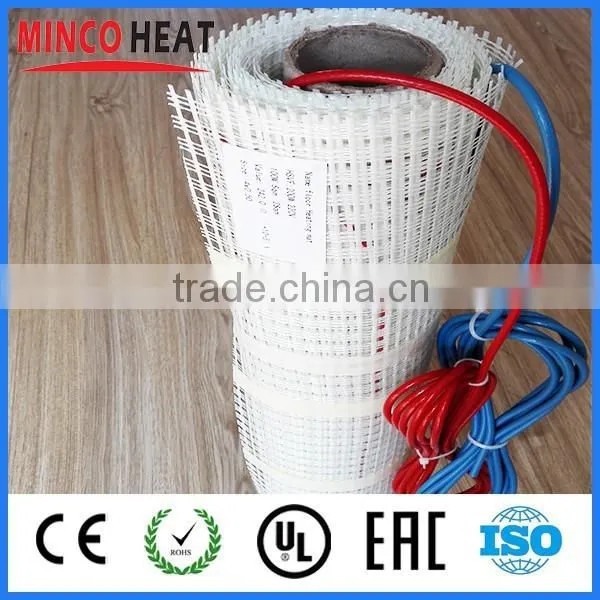

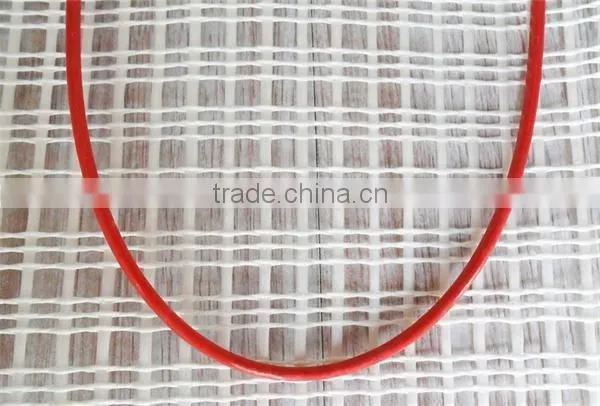

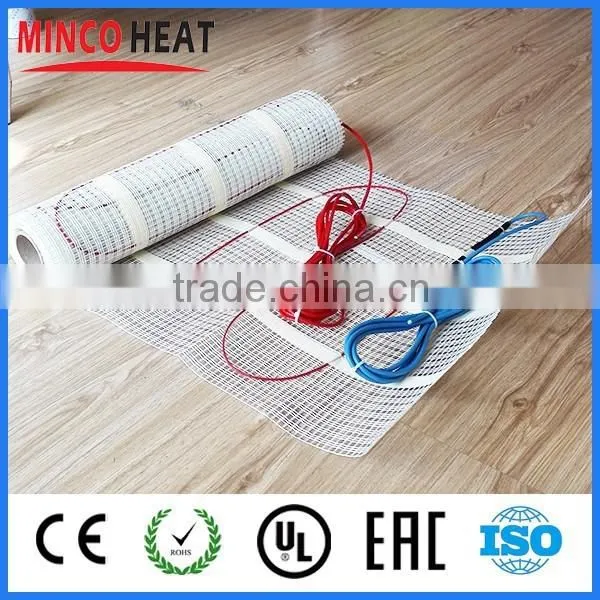

Product pictures

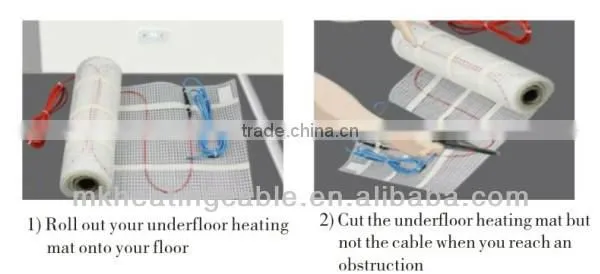

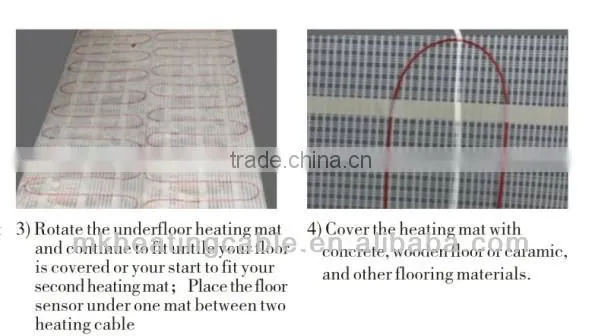

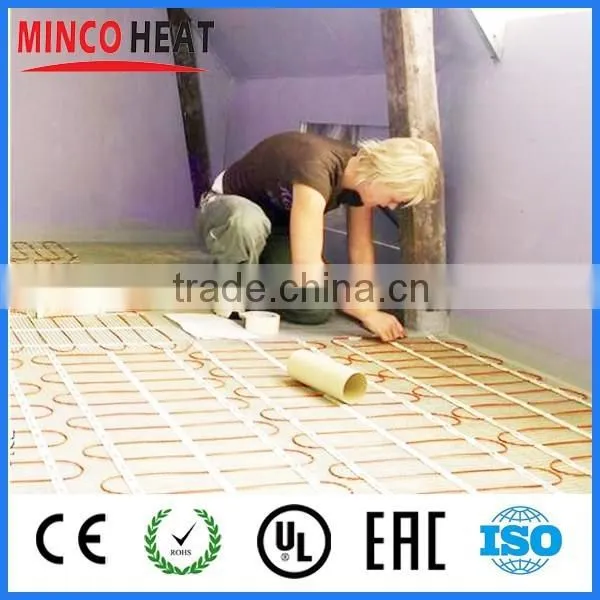

Installaion
Applications
Minco heating mats are widely used in soil Heating, floor heating, bathroom heating, road/ heating snow & freeze melting, cullis snow melting, heating for baby animal husbandry, dry and curing of concrete, pipefrost protection.etc.

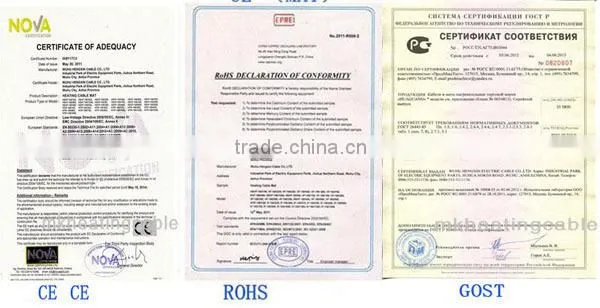

Certification

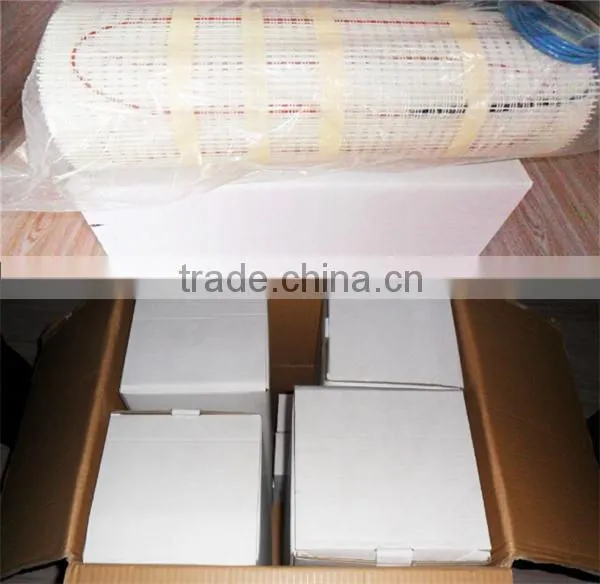

Delivery deatails
We will prepare shipping asap once we receive your money, and give you the tracking number after we send out your goods. Usually within 5-35 working days you can receive your item. Please wait patiently.
Method of Payment
We accept Bank of China, L/C,Westen union, PayPal and Moneygram, you could tell us which one is convenient for you!
Welcome your arrival my friends! Your OEM & ODM products are welcome! For more similar products please visit:
