Specifications
Tiles Heating Mats10 years warranty, cost effective
CE, RoHS, GOST
MOQ: 1 ROLL
OEM, ODM

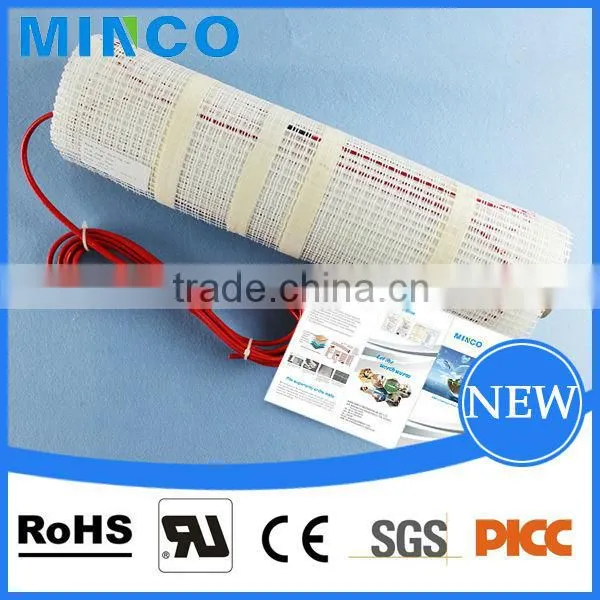

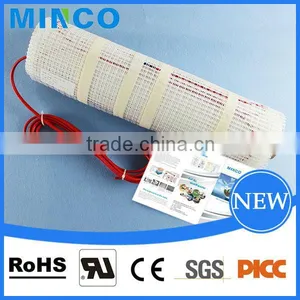

Magnetic Floor Tiles Heating Mats+Digital Thermostat
Product data
|
Tiles Heating Mats
|
Characteristics |
General technical data |
Fiberglass net |
Cable structure----Two-way |
|
100% covered |
Shape of cable----annular |
|
Good flexing, with all length |
Diameter----3mm |
|
As thin as only 4mm |
Cold lines----one line of four meters |
|
100 and 150 watts/m2 both can create maximum comfort level |
Intensity of deformation----at least 600 Newton |
|
One cold lines |
Voltage----220V(230v, 240v, customized) |
|
10 years of warranty |
Insulation----TEFLON |
|
|
Cover----Teflon |
|
|
|
Shield----aluminum foil |
Characteristics
1. Two double-sided adhesive tapes without liner.
2. 100 and 150 watts/m2 electric underfloor heating mats both can satisfy your heating needs.
3. Safety approved for wet locations.
4. Flexible installation.
5. Durable construction.
6.10-year limited warranty against manufacturing defects.
Mat details
| Tiles Heating Mats (twin conductor 150W/M²) | |||||
| power(w) | Voltage(v) | linear power(w) | Value of resistance(Ω) | Cable length(m) | Square meter(length*width) |
| 150 | 220 | 12 | 322.67 | 12.5 | 0.5 x 2 |
| 225 | 220 | 12 | 215.11 | 18.8 | 0.5 x 3 |
| 300 | 220 | 12 | 161.33 | 25.0 | 0.5 x 4 |
| 375 | 220 | 12 | 129.07 | 31.3 | 0.5 x 5 |
| 450 | 220 | 12 | 107.56 | 37.5 | 0.5 x 6 |
| 525 | 220 | 12 | 92.19 | 43.8 | 0.5 x 7 |
| 600 | 220 | 12 | 80.67 | 50.0 | 0.5 x 8 |
| 725 | 220 | 12 | 66.67 | 60.4 | 0.5 x 10 |
| 900 | 220 | 12 | 53.78 | 75.0 | 0.5 x 12 |
| 1050 | 220 | 12 | 46.1 | 87.5 | 0.5 x 14 |
| 1200 | 220 | 12 | 40.33 | 100.0 | 0.5 x 16 |
| 1350 | 220 | 12 | 35.85 | 112.5 | 0.5 x 18 |
| 1500 | 220 | 12 | 32.27 | 125.0 | 0.5 x 20 |
Minco Tiles Heating Mats combine the highest comfort level with maximum energy efficiency. It's a proven technology that's safe, reliable and energy efficient.
Safe:High efficient and convient heating system.
Automatism: Heating system can automatically(by thermostat) measure the heating requirement, and timely adjust the temperature.
Economical: The cost of installation and operation is relatively low; our heating system can efficiently avoid damage and save maintain fees.
Eco-friendly: Our heating system use the cleanest and most efficient power which are popular between customers.
Warranty: 10 years
Applications

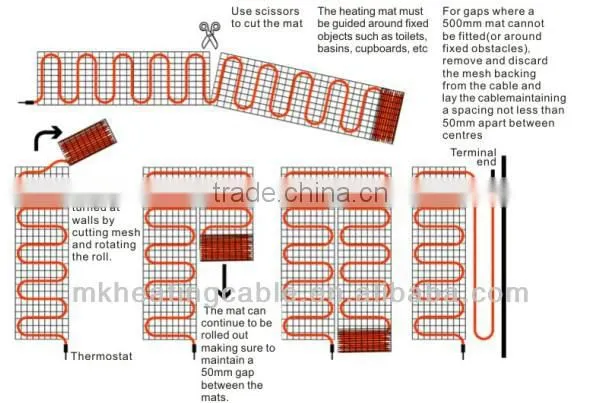

Installation
2) Well installation can guarantee the efficiency.
3) After the installation, take a full test and make sure the system works well.
5)The junction box should be sealed to prevent water leak.
6) Protective sleeve must not be damaged during installation, and the core wire can not bare.
