Specifications
P12 full color module RGB 360 degrees led display>energy saving
>super brightness
>CE, RoHS
>good service
P12 full color module RGB 360 degrees led display
Firstly,let me give you a brief introduction about my company,We CCY which specialize in indoor and outdoor fullcolor led display and other Peripheral LED product with 8 years,now our factory was 15000sqm. has 5 floors, 5floor is office, 4 floor is for led tube encapsulation,and 1-3 floor for assembling and test.we are one of 5 biggest factory of encapsolution in shenzhen China, we have been adpoting the 12 full automatic die boonders of Japanese's Panasonic equipment to producing our led tube,6 the USA modern AMS DIP machines, 3 big SMT machines(import from Korea Sunsung), 2 Juki high temperature wave-soldering machine, and 1 RF-H880 Reflow Soldering Machine.4 red rays QC machine,Auto silicon sealing machine,even-power mask putting machine,all of which makes sure that we have a production capacity of 5000sqm per month of good quality and delivery time was we promised.

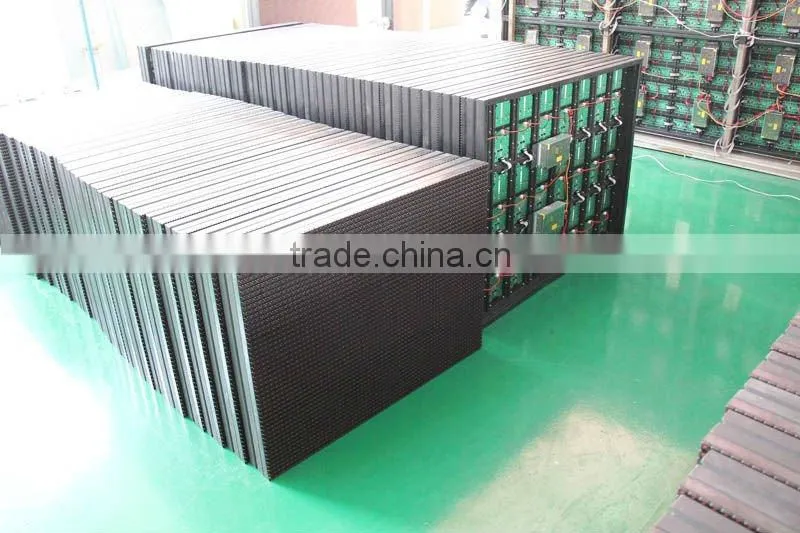

Parameters and module
1. Pixel Pitch 12 mm
2. Density per sqm 6944 pixels
3. Pixel configuration:2R1G1B or 1R1G1B
4. LED package DIP 346
5. Module resolution 16 dots*16 dots
6. Module size 192 mm*192 mm
7. Cabinet size 1152 mm*768 mm *145mm or 960mm*960mm*145mm
8. Whiteness brightness ≥6000
9. Grey Scale/Color: Display colors≥16.7m
10. Best Viewing Distance 10m~80m
11. Driving method: static constant current , 1/4 Scan or 1/2 scan Constant Current,
12. View Angle (H) 140°(V)/ 55°
13. Frame frequency 60 Hz
14. Refresh Rate 450 Hz
15. Max power 700W/sqm
16. Average power 220-260W/sqm
17. Protection classification IP65 front / IP54 rear
18. Cabinet Weight about 35 Kg
19. Install mode Wall mount, hung and stand structure
20. Cabinet Material Iron/Aluminum
21. Working voltage AC 110~220v/±10%

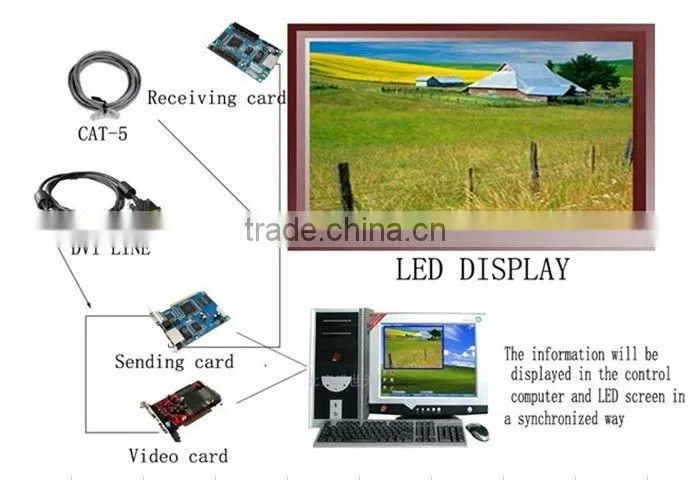

22. Control method: Synchronization
23. Malfunction dot rate Less than 0.0001
24. Working temperature -20~60°C
25. Working Humidity 10~95%
26. Lifetime 100,000 hours
27. MTBF ≥ 10000 hours
28. Whole display flatness: less than 1mm juncture
29. Transmission distance LAN cable ≤ 100m, optic fiber transmission: MMF ≤500m, SMF ≤15km
Cabinet
Connection constructre
Certifications
